Self-adhesive labelling system for bottles

Enhance your bottling line with a versatile labelling system that supports medium-volume production, ensuring precise orientation and automated adjustments for optimal packaging efficiency.

Applies and Aligns Labels Efficiently

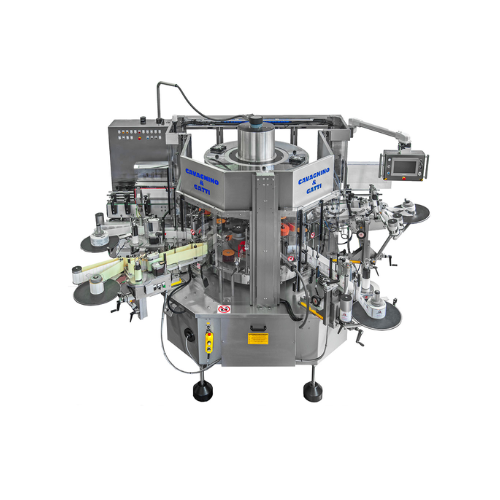

The CG T-TL-CLR-E Series from Cavagnino e Gatti presents a versatile solution for medium-volume production lines, specializing in rotary labelling with optional self-adhesive and wet glue units. Designed for diverse sectors—food, beverages, cosmetics—the machine seamlessly integrates into existing setups, enhancing efficiency in labelling operations for products like wine, beer, and cosmetics bottles. Capable of labelling between 2,000 and 8,000 pieces per hour, it features electronic control for precision and minimal maintenance needs. Its compact design includes an integrated electrical cabinet and a user-friendly touch-screen panel, streamlining operation and adjustments. Options for customization and automation, such as multi-format star wheels and automatic axis adjustments, ensure adaptability to various container shapes and production demands.

Benefits

  • Enhances production efficiency with a high throughput of up to 8,000 bottles per hour.
  • Reduces maintenance frequency with robust mechanical and electronic components.
  • Adapts easily to various product types, minimizing downtime during changeovers.
  • Integrates seamlessly into existing packaging lines with compact, user-friendly design.
  • Ensures precise labelling, improving product presentation and alignment reliability.

General


Applications
Vinegar,Water,Wine,Oil,Spirits,Chemical products,Cosmetics,Food containers,Juices,Soft drinks,Beer
End products
Cola bottles,Olive oil bottles,Mineral water bottles,Cleaning solution bottles,Balsamic vinegar bottles,Glass food jars,Orange juice bottles,Whiskey bottles,Craft beer bottles,Red wine bottles,Shampoo bottles
Steps before
Bottling preparation,Bottle cleaning,Cap application
Steps after
Packing,Product storage,Quality inspection
Input ingredients
bottles,containers,cylindrical bottles,capsules,soft drinks,wine,spirits,beer,oil,vinegar,water,juices,food containers,chemical products,cosmetics
Output ingredients
labeled bottles,labeled containers,labeled cylindrical bottles,oriented capsules,applied labels
Market info
Cavagnino & Gatti is renowned for designing and manufacturing high-performance labeling and packaging machines, specializing in providing tailored solutions for diverse industries with a reputation for innovation, quality, and reliability.

Technical Specifications


Speed
2,000 to 8,000 b/h
Label Distribution Unit Speed (RPS)
Max. 3,000 b/h,up to 25 m/min
Label Distribution Unit Speed (XPSP)
Max. 8,000 b/h,up to 40 m/min
Automation
Touch-screen panel with PLC management
Integration Capability
Wet glue labelling units
Orientation Type
Optical or mechanical orientation
Bottle Handling
Bottle platforms with double-profile cam in oil bath or MP electronic control
Bottle Format Compatibility
Cylindrical bottles of variable diameter
Label Application Type
Self-adhesive
Production Volume
Medium

Operating Characteristics


Working mechanism
Rotary technology
Production rate
2,000 to 8,000 b/h
Automation level
PLC-controlled,touch-screen interface
Versatility
Usable across various sectors
Label distribution control
Advanced electronics and mechanics
Maintenance requirement
Low due to sturdy mechanics
Integrated steps
Labeling,orientation,axis adjustment
Tolerance to heavy duty use
Suitable for heavy duty
Compactness
Integrated electrical cabinet,pivoting arm
Modularity
Can be combined with wet glue labelling units

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Not specified
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High corrosion resistance
Density/particle size
Various,based on container

Product type Characteristics


Container shape adaptability
Multi-format cylindrical bottles
Container material
Glass / PET
Labeling type
Self-adhesive / Wet glue
Sectors of use
Wine,Spirits,Beer,Oil,Vinegar,Soft Drinks
Production volume
Medium volume (2,000 - 8,000 b/h)

Physical Characteristics


Machine footprint
Compact design
Control panel type
Touch-screen panel on pivoting arm
Discharge method
Bottle platforms handling system
Multi-format adaptability
Inlet and outlet star wheels adaptable to cylindrical bottles of variable diameter
Label distribution units
Self-adhesive labelling units

Custom Options


Control panel type
Touch-screen panel on pivoting arm
Integration possibilities
Can be integrated with RPS or XPSP labelling units
Compact footprint
Integrated electrical cabinet
Bottle handling system
Bottle platforms with double-profile cam in oil bath or MP electronic control
Multi-format adaptability
Multi-format inlet and outlet star wheels
Automation package
PLC management with touch-screen interface
Automatic adjustment capabilities
Automatic adjustment of self-adhesive labelling unit axes,up to 2 axes
Orientation options
Optical or mechanical orientation for capsules,UV spots,etc.
Labelling options
Additional wet glue labelling units
