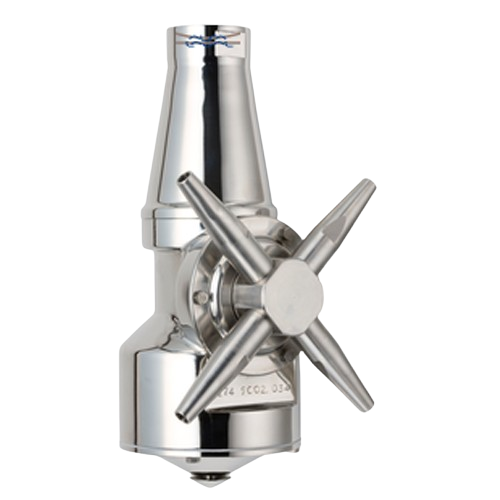

Rotary jet head for hygienic tank cleaning

Ensure efficient, hygienic cleaning with a rotary jet head designed to optimize tank cleaning processes, reducing water and chemical usage while maintaining high sanitary standards.

Cleans Tanks with High-Impact Rotary Jets

The Alfa Laval T/TZ Rotary Jet Head Tank Cleaning Machines offer a robust hygienic solution for versatile applications. Utilizing high-impact jet technology, they provide complete 360° tank cleaning coverage crucial for sectors ranging from food and dairy to offshore and petrochemicals. This dynamic cleaning system features a preprogrammed, geared rotation that achieves dense cleaning patterns with minimal water use. Capable of operating efficiently under low pressure, the T/TZ series results in reduced energy consumption and chemical use, aligning with sustainability goals. Constructed from fully traceable, non-reactive materials compliant with stringent regulatory standards, these machines ensure product safety and quality in demanding environments. Options for stainless steel construction enhance durability, making them suitable for varied operational conditions. Employing Alfacheck’s validation system, these machines facilitate consistent cleaning performance aligned with GMP standards, while their self-cleaning design promotes ease of maintenance and reduces downtime. Configurable to meet specific operational requirements, the T/TZ series integrates seamlessly into your CIP systems, providing reliable and environmentally responsible cleaning solutions.

Benefits

  • Enhances productivity by completing tank cleaning 60% faster, allowing more time for production.
  • Saves up to 70% on cleaning costs through reduced water and chemical usage.
  • Ensures hygienic safety with consistent, high-impact cleaning performance and CIP validation.
  • Supports sustainability goals by minimizing resource consumption and environmental impact.
  • Versatile design accommodates a wide range of tank sizes and applications across various industries.

General


Applications
Food,Chemical processing,Home care,Marine,Biotechnology,Personal care,Sanitary,Beverage,Biopharmaceuticals,Petrochemicals,Offshore industry,Dairy,Pharmaceuticals
End products
Cheese,Enzymes,Surfactants,Soft drinks,Crude oil,Beer,Mud oil,Pharmaceutical tablets,Orange juice,Lotions,Yogurt,Disinfectants,Vaccines,Milk,Shampoos,Solvents,Soaps,Cleaning agents,Paraffin
Steps before
Storage,Transportation,Processing
Steps after
Quality Assurance,Validation,Waste Reduction
Input ingredients
cleaning fluid,water,acid,caustic,grease
Output ingredients
clean tanks,reduced water consumption,hygienic conditions
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Jet Pattern Coverage
360°
Operating Pressure
5–8 bar
Minimal Pressure Loss
Less than 0.3 bar
Material
Stainless steel,FDA compliant non-metallic parts
Compliance
EC No. 1935/2004,USP Class VI
Cleaning Method
CIP
Nozzle Configuration
Four nozzle rotary jet head
Rotation Type
Geared rotation around vertical and horizontal axes
Cycle Completion
8 cycles for full pattern
Size Availability
Various sizes

Operating Characteristics


Cleaning pattern
360° coverage
Cleaning cycle validation
Rotacheck system
Impact force
High-impact jet
Pressure range
0.3 to 8 bar
Automation level
Automatic
CIP/SIP
Complies with GMP
Energy efficiency
Less water,energy,and cleaning agents

Material Compatibility


Cleanability
High
Abrasion resistance
Yes
Food Grade Materials
Stainless Steel
Traceability
EC No. 1935/2004


Good Manufacturing Practice (GMP)
Compliant
FDA Materials
21 CFR § 174
EC No. 1935/2004
Traceable
EN10204
3.1 Certificates Available

Physical Characteristics


Jet head size
Various sizes
Coverage pattern
360° repeatable cleaning pattern
Material composition
Stainless steel
Temperature range
Recommended operating pressure
Operating pressure
0.3-8 bar
Cleaning cycle pattern
Dense pattern after eight cycles
Nozzle type
Four nozzle rotary jet head
Self-cleaning
Yes
Self-draining
Yes
Certification compliance
EC No. 1935/2004,FDA 21CFR § 174,USP Class VI
Traceability
Fully traceable stainless steel materials

Custom Options


Size Configuration
Various sizes available
Jet Head Configuration
Different configurations available
Material Certification
Stainless steel,fully traceable,EC No. 1935/2004 compliant
Non-metallic Part Compliance
FDA 21CFR § 174 and USP Class VI
Certification Availability
3.1 certificates upon request
