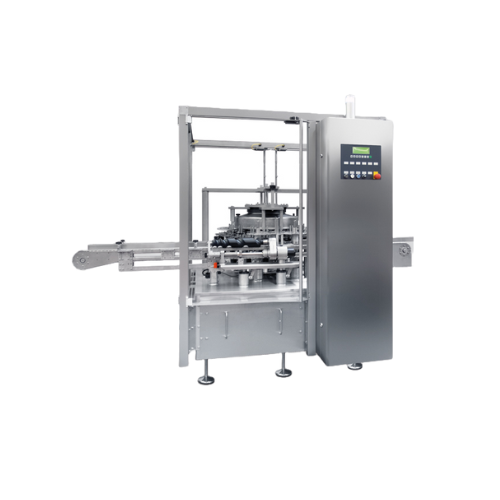

Rotary continuous motion bottle cleaning solution

Ensure pristine product integrity by effectively eliminating particles and impurities from glass and plastic containers, providing an essential cleaning stage before filling operations in high-speed production environments.

Blows, Cleans, and Deionises Bottles

The MS series from CAM offers a rotary continuous motion bottle cleaning solution specifically designed to meet the needs of pharmaceutical manufacturers, beverage producers, and packaging companies. Utilizing a high-speed blowing and suction mechanism, this machine effectively cleans glass and plastic containers by removing particles and impurities with precision. The bottles, aligned by timing scrolls and gripped mechanically, are inverted as they pass through the system, allowing high-pressure nozzles to clean their interiors thoroughly. An integrated deionising system neutralizes static charges, ensuring optimal cleanliness.

Capable of processing up to 30,000 bottles per hour, the MS series supports a variety of end-products, including glass medicine vials, juice bottles, and condiment jars. Compact in design, these machines facilitate seamless integration into existing production lines, complementing upstream filling systems. Their straightforward construction allows for easy inspection and maintenance, while optional stainless-steel construction enhances durability and corrosion resistance. Fully compliant with industry standards, the MS series delivers consistent performance in diverse environments.

Benefits

  • Enhances production efficiency by processing up to 30,000 bottles per hour.
  • Ensures high cleanliness standards with effective particle and impurity removal.
  • Integrates seamlessly into existing filling lines, minimizing setup time.
  • Reduces maintenance efforts due to a compact and straightforward design.
  • Complies with industry cleanliness standards, supporting pharmaceutical and food safety requirements.

General


Applications
Food packaging,Glass containers,Plastic containers,Beverage industry,Pharmaceuticals
End products
Essential oil bottles,Spice jars,Plastic pill bottles,Soda bottles,Condiment bottles,Vitamin containers,Glass medicine vials,Juice bottles,Milk bottles
Steps before
Filling system preparation,Container purification,Initial particle inspection
Steps after
Bottle filling,Capping,Labeling,Final packaging
Input ingredients
glass containers,plastic containers,bottles,external packaging materials
Output ingredients
clean bottles,clean glass containers,clean plastic containers,particles,impurities
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Production Speed
Up to 30,000 bottles/hour
Automation
Rotary continuous motion
Pressure
4 atms
Particle Removal
PALL filtering at 0.2 microns
Air Deionising System
Optional

Operating Characteristics


Air Pressure Level
4 atm
Air Filtration
PALL filtering at 0.2 microns
Blowing/Suction System
Integrated
Bottle Cleaning Process
Rotary,continuous motion
Deionising System
Optional for plastic bottles
Production Speed
Up to 30,000 bottles/hour
Compact Design
Extremely compact dimensions
Cleaning and Inspection
Easy

Product type Characteristics


Container type
Glass / Plastic
Cleanliness standard
High standard

Physical Characteristics


Machine footprint
Extremely compact dimensions
Discharge method
Blowing/suction system
Nozzle type
Blowing nozzles with air deionising system

Custom Options


Blowing nozzle configuration
Multiple nozzles
Production speed
Up to 30,000 bottles/hour
Air deionising system
Optional installation
Suction device adjustment
Centered on bottle necks
Compact design
Yes
