Robotic production line for gummies and nutraceuticals

Streamline your gummy and nutraceutical production with a versatile, fully-integrated system that minimizes operator requirements while ensuring synchronized component adjustments for optimal output.

Automates Gummy and Jelly Production Processes

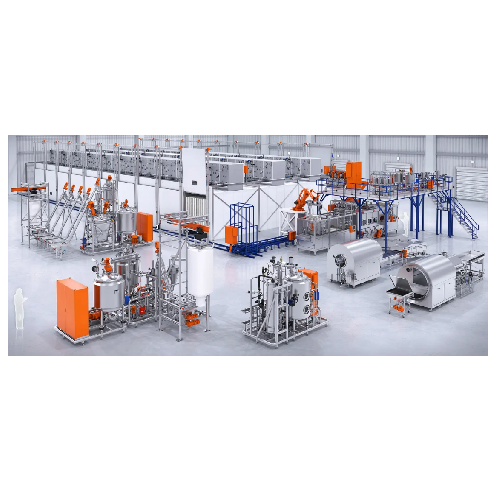

The 800 Robotic from Tanis is a fully-integrated production line designed for manufacturers in the confectionery, nutraceutical, and cannabis candy industries. This system excels in automating the entire gummy and jelly production process, including blending, moulding, filling, and demoulding, while ensuring precision with a robotic tray transportation and positioning system. Capable of processing between 2,000 to 3,000 kg per hour, this production line reduces labor requirements with just three operators needed. The recipe-driven system automatically adjusts components for optimal synchronization, enhancing operational efficiency. The Single Deck Additive Blending System ensures precise ingredient incorporation, while the oiling machine polishes products to prevent sticking. Configurable kitchen layouts allow seamless integration into existing spaces, and the system supports various product types, from liquid vitamin gummies to solid probiotic jellies. With features like energy optimization and easy maintenance, the 800 Robotic allows customization tailored to specific production needs.

Benefits

  • Increases efficiency by automating end-to-end gummy and jelly production.
  • Reduces labor costs with a system requiring only three operators.
  • Enhances product consistency and quality with recipe-driven automation.
  • Offers flexible integration with customizable kitchen configurations.
  • Ensures smooth tray handling and reduced product defects with robotic transportation and positioning.

General


Applications
Jellies,Nutraceuticals,Gummies
End products
Gummy bears,Vitamin gummies,Probiotic gummies,Cbd gummies,Fruit jellies,Omega-3 jellies
Steps before
Ingredient preparation,Raw material weighing,Pre-mixing
Steps after
Cooling,Quality control,Packaging
Input ingredients
sugar mass,color,flavoring,acid,optional functional ingredients
Output ingredients
gummies,jellies,nutraceuticals
Market info
Tanis Confectionery is renowned for designing and manufacturing customized equipment for the production of confectionery. They are experts in tailor-made solutions, emphasizing innovative processes and high-quality machinery tailored to meet specific client needs in the confectionery industry.

Technical Specifications


Capacity
2000–3000 kg/h
Automation
Fully-integrated automatic
Operator Requirement
3 operators
Automation Level
Recipe driven with Automated Track System (ATS)
Demoulding System
Servo driven single tray transportation
Moulding System
Servo driven single tray transportation
Starch Handling
Starch filling and printing
Blending System
Additive Blending System (ABS)
Oiling System
Specifically designed for polishing and anti-stick
Configuration Options
Various kitchen configurations

Operating Characteristics


Automation level
Recipe-driven,automated adjustments
Integrated steps
Starch filling,demoulding,polishing
Operator requirement
3 operators
Production capacity
2000 – 3000 kg per hour
Versatility
High (gummies,jellies,nutraceuticals)
Space adaptability
Various kitchen configurations

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Customizable to fit space
Tank system
Single Deck ABS (SDA) skid
Control panel type
Automated with ATS
Component integration
Fully-integrated automatic line
Tray transport
Servo driven
Discharge method
Automated Track System (ATS)

Custom Options


Control panel type
Recipe-driven automation
Integration possibilities
Automated Track System (ATS)
Space configuration
Various kitchen configuration options
