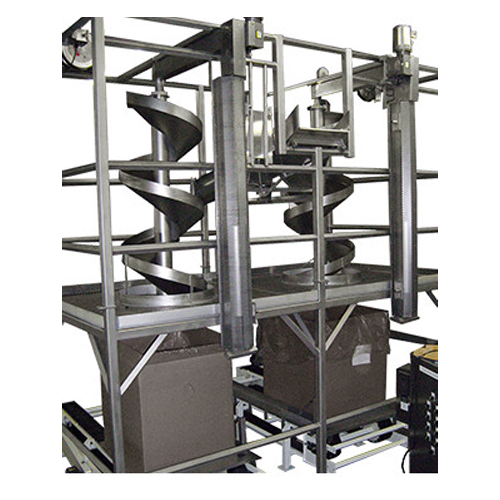

Retractable spiral chute for bulk material handling

Enhance the integrity of your products by gently transferring bulk materials with minimal drop heights, reducing damage and maintaining high-quality appearance during filling and packaging operations.

Minimizes Damage and Enhances Product Appearance

The Retractable Smooth-Flo Spiral Chute from AC Horn Manufacturing is engineered specifically for food processing companies and snack manufacturers seeking to minimize product damage during transfer and packing operations. This innovative equipment gently fills bulk totes by lowering the chute into a pre-positioned container and incrementally retracting as it fills. With precise product-level sensors and programmed gradual lift, it ensures a delicate transition, reducing drop height and preserving the integrity and appearance of delicate items like butter toffee popcorn, coated nuts, and almond butter. Ideal for continuous or semi-automatic operations, this spiral chute can be seamlessly integrated with existing conveyor systems to enhance productivity and quality control. Engineered for durability and efficiency, the chute supports a variety of applications in industries such as snack manufacturing, nut processing, and popcorn production. Designed with food-grade materials, it maintains high standards of hygiene and is easily maintained, ensuring long-term operational reliability.

Benefits

  • Minimizes product damage by limiting drop heights to a few inches.
  • Enhances product appearance, maintaining quality standards.
  • Increases operational efficiency with seamless integration into existing systems.
  • Reduces labor intervention with automated filling and retracting mechanism.
  • Supports diverse applications in food processing and snack manufacturing industries.

General


Applications
Japanese peanuts,Coated nuts,Roasted nuts,Pellets,Nut butter,Chips,Corn tortillas,Blanched peanuts,Popcorn
End products
Wasabi peanuts,Salted roasted almonds,Skinned peanuts,Wood pellets,Whole wheat tortillas,Almond butter,Nacho cheese flavored chips,Dark chocolate covered almonds,Butter toffee popcorn
Steps before
Conveying,Product Transfer
Steps after
Bulk Tote Filling,Packing
Input ingredients
popcorn,roasted nuts,coated nuts,blanched peanuts,Japanese peanuts,corn tortillas,chips,pellets,nut butter
Output ingredients
bulk totes with improved product appearance,filled containers,undamaged products
Market info
AC Horn Manufacturing is renowned for its expertise in manufacturing industrial equipment for food processing, particularly in nut processing, popping equipment, and material handling systems, known for high-quality engineering and reliable performance in demanding industrial applications.

Technical Specifications


Automation
Sensor-controlled
Product Drop Height
Few inches
Spiral Rise Speed
Gradual lift
Capacity
For bulk tote filling

Operating Characteristics


Working mechanism
Retractable Spiral
Integrated steps
Infeed Chute,Smooth-Flo Chute
Batch vs continuous operation
Batch
Automation level
Sensor-controlled
Product damage reduction
By design and controlled drop

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food grade materials
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Various bulk material densities

Physical Characteristics


Machine footprint
Compact design
Cone shape
Spiral
Feed method
Infeed chute
Discharge method
Retractable spiral
Control panel type
Sensor-controlled lift

Custom Options


Control panel type
PLC control
Discharge method
Smooth-Flo transition
Integration possibilities
Compatible with existing conveyor systems
Custom size options
Available for specific tote dimensions
Material options
Stainless steel or food-grade materials
Sensor integration
Product level sensor
Speed control
Adjustable speed of spiral lift
