Retention time barrel for feed pelleting
Enhance your feed processing efficiency with a specialized retention time barrel, ensuring optimal steam absorption and temperature control for superior pellet quality before reaching the pellet mill or extruder.
Enhances Steam Absorption and Thermal Treatment

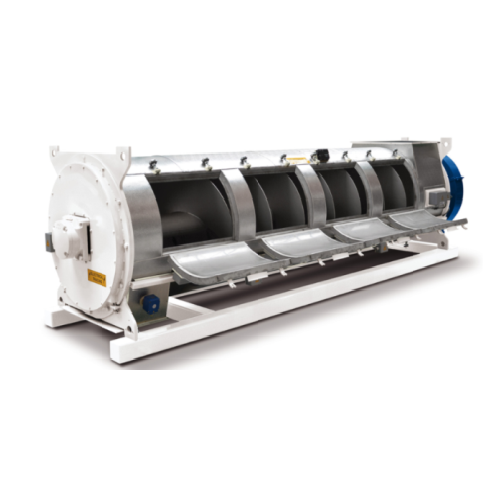

The Retention Time Barrel (RTB) from Ottevanger Milling Engineers is a key component in optimizing your feed processing operation. This equipment ensures that after steam is homogeneously mixed in a conditioner, the product undergoes thorough thermal treatment. It enables a first-in/first-out retention approach, allowing consistent temperature maintenance essential for pelleting, extruding, or cooling processes. The RTB caters to various industries, handling compound feeds, pet food, aquaculture feed, and grain processing with ease. It significantly boosts pelleting capacity by up to 15% due to enhanced steam absorption. Equipped with features such as direct drive or timing belt transmission, insulated design, and adjustable electric heating, the RTB ensures minimal condensation and bacterial growth. Materially, it is constructed with AISI 304 components for durability and reliability. The Retention Time Barrel seamlessly integrates into your production line, offering options for customization in retention time and capacity, complemented by straightforward cleaning access and robust engineering support.
Benefits
- Boosts pelleting efficiency by up to 15% through enhanced steam absorption.
- Maintains consistent product temperature to improve end-product quality.
- Minimizes bacterial growth, ensuring higher hygiene standards.
- Simple, easy-to-clean design reduces maintenance time and effort.
- Reduces condensation to maintain optimal operational conditions.
- Applications
- Handling,Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Grain storage,Compound feed
- End products
- Bulk grain storage packs,Sunflower oil,Poultry premix,Dog kibble,Soy meal,Granulated grains,Rapeseed meal,Shrimp feed,Mineral concentrates,Crushed soybeans,Fish pellets,Cat biscuits,Cattle feed pellets,Soybean oil,Vitamin premixes
- Steps before
- Homogeneous mixing,Steam conditioning
- Steps after
- Pelleting,Extrusion,Meal cooling
- Input ingredients
- steam,conditioner mixture
- Output ingredients
- pellet mill feed,extruder feed,meal cooler feed
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Capacity
- 6–20 t/h
- Motor Power
- 2.04–2.99 KW
- Temperature Range
- 30–110 °C
- Material
- AISI 304
- Insulation
- Rock-wool
- Working mechanism
- Heated and insulated barrel
- Batch vs. continuous operation
- Continuous operation
- Automation level
- PLC-controlled
- Cleaning method
- Easy to clean
- Temperature Maintenance
- Electric heating system with adjustable thermostat 30-110 °C
- Inspection access
- Large inspection doors with safety switch
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Footprint
- Varies based on model size
- Barrel Shape
- Cylindrical
- Feed Method
- Direct drive or timing belt transmission
- Discharge Method
- First-in/first-out
- Material
- AISI 304 Stainless Steel
- Inspection Doors
- Large with safety switch
- Shaft
- Solid shaft with large flight and inclined pitch
- Insulation
- Rock-wool
- Shaft Sealing Type
- Stuffing box sealings
- Drive System
- Direct drive / Timing belt transmission
- Temperature Control
- Adjustable thermostat 30-110 °C
- Heating System
- Electric heating system
- Material
- AISI 304
- Insulation Material
- Rock-wool
- Inspection Features
- Large inspection doors with safety switch
- Frequency Control
- Suitable for frequency control
