Remote control software for laboratory flow reactors

Streamline your laboratory experiments with a system that provides seamless remote control and precise management of flow chemistry reactors, enhancing automation and accuracy in real-time chemical processes.

Controls and Automates Flow Chemistry Reactions

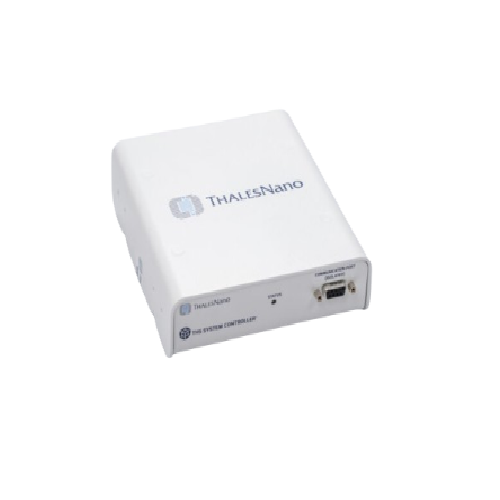

The THS System Controller and ReAction Software from ThalesNano offer an advanced solution for laboratory automation and precision in the chemical and pharmaceutical sectors. This system facilitates seamless remote control and monitoring of flow chemistry reactors, integrating various modules such as reactors, hydrogen generators, and HPLC pumps for comprehensive process management. The software allows for individual parameter control, supporting diverse reaction types including hydrogenation, carbonylation, and photochemistry, making it ideal for producing active pharmaceutical ingredients, specialty chemicals, and other end-products. Compatible with existing lab setups, it provides real-time data logging and safety management features, including automated shutdowns and parameter adjustments. Designed for continuous and automated operations, the system supports both bench-top and remote control, enhancing operational efficiency and experimental reproducibility across multiple industries, including pharmaceutical, chemical, and biotech.

Benefits

  • Enhances experimental precision by enabling remote control and real-time monitoring.
  • Increases research efficiency with automated parameter adjustments and data logging.
  • Expands lab capabilities through integration with third-party modules.
  • Improves safety with automatic emergency shutdown and process control features.
  • Facilitates reproducible results with customizable reaction parameters and sequences.

General


Applications
Hydrogenation,Fine chemicals,Laboratory equipment,Photochemistry,Carbonylation,Biopharmaceuticals,Chemical reactions,High-temperature reactions,Oxidation,Deuteration,Pharmaceuticals
End products
Pharmaceutical intermediates,Specialty chemicals,Carbonylated polymers,Active pharmaceutical ingredients (apis),Isotopically labeled compounds,Monoclonal antibodies,Uv-cured coatings,Hydrogenated oils,High-performance polymers,Flavor and fragrance compounds,Oxidized alcohols
Steps before
Setup of laboratory flow chemistry reactor modules,Equipment calibration,Reactant preparation
Steps after
Data logging and analysis,Parameter adjustment for optimization,Experimental data reporting
Input ingredients
hydrogen,carbon monoxide,oxygen,syngas,water,solvents,various gases,reactants
Output ingredients
hydrogen gas,reaction products,processed chemicals
Market info
Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.

Technical Specifications


Temperature Range
Room temperature to 450 °C
Pressure Range
Atmospheric pressure to 100/200 bar
Hydrogen Purity
4.0
Hydrogen Pressure
Up to 100 bar
Hydrogen Flow Rate
1 NL/min
HPLC Pump Capacity
10 mL/min or 50 mL/min
Gas Handling Capacity
Up to 14 different gases at 100 bar
Automation Mode
Automated Operation Mode

Operating Characteristics


Remote control capability
Yes
Third-party module integration
Custom request
Individual reaction parameter control
Temperature,Pressure,Flow Rates
Automation level
Automated operation mode
Real-time monitoring
Yes
Data logging
Comprehensive,time-stamped
Emergency shutdown protocols
Yes
Temperature regulation
Based on applied pressure
Safety features
Automatic process control

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Thermal resistance
Up to 450°C
Pressure resistance
Up to 200 bar
Gas compatibility
Hydrogen,carbon monoxide,oxygen,syngas
Reactor material
PTFE,stainless steel,Hastelloy

Physical Characteristics


Compact footprint
Yes
Control panel type
User-friendly software interface
Temperature Range
Room temperature to 450 °C
Pressure Range
Atmospheric pressure to 100/200 bar
Reactor Type Compatibility
PTFE,Stainless Steel,Hastelloy
Gas Handling Capability
14 different gases at up to 100 bar
Systems Integration
Supports third-party modules
Safety Features
Emergency shutdown protocols
Module Type
Phoenix Flow Reactor,H-Genie,Gas Module

Custom Options


Integration possibilities
Third-party module integration
Control panel or HMI type
PC application interface
Reaction parameter control
Temperature,pressure,flow rate customization
Automation mode
Automated operation mode available
