Radial flow scrubber for industrial gas cleaning

Optimize your gas cleaning process with a radial flow scrubber capable of handling high temperatures and removing critical substances, ensuring high efficiency in emission control and purity of end-products.

Cleans and Cools Industrial Gases

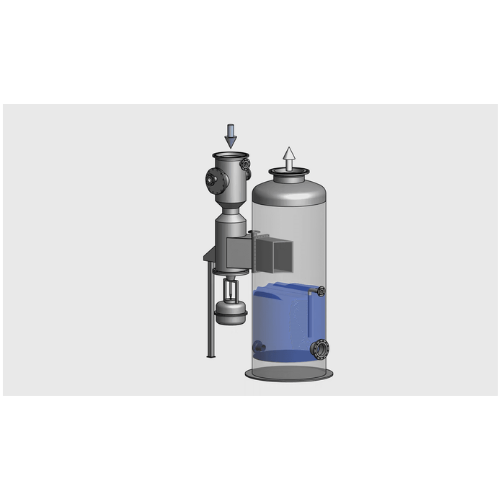

The Radial Flow Scrubber, a sophisticated offering for emission control and gas processing, is engineered to meet the rigorous standards of industries like non-ferrous metallurgical, chemical, and environmental engineering. Its design features variable adjustment of the scrubbing zone, which, combined with automatic gas pressure drop control, ensures constant scrubbing efficiency. Capable of handling raw gas temperatures up to 800°C, it utilizes a combination of materials and brick lining to withstand harsh conditions. In various processes, it effectively removes impurities, such as sulfuric acid mist and heavy metals like lead, arsenic, and selenium, while condensing aerosols. With an adaptable scrubbing zone, the Radial Flow Scrubber can maintain differential pressure even with fluctuating gas volumes, optimizing energy usage and maintaining effective separation under diverse operational conditions. The system is ideal for both batch and continuous operations, offering enhanced customization and integration capabilities to suit specific production requirements.

Benefits

  • Achieves high removal efficiencies with minimized energy consumption through adjustable scrubbing zones.
  • Adapts seamlessly to varying gas volumes, maintaining stable collection efficiency and reducing operational variability.
  • Withstands extreme temperatures and corrosive substances, ensuring durability and reliability in demanding environments.
  • Reduces environmental impact by effectively eliminating hazardous emissions such as aerosols and heavy metals.
  • Offers flexible integration into existing systems, enhancing process efficiency and lowering retrofitting costs.

General


Applications
Chemical processing,Non-ferrous metallurgical industry,Gas cleaning,Gas cooling,Emission control
End products
Arsenic (as) extraction,Acid mist removal,Lead (pb) removal,Selenium (se) refinement,Aerosol condensation,Sulfuric acid
Steps before
Raw gas collection,Gas pre-dedusting,Gas saturation
Steps after
Droplet separation,Gas cooling,Gas cleaning
Input ingredients
raw gas,critical substances,As,Se,Pb,gas with solid impurities,aerosols
Output ingredients
clean gas,collected impurities,gas with reduced temperature,condensed aerosols
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Gas Inlet Temperature
Up to 800 °C
Pressure Differential
Variable,optimized for efficiency
Collecting Efficiency
High,adjustable as required
Scrubbing Liquid Injection
Central nozzle
Scrubbing Zone Adjustment Ratio
1
Flow Rate Control
Automatic gas pressure drop control
Droplet Separator
Integrated with scrubber zone
Material and Lining
Appropriate materials with brick lining
Operating Modes
Batch processes,non-exclusive
Gas Cooling
Water evaporation
Gas Cleaning
Aerosol condensation,solid impurity removal
Energy Usage
Energy saving design

Operating Characteristics


Working mechanism
Radial flow
Integrated steps
Gas cooling and cleaning
Batch vs. continuous operation
Batch / Adjustable flow
Automation level
Automatic gas pressure drop control
Energy efficiency
High,with energy-saving features
Cleaning method
Automatic
Flow adjustability
Variable adjustment of the scrubbing zone
Emergency systems
Emergency water system

Material Compatibility


Corrosion resistance
Brick lining for high temperatures and acidic gases
Temperature resistance
Up to 800 °C with appropriate materials
Handling of critical substances
As,Se,Pb

Product type Characteristics


Gas cooling
Water evaporation-based
Gas cleaning
Aerosol condensation and impurity removal

Physical Characteristics


Scrubber shape
Radial flow
Scrubber zone adjustment
Variable
Material
Brick lining
Gas inlet configuration
Top or bottom
Accommodation
Multiple scrubbing stages in a single vessel
Working temperature
Up to 800°C
Droplet separator
Integrated in casing

Custom Options


Adjustable flow rate
Yes
Material selection
Brick lining for high temperature
Scrubbing zone adjustment
Variable cross-section
Pressure drop control
Automatic
