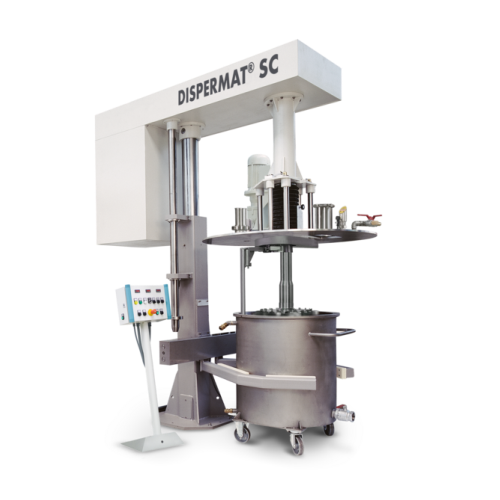

Production dissolver for high-viscosity products

Achieve optimal dispersion and grinding of high-viscosity substances with robust vacuum technology that prevents air inclusions, ensuring uniform product quality across batches.

Disperses and Homogenizes High-Viscosity Products

The DISPERMAT® SCVA6 Vacuum Dissolver by VMA-GETZMANN is engineered to handle high-viscosity materials under vacuum conditions, preventing air inclusions and ensuring product uniformity. Utilizing a robust scraper system, it guarantees efficient dispersion and homogenization, especially for adhesives, coatings, and agrochemicals. Accommodating container sizes up to 2500 liters, this dissolver is suitable for batch and continuous operations. With PLC integration, it offers precise control over speed, torque, and temperature, enhancing process repeatability. The unit is available with optional C-Tech process control and TÜV-certified safety modules. Constructed with durable materials for chemical resistance, it supports quick maintenance with exchangeable scraper arms and features like LED illumination and temperature sensors for optimized monitoring.

Benefits

  • Ensures product consistency by preventing air inclusions in high-viscosity applications.
  • Enhances operational efficiency with adjustable hydraulic height control.
  • Supports diverse industrial needs with customizable process parameters.
  • Provides safety and reliability with TÜV-certified safety systems.
  • Facilitates quick setup and transition for various container sizes.

General


Applications
Chemistry,Ceramics,Microbiology,Printing inks,Agrochemicals,Construction chemistry,Coatings,Cosmetics,Adhesives,Plastics,Varnishes,Pigments,Pharmacy,Paints,Electronics
End products
Flexographic printing ink,Ethylene polymer,Furniture varnish,Automotive topcoat paint,Porcelain tiles,Epoxy resin adhesive,Pvc pipe,Paracetamol formulation,Probiotic culture media,Titanium dioxide pigment,Herbicide concentrate,Lip balm,Anti-corrosive metal coating
Steps before
Pre-mixing,Heating,Material preparation,Weighing and dosing,Raw material inspection
Steps after
Filling,Cooling,Quality Control,Labeling,Packaging
Input ingredients
paints,varnishes,pigments,additives,inks,chemicals,plastics,construction materials,adhesives,pharmacy ingredients,cosmetic ingredients,microbiology samples,agrochemicals,ceramics
Output ingredients
homogeneous dispersions,fines particles,mixed solutions,even coatings,consistent slurries
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
45 – 55 kW
Speed
100 - 985 rpm
Torque
876 - 1069 Nm
Product Capacity
400 - 2000 litres
Container Capacity
500 - 2500 litres
Height Adjustment
Hydraulic
Speed Adjustment
Infinitely variable
Control Technology
CN / C / SC / PLC
Scraper System
Integrated
Vaccum System
Yes
Processing Capability
High-viscosity substances
Covering Features
Product feed system,LED lighting,temperature sensor,level switch

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Height adjustment
Hydraulic
Automation level
Manual / PLC / SCADA
Air incorporation control
Vacuum system
CIP/SIP
Manual / CIP
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
30 - 2500 litres
Material Type
Liquid/Paste
Automation Level
PLC/CN/C/SC


TÜV certification
EN ISO 13849-1

Physical Characteristics


Control panel type
PLC / CN / C / SC
Machine footprint
140 x 400 x 310 cm
Container capacity
500 ‒ 2500 litres
Container clamping range
Ø 80 ‒ 150 cm
Height adjustment
Hydraulic
Weight
4300 kg
Scraper system
Integrated spring pressure

Custom Options


Control panel type
CN / C / SC / PLC
Height adjustment system
Hydraulic
Scraper arm configuration
Exchangeable
Cover options
LED lighting,PT100 sensor,Liquiphant level switch
Stand type
T6 hydraulic stand
Process control options
CN,C,SC,PLC
Software connectivity
USB (Wi-Fi,LAN expected in 2022)
