Pre-formed container filling system for multi-layer products

Efficiently handle a diverse range of products with this flexible carousel system, ideal for creating sophisticated multi-layer desserts and precisely filling both liquid and dry goods, optimizing your production line’s speed and versatility.

Fills and Seals Multi-layer and Liquid Products

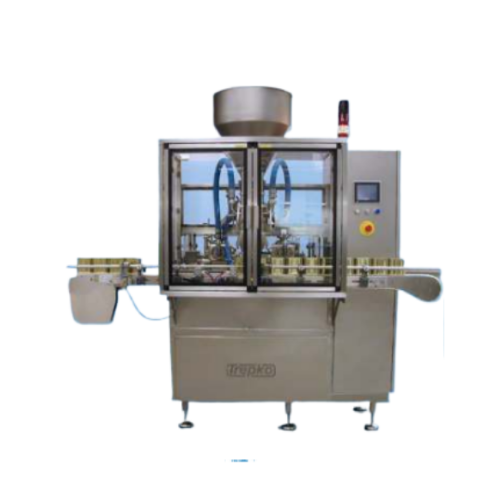

The Trepko 500 Series is a versatile carousel filling and packaging machine tailored for high-speed production in the food and beverage industry. It efficiently handles a range of products, from delicate desserts to liquid and dry products, using a flexible multi-fill system. With the ability to incorporate multiple depositor types, it seamlessly integrates with your production line to create sophisticated multi-layer designs, such as yogurt parfaits and fruit jellies.

Capable of processing up to 5,000 cups per hour, the 500 Series excels in automation with its servo-driven mechanics and PLC control, ensuring reliable and continuous operation. Available customization options, including hygienic features like UV radiation and chemical sterilization, enhance its suitability for demanding packaging requirements. The machine’s robust stainless-steel construction ensures durability and low maintenance, while its CIP/SIP capability facilitates efficient cleaning. Ideal for dairy producers and packaging companies, it combines efficiency with precision, providing engineering support for tailored configurations.

Benefits

  • Enhances production flexibility with customizable multi-fill applications for diverse product types.
  • Minimizes operational downtime with quick and easy changeovers between packaging sizes.
  • Reduces maintenance costs due to robust construction and long-lasting material components.
  • Ensures product integrity with automated hygienic options, including CIP/SIP and sterilization processes.
  • Increases production efficiency by handling up to 5,000 cups per hour with reliable automation.

General


Applications
Multi-layer products,Dry products,Liquid products,Semi-liquid products,Desserts
End products
Powdered milk,Ready-to-eat pudding,Sauces,Milk,Instant drink powders,Whipped cream layered mousse,Salad dressings,Dry spices,Condiments,Fruit jellies,Fruit juice,Trifle desserts,Yogurt parfait
Steps before
Container preparation,Container sterilization
Steps after
Packing,Sealing,Lidding
Input ingredients
pre-formed containers,liquid products,semi-liquid products,dry products,cups,foils
Output ingredients
filled pre-formed containers,multi-layer filled products,desserts,sealed cups,packaged containers
Market info

Technical Specifications


Max. cup Dimensions – round
210 mm
Max. cup Dimensions – rectangular
180×180 mm
Max. cup Depth
120 mm
Max. Output (cups/hr)
2500–5000
Power Supply
3 x 400V + Pe + N
Compressed Air
30–36 m³/h,6 bar
Lanes
12

Operating Characteristics


Working Mechanism
Carousel principle
Automation Level
Automated with modern drives,mechanical and servo technology
Multi-fill Applications
Liquid,semi-liquid,dry,hand placement
Changeover Time
Quick and easy
Batch vs. Continuous Operation
Continuous inline
CIP/SIP
Available for dosing system and packaging area
Cleaning Method
CIP / UV radiation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
Various
Up to 210 mm round,180x180 mm rectangular
Container shape
Round/Rectangular
Multi-layer product capability
Yes
Product type
Liquid,Semi-liquid,Dry
Maximum cup depth
120 mm
Sealing option
Pre cut foil heat seal / Snap-on lid / Foil from reel
Hygienic design
Yes,includes sterile air cabin and UV radiation options
Application speed
Up to 5000 cups/hr
Automation level
Automated with modern servo technology
Sterilization methods
Chemical,UV,CIP/SIP

Physical Characteristics


Machine length
Variable to suit specified product

Custom Options


Multi-fill applications
Liquid,semi-liquid,dry products,hand placement
Machine length
Variable,suits specified product
Depositors
Pre and post-depositors
Packaging changeover
Quick and easy
