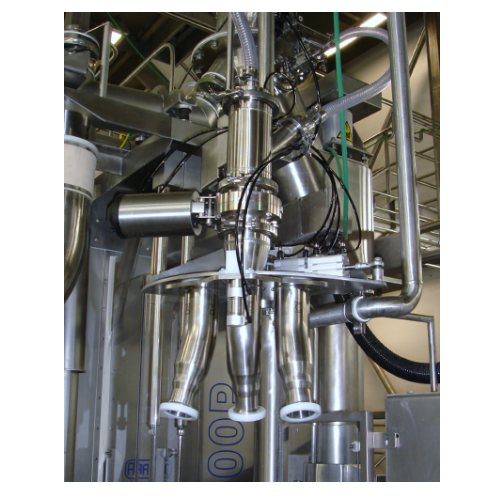

Powder sampler systems for food and dairy plants

Ensure precise quality control by implementing advanced sampling techniques for powders and granules, enhancing both batch and continuous production lines.

Captures and Diverts Powder and Granule Samples

Powder Process-Solutions offers a versatile range of sampling equipment designed to meet the demanding needs of food, dairy, and pharmaceutical industries. The Vacuum Sampler, Auger Sampler, and Plunger Sampler effectively capture and convey precise samples from powder and granule streams, ensuring process conformity and contamination minimization. The Vacuum Sampler uses a programmable PLC/HMI to control sample size and frequency within a sealed environment, suitable for both batch and composite samples. Its automatic purging system and diverter options make it ideal for complex sampling regimens. The Auger Sampler, featuring a mini screw auger and variable speed control, excels in extracting samples from gravity chutes and hoppers. The Plunger Sampler, driven by an air cylinder, accurately retrieves fixed sample volumes from free-flowing materials. Designed for easy integration into existing processing lines, each sampler offers options for automatic or manual operation, with flexible container capabilities catering to diverse testing needs. Compliance with industry standards and customizable sampling configurations ensure these solutions can be tailored to specific production requirements.

Benefits

  • Enhances quality assurance by providing consistent and contamination-free samples.
  • Flexible operation suits both batch and continuous processing environments.
  • Reduces contamination risks with sealed, programmable sampling.
  • Customizable sampling regimens meet diverse production requirements.
  • Integrates seamlessly into existing lines, minimizing installation time.

General


Applications
Pharmaceutical powders,Granules,Specialty powders,Food powders,Dairy powders,Infant nutrition powders,Nutritional powders,Flakes
End products
Instant soup mix,Cocoa powder,Coffee creamer,Gluten-free flour,Baby formula,Electrolyte powder,Calcium supplements,Protein powder,Baking mix,Herbal supplements,Effervescent tablets,Iron supplements,Vitamin c powder,Whey protein
Steps before
Mixing,Blending,Grinding,Milling,Ingredient Weigh Batching,Mechanical Conveying,Pneumatic Conveying
Steps after
Packing,Filling,Dust Collection,System Performance Audits
Input ingredients
powder,granules,flakes,free-flowing powders,nutritional powders,food powders,dairy powders
Output ingredients
sampled product,bags,bottles,jars,large blow molded containers
Market info
PPS (Powder Process-Solutions) is known for designing and manufacturing custom powder handling systems and equipment, specializing in sanitary process solutions for the food, dairy, and nutritional industries, ensuring safety, efficiency, and regulatory compliance.

Technical Specifications


Automation
PLC/HMI controlled
Sample Size Control
Variable by vacuum duration
Sampling Frequency
Programmable
Sample Purge
Between sample takes
Sample Diverter Options
Single,2,and 3 port
Port Sample Control
Independent
Operation Mode
Automatic,manual
Sample Conveying Distance
Up to 20′
Control System
PLC/HMI

Operating Characteristics


Working Mechanism
Vacuum,Plunger Sampling
Automation Level
PLC/HMI Controlled
Sampling Environment
Sealed,Enclosed
Sample Control
Automatic,Manual
Batch vs. Inline Operation
Batch Sampling
Sample Port Options
Single / 2 / 3 Port

Material Compatibility


Biological compatibility
Food-grade materials suitable for food and dairy applications
Cleanability
Designed for easy cleaning to prevent contamination
Corrosive resistance (e.g. acids)
Stainless steel construction for resistance to corrosion
Density/particle size
Versatile for various densities and particle sizes of powders

Product type Characteristics


Sample form
Powder,granules,flakes
Environmental enclosure
Sealed environment

Physical Characteristics


Machine footprint
Customizable
Sample container compatibility
Bags,bottles,jars,large containers
Feed/discharge method
Gravity chute,hopper,vacuum conveyance
Port sample control
Single,2,and 3 port
Operation type
Automatic,manual
Environment
Enclosed sealed

Custom Options


Control panel type
PLC/HMI
Integration possibilities
PLC programming
Sample size control
Adjustable via PLC
Sample frequency control
Programmable
Port options
Single,2,and 3 port diverter
Operation mode
Automatic,manual
