Powder filling and stoppering for antibiotic production

Tackle antibiotic resistance with precision powder filling and stoppering, ensuring accurate doses and seamless integration into your high-speed production line.

Fills and Stopps Pharmaceutical Powders

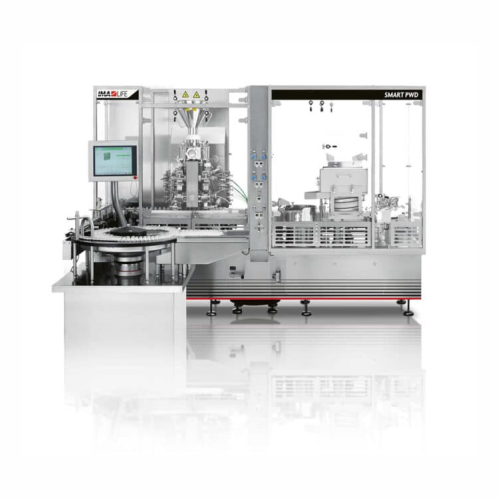

The SMART PWD from IMA Life is a specialized powder filling and stoppering machine designed for the pharmaceutical and biotech industries. It features a vacuum-pressure powder filling system capable of dosing up to two different pharmaceutical powders into a single vial with precision. Its unique capability addresses the manufacturing challenges of handling complex powders like amoxicillin and linezolid. The machine operates at speeds of up to 120 vials per minute in high-speed, continuous operations, ensuring efficient processing and reduced operational downtime. Its integration capabilities include a pick and place stoppering system, possible capping station addition, and suitability for aseptic environments enhanced by its cRABS containment technology. The SMART PWD is engineered for compliance with GMP and supports full integration into processing and packaging departments, equipped with a 100% check-weighing system to ensure dosage accuracy. Maintenance is streamlined with features allowing wet-cleaning in place, minimizing contamination risks and supporting efficient production transitions.

Benefits

  • Ensures precise dosing with 100% check-weighing, reducing product waste and ensuring quality control.
  • Increases production speed up to 120 vials per minute, maximizing operational efficiency.
  • Facilitates handling of multiple complex powders in a single operation, enhancing flexibility in production.
  • Minimizes contamination risks with aseptic-friendly design, adhering to strict GMP standards.
  • Simplifies maintenance with integrated wet-cleaning capability, reducing downtime for cleaning and setup.

General


Applications
Pharmaceutical powders,Antibiotics,Pharmaceutical products
End products
Antibiotic capsules,Antibiotic vials,Cefuroxime axetil powder,Antibiotic syringes,Linezolid powder,Amoxicillin powder
Steps before
Powder preparation,Antibiotic formulation,Aseptic processing setup
Steps after
Stoppering,Capping,Inspection,Packaging
Input ingredients
pharmaceutical powders,antibiotic powders,vials,stoppers
Output ingredients
dosage vials,stoppered vials,processed pharmaceutical products
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Output with 100% IPC
Up to 150 vpm (double index)
Output with 100% IPC
Up to 80 vpm (single index)
Vial diameter
22-54 mm
Vial height
35-115 mm
Stopper diameter
20-33 mm
Filling volume
From 10 mg
Transport system
Intermittent motion
Standard voltage
400 V,50 Hz,3ph + N + G
Installed power
19 kW

Operating Characteristics


Working mechanism
Vacuum-pressure powder filling system
Integrated steps
Filling,stoppering,check-weighing,possible capping
Changeover time
Brushless motor control for adaptable vial sizes
CIP/SIP
Fit for isolation technology with wetting in place
Batch vs. inline operation
Inline continuous
Automation level
Pick,place system with brushless motors

Material Compatibility


Corrosive resistance (e.g. acids)
Yes

Product type Characteristics


Container type
Vials

Physical Characteristics


Vial Diameter
22–54 mm
Vial Height
35–115 mm
Stopper Diameter
20–33 mm
Filling Volume
From 10 mg
Machine Layout
Intermittent motion
Standard Voltage
400 V,50 Hz,3ph + N + G
Installed Power
19 kW
Output with 100% IPC
Up to 150 vpm (double index),Up to 80 vpm (single index)
Stoppering System
Pick,place system with brushless motors
Capping Station
Possible integration
Powder Dosing System
Vacuum-pressure
Isolation Technology
Fit for wetting in place
Powder Containment
cRABS

Custom Options


Integration possibilities
Possible integration of a capping station
Stoppering system
Pick,place stoppering system
Isolation technology compatibility
Fit for isolation technology with possibility of wetting in place
Powder containment feature
cRABS for powder containment
