Pod production system for filter paper pods

Streamline your pod production with a high-speed solution that ensures precise weight control and efficient packaging, optimizing throughput for coffee and tea pod manufacturers.

Produces and Packages Coffee and Tea Pods

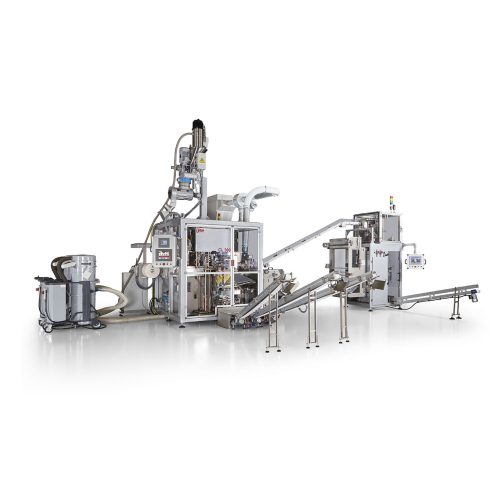

The CL 300 Pod Making Machine by Opem is a high-speed solution for producing and packaging coffee and tea pods with exceptional precision. This single-block, three-lane system utilizes a brushless servo motor-driven screw dispenser to ensure pods are accurately formed with a net weight precision of 0.2g. Integrated in-line weight control adjusts and rejects any out-of-tolerance pods, maintaining consistent quality. Capable of producing up to 300 pods per minute, it is ideal for coffee pod producers, tea manufacturers, and specialty beverage companies seeking to enhance production efficiency. The CL 300 supports flexible packaging options, including packaging in individual four corner seal bags, and seamlessly integrates with Opem’s automatic casing machine AST300 for streamlined downstream operations.

Benefits

  • Enhances production efficiency, delivering up to 300 pods per minute.
  • Ensures consistent product quality with precise weight control and automatic rejection of faulty pods.
  • Supports flexible packaging solutions, including individual sealing options, to meet diverse market needs.
  • Seamlessly integrates into existing production lines, reducing setup time and operational disruptions.
  • Minimizes human intervention, lowering labor costs and potential errors with automated control systems.

General


Applications
Coffee pods,Pods,Capsules,Tea pods,Beverage pods
End products
Decaf coffee pods,Specialty beverage pods,Espresso pods,Herbal tea pods
Steps before
Grinding,Mixing
Steps after
Weight Control,Packaging,Casing,Quality Check
Input ingredients
filter paper,hard pods,soft pods
Output ingredients
pods in filter paper,individual four corner seal bags,packaged pods,rejected out-of-tolerance pods
Market info
Opem specializes in designing and manufacturing customized packaging machinery, particularly for the food and beverage industries. They are known for their innovative, high-quality, engineered-to-order systems that emphasize advanced technology and precision.

Technical Specifications


Output Speed
Up to 300 pods/minute
Pod Type
Hard and/or soft pods
Net Weight Precision
0.2g
Automation
Brushless servo motor
Weight Control
In-line with feedback adjustment
Bag Type
Individual four corner seal bags
Combination Options
Automatic casing machine AST300
Screw Dispensers
Three
Pod Rejection
Out-of-tolerance pods are rejected

Operating Characteristics


Working mechanism
Single-block three lanes system
Integrated steps
Production and packaging of pods
Automation level
Brushless servo motor-driven
Weight control
In-line with feedback adjustment
Tolerance handling
Rejection of out-of-tolerance pods
Packaging flexibility
Four corner seal bags
Combination capability
Compatible with AST300 automatic casing machine

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Pod shape
Hard and/or soft pods
Discharge method
In-line weight control
Weight precision
±0.2 g
Feed method
Three screw dispensers driven by brushless servo motor
Packaging options
Individual four corner seal bags
Combination options
AST300 Automatic casing machine

Custom Options


Control panel type
Brushless servo motor
Integration possibilities
Combination with AST300 and four corner seal bags
Pod type
Hard and/or soft pods
