Pharmaceutical powders and granules dry blending

Achieve uniform blending of diverse powder and granule formulations with minimal maintenance, optimizing your batch processing for consistent end-product quality.

Blends and Mixes Pharmaceutical and Chemical Powders

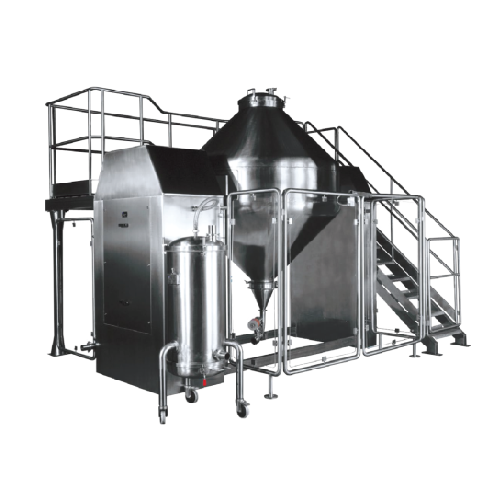

The Double Cone Blenders from Freund are specifically designed for pharmaceutical and chemical powder processing, ensuring uniform blending and mixing of powders and granules. Featuring a robust AISI 316L stainless steel contact surface, it is built for durability and resistance to corrosion. The blenders operate with a direct motor attachment to the shaft, reducing maintenance needs and operational noise. With an electric control panel that features an inverter and timer, you have precise control over blending speed and duration. Ideal for creating uniform formulations in tablets, supplements, and chemical additives, the blending capacity ranges from 37.5 to 2800 liters. The protective frame and safety switch-equipped access gate ensure compliance with CE and OSHA standards. Further, customization options such as pneumatic control of valves, touch operator panels, and hazardous location upgrades enable versatile integration into diverse processing environments. Available cleaning options, including WIP/CIP, streamline maintenance for high hygiene standards ensuring no cross-contamination.

Benefits

  • Enhances product uniformity in pharmaceutical and chemical formulations, reducing batch inconsistencies.
  • Lowers maintenance costs and operational noise with direct motor-to-shaft design.
  • Increases operational safety with CE and OSHA-compliant protective structures.
  • Adapts seamlessly to various processing environments with flexible customization options.
  • Maintains high hygiene standards with efficient WIP/CIP cleaning systems.

General


Applications
Supplements,Vitamins,Fine chemicals,Nutraceuticals,Pharmaceutical powders,Pharmaceutical granules
End products
Granular medications,Tablet formulations,Chemical additive mixtures,Vitamin c tablets,Nutraceutical capsules,Powdered pharmaceutical excipients,Protein powder blends,Dietary supplements
Steps before
Drying,Granulation,Powder Preparation
Steps after
Packaging,Coating,Tablet Pressing
Input ingredients
pharmaceutical powders,granules
Output ingredients
blended powders,blended granules
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Material of Construction for Product Contact
AISI 316L (1.4404) Stainless Steel
Material of Construction for Non-Product Contact
AISI 304 (1.4301) Stainless Steel
Internal Polishing
RA ≤ 0.4 μm
External Satin Finish
RA ≤ 0.8 μm
Blending Capacity
Min. 30% | Max. 70%
Volume Range
125 L - 4000 L
Control Panel
Electric with Inverter and Potentiometer
Automation
PLC-controlled with Touch Screen Options
Discharge Method
Butterfly Valve with Tri-Clamp Connection
Safety Features
CE / OSHA Compliant Protection Structure
Machine Type
Single Support
Blending Speed Control
Controlled by Inverter and Potentiometer

Operating Characteristics


Working Mechanism
Double Cone Rotation
Integrated Steps
Blending
Batch vs. Continuous Operation
Batch
Automation Level
PLC with Options for Touch Screen
Cleaning Method
WIP/CIP Options
Changeover Time
Reduced Due to Direct Motor Coupling

Material Compatibility


Abrasion resistance
AISI 316L Stainless Steel
Corrosive resistance
AISI 316L Stainless Steel
Cleanability
Internal Polishing RA ≤ 0.4 μm
Biological compatibility
Pharmaceutical grade stainless steel
Density/particle size
Particle size suitable for pharmaceutical powders and granules

Physical Characteristics


Blender shape
Double cone
Volume
125L - 4000L
Material - Product Contact
AISI 316L Stainless Steel
Material - Non-Product Contact
AISI 304 Stainless Steel
Internal Surface Finish
RA ≤ 0.4 μm
External Surface Finish
Satin RA ≤ 0.8 μm
Loading Options
Gravity / Vacuum
Discharge Method
Butterfly Valve
Support Type
Single Support
Control Panel
Electric with inverter

Custom Options


Control panel type
Electric with inverter and potentiometer
Control panel type
Touch screen controls with recipe management
Loading/unloading options
Gravity / Vacuum
Support structure
Stainless steel and Lexan
