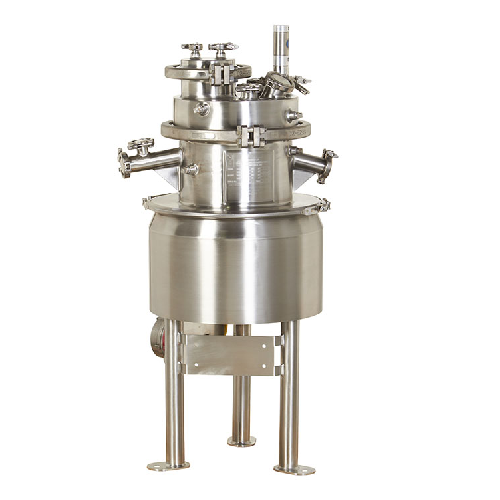

Lab Pharmaceutical aseptic separator

Achieve high-yield recovery and safe handling of potent pharmaceuticals with this aseptic separator, designed for seamless vacuum drying and efficient batch processing.

Filters, Dries, and Reclaims Potent Powders

The SWECO PH12 PharmASep is a sophisticated lab filter/dryer designed for the pharmaceutical and chemical industries, offering precise filtration and drying of small batch sizes up to 1 kg. This equipment provides efficient product recovery of potent materials through a no-gap design, ensuring safe and clean handling. Featuring SWECO’s patented Vibro-Dry technology, the PH12 accelerates vacuum drying by gently tumbling the material on a screen surface, minimizing the risk of agglomerate formation. Its integration into lab and pilot operations is seamless, supporting applications such as the production of antibiotics, APIs, and nutraceuticals. Engineered for energy efficiency, the PH12 reduces drying times and energy consumption. Constructed from high-grade materials, it offers excellent corrosion resistance and compliance with GMP standards, ensuring suitability for rigorous pharma environments. Cleaning and maintenance are straightforward, thanks to its ergonomic design, enhancing operational uptime and efficiency.

Benefits

  • Ensures high-yield product recovery and minimizes material loss.
  • Enhances drying efficiency, reducing processing time and energy consumption.
  • Provides safe handling of potent pharmaceuticals in a sealed environment.
  • Integrates easily into lab and pilot production lines for versatile applications.
  • Complies with GMP standards, ensuring regulatory adherence and product safety.

General


Applications
Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals,Enzymes
End products
Protein powders,Active pharmaceutical ingredients (apis),Antibiotics,Herbal supplements,Effervescent tablets,Amylase enzymes
Steps before
Purification,Grinding,Emulsification
Steps after
Sterilization,Packing
Input ingredients
highly potent pharmaceuticals,pharmaceutical batch
Output ingredients
dried pharmaceuticals,pharmaceutical product
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Batch size
Up to 1 kg
Drying technology
Vibro-Dry technology
Design
No-gap design
Product handling environment
Sealed
Operation type
Batch processing
Application
Pharmaceutical

Operating Characteristics


Working mechanism
Vacuum drying with Vibro-Dry technology
Batch vs. inline operation
Batch processing
Air incorporation control
Gentle tumbling
Agglomeration control
Reduces formation of agglomerates
Product recovery
High-yield
Cleaning method
No-gap design for safe handling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration risk
Reduced

Physical Characteristics


Discharge method
Batch processing
Screen surface
Vibro-Dry technology
Machine footprint
300mm
Batch size
Up to 1 kg
Sealed environment
Yes
