Percolation extractor for high-volume vegetable protein extraction

Optimize extraction efficiency across diverse materials with a continuous-loop system designed for reliable high-volume processing, ensuring thorough solvent contact and rapid drainage for complete extraction performance.

Extracts Oils and Proteins from Diverse Materials

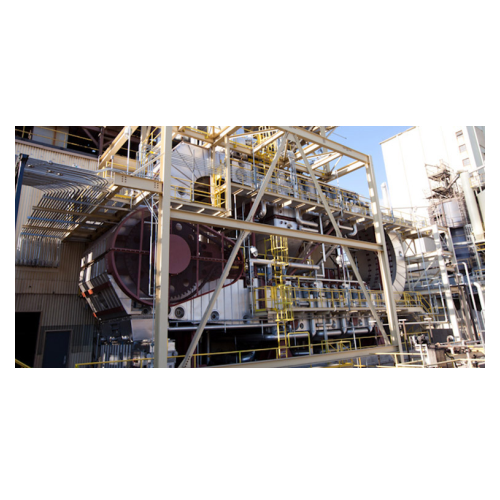

The Model III Percolation Extractor from Crown Iron Works is a continuous-loop, counter-current extractor designed for high-volume applications, such as processing vegetable proteins, oilseeds, and hemp CBD oil. This equipment stands out with its unique shallow-bed design, promoting optimal solvent contact and drainage, essential for complete extraction across a broad range of materials.

Utilizing a technology that allows both co-current and counter-current washes, it effectively maximizes the yield of products like soy protein isolate and essential oils. With an emphasis on energy and solvent efficiency, the Model III reduces solvent carryover, minimizing steam and hexane consumption during the desolventization process.

It supports ease of operation and maintenance, with self-cleaning screens ensuring longevity and reduced downtime. Particularly beneficial for industries ranging from nutraceuticals to biofuels, the extractor seamlessly integrates into existing production lines, offering PLC control for automated and high-capacity operations. The Model III is available with various material options to suit specific production needs, providing durability and compliance with industry standards.

Benefits

  • Enhances extraction efficiency with unique shallow-bed design for comprehensive solvent coverage.
  • Minimizes operational costs by reducing solvent and energy consumption.
  • Increases production flexibility by processing a wide range of materials and products.
  • Facilitates seamless integration and scalability in continuous production lines.
  • Reduces maintenance demands through self-cleaning screens and durable construction.

General


Applications
Polymers,Vegetable proteins,Wood chips,Hemp cbd oil,Oilseeds,Specialty chemicals,Fibers,Nutraceuticals,Plant-based proteins,Ground stumps,Waxes,Bagasse,Citrus fibers,Food products,Biofuel,Renewable diesel,Pharmaceuticals
End products
Edible oils,Carnauba wax,Omega-3 supplements,Molasses,Biodegradable plastics,Protein bars,Wood pulp,Nutraceutical capsules,Biodiesel fuel,Citrus pectin,Soy protein isolate,Hemp seed oil,Active pharmaceutical ingredients (apis),Textured vegetable protein,Polyester,Paper fibers,Sunflower oil,Renewable diesel fuel,Essential oils
Steps before
Oilseed Preparation,Grinding
Steps after
Desolventization,Drying,Packing
Input ingredients
vegetable proteins,wood chips,ground stumps,bagasse,citrus fibers,prepared materials
Output ingredients
oil,extracts
Market info
Crown Iron Works is renowned for its expertise in designing and manufacturing engineered-to-order equipment for oilseed processing and edible oil extraction, with a strong reputation for innovation, reliability, and delivering customized solutions worldwide.

Technical Specifications


Design Type
Continuous-loop,counter-current
Extraction Method
Solvent percolation
Bed Type
Shallow,wide and long flake bed
Automation
Continuous operation
Power Requirements
Lower power requirements
Solvent Contact
Solvent contacts flakes from all sides
Cleaning
Self-cleaning drainage screens
Discharge
Continuous discharge of flakes
Solvent Carryover
Reduced solvent carryover
Capacity
High operating capacity

Operating Characteristics


Working mechanism
Continuous-loop,counter-current
Batch vs. continuous operation
Continuous
Ease of operation
High
Solvent contact
Excellent contact and percolation
Changeover time
Easy to expand or relocate
Self-cleaning drainage screens
V-bar screens
Automation level
Ease of operation with low power requirements
Component life
Extended

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Foaming
Minimized foaming for efficiency
Material Drainage
Fast drainage for efficiency
Material type
Vegetable proteins,wood chips,etc.

Physical Characteristics


Machine footprint
Compact
Flake bed shape
Shallow,wide,and long
Feed method
Continuous-loop
Discharge method
Continuous discharge
Self-cleaning feature
Stationary,V-bar screens
Incline configuration
Chain incline before discharge

Custom Options


Extractor Type
Continuous-loop,counter-current,shallow-bed
Bed Type
Shallow,wide and long flake
Discharge Method
Continuous discharge of flakes
Solvent Usage
Reduced solvent usage
Screen Type
Stationary,V-bar screens
Screen Cleaning
Self-cleaning drainage screens
Wash Method
Co-current and counter-current washes
Component Life
Excellent
Operating Capacity
High
Solvent Drainage
Rapid drainage
Ease of Assembly
Easy to assemble,expand or relocate
Power Requirements
Lower power requirements
