Particle sizing for powders and suspensions
Optimize particle shape and size analysis with rapid, reproducible results for quality control and research, employing dynamic image analysis for precise evaluation.
Performs Rapid Particle Size and Shape Analysis

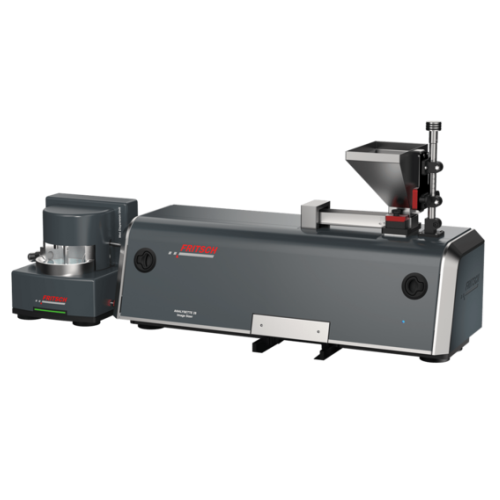

The ANALYSETTE 28 ImageSizer from FRITSCH GmbH is a versatile dynamic image analyzer designed for precise particle sizing and shape analysis. This system leverages Dynamic Image Analysis to provide fast, automated measurements of both dry and wet samples, making it ideal for industries ranging from pharmaceuticals and chemicals to mining and food processing. By utilizing a high-performance industrial camera with telecentric lenses, it captures up to 75 images per second, ensuring wide-ranging and accurate particle representation. Applications include the analysis of materials such as fertilizers, glass, metals, and ceramics, offering critical insights into product quality and consistency. With its integrated image analysis software, SOP-controlled operation, and options for both dry and wet measurement, it seamlessly integrates into R&D and quality control laboratories. Operational efficiency is enhanced by its low maintenance demand and reliable reproducibility, meeting ISO 13322-2 standards for dynamic imaging, thus ensuring adherence to rigorous industry regulations.
Benefits
- Ensures consistent product quality with rapid, accurate particle analysis in under 5 minutes.
- Reduces operational costs by eliminating the need for sieve maintenance and calibration.
- Enhances laboratory efficiency with fully automated, SOP-driven processes.
- Adapts to diverse industry needs through configurable measurement setups for both dry and wet samples.
- Improves data accuracy and reliability, complying with ISO 13322-2 standards.
- Applications
- Catalysts,Carbon products,Ceramics,Abrasives,Ores,Metals,Glass,Coal,Foodstuffs,Cements,Plastics,Pharmaceutical products,Sand,Carbon black,Refractory products,Fertilizers,Salts
- End products
- Steps before
- Sample Preparation,Grinding,Dispersion,Mixing
- Steps after
- Quality Control,Report Generation,Data Analysis,Result Evaluation
- Input ingredients
- fertilisers,refractory products,glass,ceramics,carbon products,catalysts,plastics,foodstuffs,metals,ores,pharmaceutical products,carbon black,coal,salts,sand,abrasives,cements,suspensions,emulsions,powders,bulk solids
- Output ingredients
- particle shape analysis,particle size analysis,particle size distribution,morphological analysis data,graphical representation,image data
- Market info
- Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.
- Measurement Range (Dry)
- 20 μm – 20 mm
- Measurement Range (Wet)
- 5 μm – 3 mm
- Camera Resolution
- 5 megapixels
- Measuring Time
- Below 5 minutes
- Image Capture Rate
- Up to 75 images/sec.
- Automation
- Standard Operating Procedures (SOPs)
- Lighting
- LED,homogeneous illumination
- Software
- ImageSizing-Software ISS
- USB Interface
- Yes
- Compliance
- ISO 13322-2 for Dynamic Image Analysis
- Measuring Range
- 20 μm – 20 mm (dry),5 μm – 3 mm (wet)
- Measurement Speed
- Under 5 minutes per sample
- Automation Level
- Automatic through SOPs
- Evaluation Software
- ImageSizing-Software ISS
- Camera Resolution
- 5 megapixels
- Data Transmission
- USB connection
- Image Capture Rate
- Up to 75 images/sec
- Exposure Time
- Adjustable
- Lighting
- LED with homogeneous illumination
- Mode of Operation
- Dynamic Image Analysis
- Automation Level
- Manual / Automatic SOPs
- Sample Types
- Powders,bulk solids,suspensions,emulsions
- Performance Adjustability
- Individual configurational setup
- Measurement Mode
- Dry and wet
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- ISO 13322-2 compliance
- Yes
- Control panel type
- SOP control,computer with ImageSizing-Software ISS
- Integration possibilities
- USB connection for data transmission
- Camera type
- High-performance industrial camera with 5 megapixels
- Lenses
- Telecentric lenses
- Illumination
- LED lighting with adjustable exposure time
- Software configuration
- Predefined and customizable SOPs
