Oil and gas-fired industrial boiler

Enhance steam production efficiency with a robust three-pass combustion system designed for optimal heat transfer and reduced flue gas emissions, ideal for demanding operational environments.

Generates Steam and Transfers Heat Efficiently

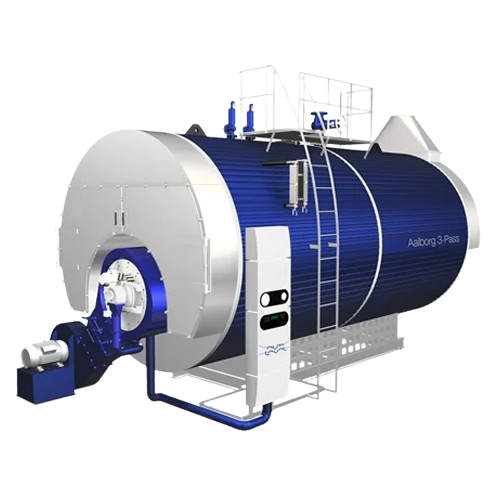

The Aalborg 3-Pass from Alfa Laval is an industrial oil and gas-fired boiler engineered to excel in steam production and heat transfer operations. Utilizing a three-pass design, it ensures symmetrical heat distribution and optimal water circulation, enhancing combustion efficiency and minimizing flue gas emissions. This boiler is versatile, serving industries such as oil and gas, power generation, and chemical manufacturing, and is crucial for producing refined petroleum and industrial steam.

With a heat capacity ranging from 1.5 to 25.5 MW and steam capacity of 2.0 to 39 t/h, it operates under pressures up to 20.7 bar g, delivering saturated steam. The Aalborg 3-Pass integrates seamlessly into continuous, fully automatic operations, featuring a built-in burner management system and the option for POMC load-sharing technology, which optimizes load distribution among multiple boilers.

The unit’s compact design facilitates easy installation and integration, while all connections and valves are top-mounted for straightforward inspection and maintenance. Equipped with manholes, it supports internal cleaning and maintenance efficiently. Additionally, it offers configuration flexibility with optional economizers, superheaters, and condensate tanks to enhance performance and meet specific production needs.

Benefits

  • Enhances combustion efficiency, minimizing flue gas emissions and ensuring regulatory compliance.
  • Optimizes steam production with a heat capacity of up to 25.5 MW, supporting high-demand industrial applications.
  • Simplifies maintenance with top-mounted connections and easy-access manholes, reducing operational downtime.
  • Integrates seamlessly into existing systems, boosting overall plant efficiency through automated load-sharing technology.
  • Compact footprint facilitates straightforward installation in space-constrained facilities.

General


Applications
Steam production,Pulp and paper production,Textile manufacturing,Chemical manufacturing,Oil and gas processing,Petrochemicals,Food and beverage processing,Industrial heating systems,Power generation
End products
Textile fibers,Brewed beverages,Industrial steam,Sterilized food,Ethylene glycol,Cardboard,Refined petroleum,Electricity,Paper pulp
Steps before
Fuel preparation,Water treatment,System integration
Steps after
Heat recovery,Steam distribution,Emission monitoring
Input ingredients
natural gas,oil,combined gas and oil firing,fuel
Output ingredients
steam,flue gas emissions,saturated steam
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Heat capacity
1.5 - 25.5 MW
Steam capacity
2.0 - 39 t/h
Design pressure
up to 20.7 bar g
Steam temperature
Saturated
Efficiency
91-95% (DIN 1942)
Automation
Burner Management System with load and sequence control
Burner type
Pressure atomising / steam atomising / rotary cup
Fuels
Natural gas / Oil / Combined gas and oil

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Batch
Combustion improvement
Low heat release ratio
Inspection access
Multiple manholes
Manual maintenance
Easy tube cleaning
Steam quality
Uniform,dry,saturated steam

Material Compatibility


Cleanability
Easy to clean due to low number and efficiency of spiral tubes
Corrosive resistance
Withstands flue gases and combustion processes
Density/particle size
Not specified

Product type Characteristics


Fuel type
Natural gas/Oil/Combined gas and oil

Physical Characteristics


Compact Design
Small footprint
Machine Footprint
Compact
Manhole Access
Multiple manholes
Port/Connection Placement
Top of the boiler

Custom Options


Burner Type
Pressure atomising / Steam atomising / Rotary cup
Fuels
Natural gas / Oil / Combined firing of gas and oil
Pressure Design
Plain surface / Corrugated furnace
Superheater Installation
Available
Economizer
Optional
Control System
Burner Management System / Load-sharing system
Load-sharing System Technology
POMC (Process-Optimising Multivariable Control)
Accessories
Condensate tank / Deaerator / Feed water tank / Blow down tank
Combustion control
O2 combustion control
