Multipurpose mixing equipment for chemical and pharmaceutical production
Achieve unparalleled flexibility with modular, exchangeable tools that streamline your mixing, dispersing, and homogenizing processes, reducing setup times and enhancing production efficiency across diverse product variants.
Enables Mixing, Dispersing, and Powder Wetting

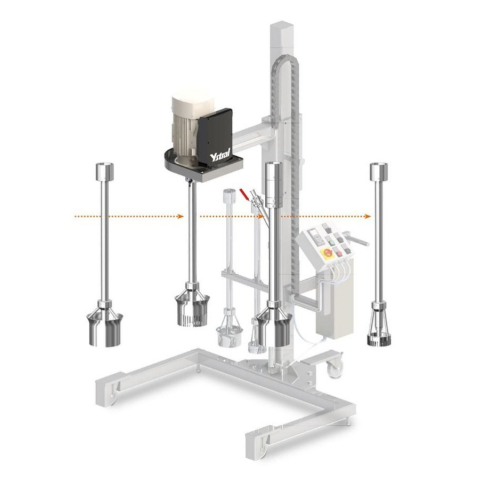

The YSTRAL Multipurpose Mixer X50/X100/X200 is engineered to address flexible production demands across chemical, food, pharmaceutical, and cosmetic sectors. This modular system stands out due to its interchangeable shafts and tools, allowing seamless transitions between mixing, dispersing, and powder wetting operations. Capable of handling batch sizes from 5 to 2,000 liters, it accommodates diverse product volumes with ease. The equipment features a mobile lifting column and multiple drive variants, enhancing adaptability and integration into existing production lines. Designed with energy efficiency in mind, it offers stepless speed control up to 3,600 min-1, optimizing power usage for varied processes. Crafted from stainless steel and compliant with GMP standards, it ensures durability and hygiene. Additionally, the multipurpose mixer supports customization to meet specific operation requirements, including explosion-resistant designs and specialized tool configurations. Whether in a batch or continuous setting, the YSTRAL Multipurpose Mixer provides reliable, efficient performance suited for the dynamic needs of modern production environments.
Benefits
- Enhances production flexibility by accommodating multiple product types and batch sizes with interchangeable tool shafts.
- Minimizes setup and changeover times, increasing operational efficiency.
- Meets stringent hygiene standards with GMP-compliant, easy-to-clean design.
- Optimizes energy usage with variable speed control and frequency converters.
- Enables seamless integration into existing lines with customizable configurations and mobile lifting columns.
- Applications
- Chemicals,Food,Inks,Coatings,Cosmetics,Household,Paints,Pharmaceuticals
- End products
- Detergent liquids,Pharmaceutical suspensions,Face creams,Protein shakes,Inkjet inks,Emulsions,Varnishes,Pigments,Chocolate spreads,Shampoo,Acrylic paints
- Steps before
- Ingredient Preparation,Powder Handling,Liquid Handling
- Steps after
- Quality Control,Product Packaging,Cleaning,Product Storage
- Input ingredients
- chemical substances,food ingredients,cosmetic materials,pharmaceutical raw materials,powders,liquids
- Output ingredients
- homogeneously mixed products,dispersed materials,wet powders,mixed solutions
- Market info
- Ystral is known for its expertise in mixing, dispersing, and powder wetting technologies, providing high-quality engineered-to-order equipment solutions for industries such as chemicals, pharmaceuticals, and food, renowned for innovation, reliability, and efficiency in process optimization.
- Power
- 1.5 kW – 7.5 kW
- Voltage
- 230 / 400 V,50 / 60 Hz
- Speed
- 750 / 1,500 min-1,1,500 / 3,000 min-1,stepless up to 3,600 min-1
- Seal
- Lip seal,mechanical seal single
- Batch size
- 5 to 2,000 L
- Tool shaft
- Shaft mounted separately from motor,plug connection to the drive
- Immersion depth with tool (LDT-1)
- approx. 400 mm
- Immersion depth with tool (LDT-1/S)
- approx. 600 mm
- Immersion depth with tool (Y-MD)
- approx. 380 mm
- Immersion depth with tool (Y-MD/S)
- approx. 620 mm
- Options
- Explosion-resistant design,certificate,qualifications
- Tool type
- Jetstream mixer,Dispersing mixer,Batch disperser,Dissolver,Mixer,Powder wetting TDS
- Drive
- Three-phase current
- Flexibility
- Exchangeable shafts and tools
- Changeover time
- Short set-up times
- Batch size versatility
- 5 to 2,000 liters
- Tool interchangeability
- Clamp or screw on mixing/dispersing tools
- Mobile operation
- Mobile lifting column
- Dust-free operation
- TDS Induction Mixer
- High-shear performance
- High Shear Dispermix
- Biological compatibility
- GMP guidelines
- Cleanability
- Easy cleaning,CIP compatible
- Corrosive resistance (e.g. acids)
- Stainless steel 1.4404 (AISI 316 L)
- Batch size
- 5 to 2,000 l
- Drive Voltage
- 230 / 400 V,50 / 60 Hz
- Speed Range
- 750 / 1,500 min-1 to 3,600 min-1
- Shaft Mounting
- Mounted separately from motor
- Immersion Depth with Tool
- LDT-1
- Tool Shaft
- Plug connection to the drive
- Material
- Stainless steel 1.4404 (AISI 316 L)
- Seal Types
- Lip seal,mechanical seal single
- Power Range
- 1.5 kW – 7.5 kW
- Models Available
- X50,X100,X200
- Special Design
- Explosion-resistant design
- Lifting Column
- Mobile or stationary,floor or wall stand
- Tool shaft
- Exchangeable,plug connection
- Drive and lifting column combinations
- Various options,mobile or stationary
- Immersion depth
- Adjustable with adapters
- Seal type
- Lip seal,mechanical seal single
- Explosion-resistant design
- Available
- Material
- Stainless steel 1.4404 (AISI 316 L),special material
- Automation integration
- Possibility with frequency converter
