Modular high-speed wrapper for chocolate flow packs

Efficiently wrap a wide range of products, from chocolate bars to dishwasher tablets, with modular flexibility and high-speed capabilities that streamline your packaging line and minimize material usage.

Wraps and Seals Chocolate and Powder Products

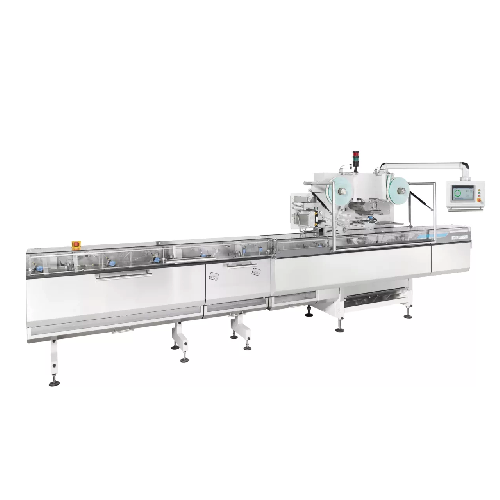

The FPC5 from Theegarten-Pactec is a modular high-speed wrapping machine designed to handle both chocolate products and compressed powder items like dishwasher tablets and bouillon cubes. This machine’s unique modular concept allows for swift changeovers between different product sizes and sealing types, including cold, heat, and cut-off seam welding. Capable of wrapping up to 1,500 products per minute, it integrates seamlessly into production lines, enhancing efficiency without compromising versatility. Its ability to process recyclable mono-films and paper-based materials aligns with sustainability goals. The FPC5’s PLC-controlled systems ensure precise operations with possibilities for remote monitoring. For confectionery and snack manufacturers, this machine simplifies logistics with its easy maintenance and customization options, offering engineering support for tailored configurations.

Benefits

  • Enhances production efficiency by wrapping up to 1,500 products per minute.
  • Reduces material waste with flexible, recyclable packaging options.
  • Streamlines operations with quick product size and sealing type changeovers.
  • Meets environmental goals by processing eco-friendly packaging materials.
  • Lowers maintenance demands with user-friendly design and engineering support.

General


Applications
Chewy sweets,Soft caramels,Candy,Bouillon cubes,Chocolate products,Toffees,Jelly products,Effervescent tablets,Dishwasher tablets,Chewing gum
End products
Chocolate-coated wafer bars,Wrapped chocolate bars,Wrapped chewing gum,Individually wrapped dishwasher tabs,Individually wrapped jelly products,Individually wrapped bouillon cubes,Wrapped chocolate products,Individually wrapped toffees,Wrapped effervescent tablets,Wrapped cereal bars,Chocolate bars,Wrapped chewy sweets,Chewy caramels
Steps before
Mixing,Chocolate Molding,Cooling,Tempering,Product Feeding
Steps after
Cartoning,Boxing,Palletizing,Distribution,Secondary Packaging
Input ingredients
small-sized chocolate products,larger chocolate bars,compressed powder products,dishwasher tabs,stock cubes,effervescent tablets,bouillon cubes,soft caramels,toffees,chewy sweets,chewing gum,hard candies,jelly products
Output ingredients
wrapped chocolate products in flow packs,wrapped larger chocolate bars in flow packs,wrapped compressed powder products in flow packs,wrapped dishwasher tabs in flow packs,wrapped stock cubes in flow packs,wrapped effervescent tablets in flow packs,wrapped bouillon cubes in flow packs,wrapped soft caramels in flow packs,wrapped toffees in flow packs,wrapped chewy sweets in flow packs,wrapped chewing gum in flow packs,wrapped hard candies in flow packs,wrapped jelly products in flow packs
Market info
Theegarten-Pactec is known for its expertise in manufacturing highly specialized packaging machines for small-sized confectionery products, offering innovative, flexible, and efficient solutions tailored to various customer needs in the industry.

Technical Specifications


Speed
1,500 products/min
Packaging Material Speed
120 meters/minute
Capacity
Up to 1,500 products/min
Changeover Time
Quick changeover between product sizes and sealing types
Sealing Type
Cold sealing,heat sealing,cut-off seam welding
Material Type
Recyclable mono films and paper-based packaging material
Output Rate (Chocolate Products)
600 wrapped chocolate bars/minute
Output Rate (Multi-Packs)
225 multi-packs/minute
Output Rate (Cereal Bars)
420 cereal bars/minute
Output Rate (Wafer Bars)
500 chocolate coated wafer bars/minute

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Quick changeover
Cleaning method
CIP / Manual
Energy efficiency
Optimized consumption

Material Compatibility


Recyclable material compatibility
Mono films,paper-based packaging
Sealing type compatibility
Cold sealing,heat sealing,cut-off seam welding
Compatibility with compressed powder products
Dishwasher tabs,bouillon cubes,effervescent tablets

Physical Characteristics


Machine footprint
Not specified
Modular design
Yes,quick changeover between product sizes
Feed method
Automatic with various feeding systems
Discharge method
Flow pack
Control panel type
Not specified
Compact footprint
Not specified
Sealing type
Cold sealing,heat sealing,cut-off seam welding
Changeover capability
Quick change of product sizes and sealing types

Custom Options


Modular concept
Allows quick changeover between different product sizes
Sealing type change
Cold sealing,heat sealing,cut-off seam welding
Packaging material
Recyclable mono films and paper-based materials
Integration possibilities
Compatible with cartoning system BLM
Product type compatibility
Chocolate products,compressed powder products
Application flexibility
Chocolate bars,dishwasher tabs,stock cubes,effervescent tablets
