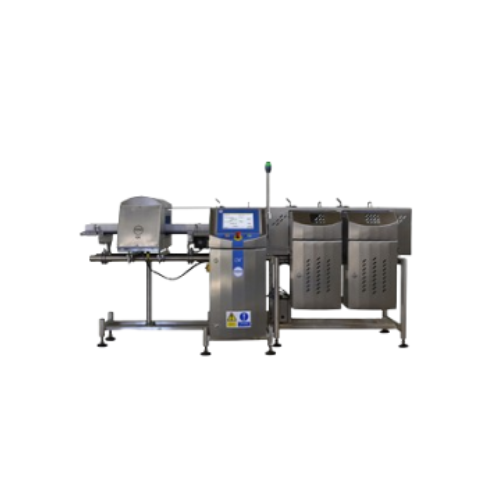

Metal detector checkweigher combination system for food products

Simultaneously detect metal contaminants while ensuring precise product weight to reduce waste and enhance quality in your food production line.

Detects Metals and Weighs Products Simultaneously

The Metal Detector Checkweigher Combination System from Loma Systems is engineered to enhance production line efficiency for food manufacturers, processors, and convenience food producers. By integrating Loma’s IQ4 metal detection technology and CW3 checkweighing capabilities, this system streamlines inspection and weighing processes, minimizing the risk of contamination and product giveaway. Designed for a wide range of applications including bakery, confectionery, and dairy products, it is ideal for end-products such as bread rolls, chocolate bars, and yogurt cups.

The system offers continuous, high-speed operation controlled via a single user interface, ensuring easy integration with existing production lines. Constructed with 304 brushed stainless steel, it operates within a temperature range of -10°C to 35°C, making it suitable for diverse environments. This equipment supports both solid and granular product types and offers a compact footprint, saving up to 25% of valuable line space, vital for production areas with space constraints.

With compliance to international food safety standards, the Metal Detector Checkweigher Combination System provides robust control and quality assurance for food safety and compliance. Enhanced with features such as variable frequency operation and USB data retrieval capabilities, this system facilitates detailed production monitoring and reporting, improving overall output quality and efficiency.

Benefits

  • Enhances product safety by efficiently detecting metal contaminants.
  • Minimizes product giveaway, ensuring precise weight compliance.
  • Simplifies operator training and increases productivity with a single user interface.
  • Saves valuable production line space by integrating two critical functions into one system.
  • Facilitates regulatory compliance and quality assurance through robust control measures.

General


Applications
Grains,Convenience food,Bakery,Confectionery,Snack foods,Meat,General industries,Cereals,Nuts,Egg products,Dried foods,Vegetables,Poultry,Food-to-go,Dairy products,Fish,Fruit
End products
Fish fillets,Egg cartons,Bread rolls,Apple slices,Instant noodle packets,Oatmeal flakes,Chicken breasts,Yogurt cups,Potato chips,Almond packs,Chocolate bars,Rice bags,Carrot sticks,Ready-to-eat sandwiches
Steps before
Product Sorting,Initial Packaging,Product Mixing
Steps after
Final Packaging,Labeling,Distribution
Input ingredients
retail-packed convenience food,food to go,bakery products,confectionery,snack foods,dairy products,egg products,dried foods,cereals,grains,fruit,vegetables,nuts,meat,poultry,fish
Output ingredients
inspected and weighed food products,metal contaminant-free food products
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Maximum Speeds
5-75 m/min
Supply Voltages
110 or 230 V,single phase 50/60Hz,neutral,Earth
Air Supply
5 to 8 bar (10mm Outside Dia) / 72-116 Psi
Temperature Range
-10°C to 35°C (14°F to 95°F)
Humidity
0-95% Relative Humidity (Non-Condensing)
IP Rating
IP65
True Variable Frequency
31KHz to 882KHz
Power Consumption
20VA
Belt Type
PU Anti Static

Operating Characteristics


Working mechanism
Simultaneous metal detection and checkweighing
Integrated steps
Single user interface for operation
Automation level
PLC controlled
Space efficiency
Saves around 25% of line space
Batch vs. continuous operation
Inline Continuous
Changeover time
Minimized through single interface
Energy efficiency
Optimized for low power consumption
Cleaning method
Supports CIP principles
Process communication
Integrated machine communication
Installation ease
Single unit for metal detection and weighing

Material Compatibility


Cleanability
Designed for easy cleaning
Corrosive resistance (e.g. acids)
304 Brushed stainless steel


IP Rating
IP65

Physical Characteristics


Machine footprint
Saves around 25% of line space
Material of Construction
304 Brushed stainless steel
Line Height Option
700 - 1000mm (+/- 50 adjustment)
Belt Type
PU Anti Static

Custom Options


Control panel type
Single touchscreen control
Integration possibilities
Integrated machine communication
Footprint
Compact,saves 25% line space
Reject options
Multiple reject options available
Construction Material
304 Brushed stainless steel
Line Height Option
700 - 1000mm(+/- 50 adjustment)
