Medium-volume rotary tablet press for pharmaceuticals

Optimize tablet production with high-throughput and rapid changeover capabilities, ensuring exceptional containment and product quality while reducing downtime.

Compresses and Contains Pharmaceutical Tablets

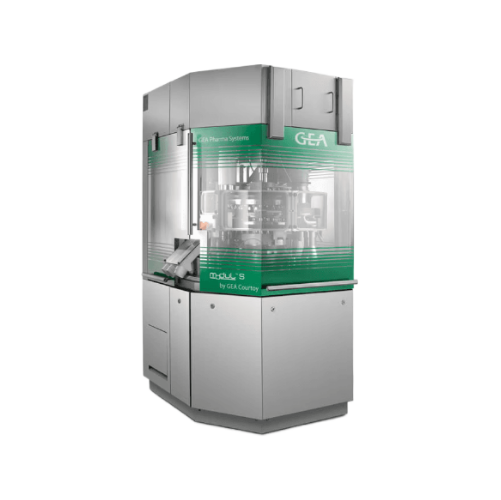

The MODUL S from GEA is a high-capacity rotary tablet press tailored for pharmaceutical manufacturers, combining rapid changeover and operator safety with its unique Exchangeable Compression Module (ECM) technology. Designed for high throughput, it processes a range of tablets, including aspirin and multivitamins, at up to 374,000 tablets per hour. This system permits swift, 30-minute changeovers, enhancing productivity while minimizing contamination risks by isolating all product contact parts. Equipped with dual control for precise weight and hardness management, the MODUL S integrates seamlessly into continuous, high-speed production lines. Automation is facilitated by a sophisticated HMI for complete process oversight, while the ECM allows offline cleaning, ensuring an uncontaminated production environment. The robust design supports varied tooling options, and meets stringent GMP standards, providing reliability and quality assurance in pharmaceutical applications.

Benefits

  • Enhances productivity with rapid 30-minute changeovers.
  • Ensures operator safety by containing potent drug exposure.
  • Optimizes efficiency with high throughput up to 374,000 tablets per hour.
  • Maintains tablet integrity with precise weight and hardness control.
  • Supports compliance with GMP standards for pharmaceutical production.

General


Applications
Nutraceuticals,Supplements,Pharmaceutical tablets
End products
Antihistamine tablets,Protein supplements,Vitamin c tablets,Fish oil capsules,Herbal supplement tablets,Probiotic supplements,Multivitamin tablets,Calcium tablets,Iron tablets,Fiber tablets,Aspirin tablets,Glucosamine supplements
Steps before
Granulation,Blending,Powder Preparation
Steps after
Coating,Packing,Quality Control
Input ingredients
tablet powder,pharmaceutical ingredients
Output ingredients
compressed tablets,pharmaceutical tablets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Compression force
10–100 kN
Max. tablet diameter
35 mm
Max. output capacity
374,000 tablets/h
Electrical requirements
3phase+PE – 380 / 400 / 415 / 460 / 480 V – 50Hz / 60Hz
Compressed air requirements
Clean,dry / 7-8 bar / 500 l/min
Dust extraction requirements
150 m³/h at 15 mbar
Machine dimensions,weight
1,300 mm x 1,260 mm x 2,200 mm – 4,100 kg
Max. pre-compression force
10 kN
Number of stations
23 to 50

Operating Characteristics


Working mechanism
Rotary tableting
Integrated steps
Compression,ejection,and tablet formation
Batch vs. continuous operation
Batch
Changeover time
30 minutes with ECM
Automation level
PLC controlled
Cleaning method
Wash-off-Line ECM
Energy efficiency
High due to optimized design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Containment capability
Isolated dust-tight module

Physical Characteristics


Machine dimensions
W = 1,260 mm x D = 1,300 mm x H = 2,200 mm
Machine weight
4,100 kg
Control panel type
Latest HMI for complete process control
Discharge method
Isolated Dust-Tight module

Custom Options


Control panel type
Latest HMI
Operation mode
Dual Control system
Compression module
Exchangeable Compression Module (ECM)
Changeover capability
Fast product changeover
Integration possibilities
ISOLATED DUST-TIGHT module
