Marination injecting solution for fresh poultry

Enhance product consistency and maximize yield in your production line with a solution that combines precise injecting, efficient marinating, and controlled temperature management, tailored to meet the exacting standards of fresh and frozen meat processing.

Injects, Marinates, Mixes, Freezes, and Packages Products

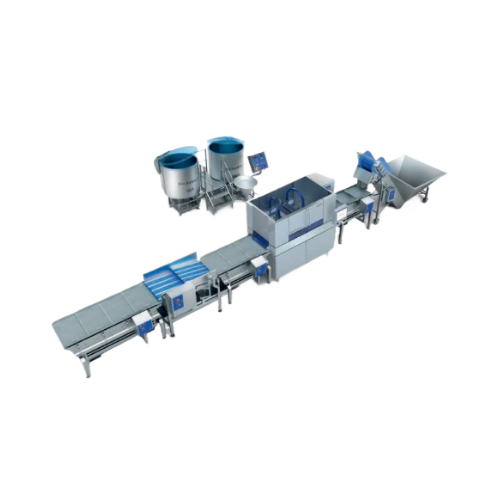

The GEA Fresh Enhanced Line is designed for poultry and meat processing, providing meticulous control in injecting, marinating, mixing, freezing, and packaging tasks. This equipment minimizes brine variance and enhances long-term retention while maintaining product appearance and juiciness. Its smart yield measurement system, accurate injection control, and dense needle pattern ensure optimal brine distribution. Applications range from marinated chicken breast to brined turkey fillets. Integrated with a PLC system, it allows for high-speed automation with remote monitoring. The robust design ensures minimal downtime with features like 50 Hz shaker technology, reducing manual handling and enhancing food safety. The system supports continuous operations and showcases energy efficiency with controlled brine temperature. Available in corrosion-resistant materials, it aligns with sanitation standards and offers CIP systems for easy maintenance. Configurable and engineered to support varied production needs, it integrates seamlessly into diverse food processing lines.

Benefits

  • Ensures consistent product quality by minimizing brine variance.
  • Increases yield accuracy with precise injection control and measurement.
  • Enhances food safety by reducing manual handling.
  • Lowers operational costs through reduced labor and maintenance needs.
  • Maintains energy efficiency with optimized brine temperature control.

General


Applications
Meat products,Fresh marinated products,Processed foods,Poultry products,Frozen products
End products
Pre-cooked marinated chicken strips,Marinated chicken breast,Injected pork loin,Seasoned beef roast,Pre-seasoned chicken wings,Frozen chicken thighs,Ready-to-cook chicken skewers,Brined whole turkey,Marinated duck breast,Brined turkey fillets
Steps before
Brine Mixing
Steps after
Freezing,Packaging
Input ingredients
fresh poultry products,brine,marinade
Output ingredients
injected and marinated fresh poultry products,better looking packaged products,consistent results and maximum yield
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Injection Pressure Control
Constant control over brine pressure
Brine Temperature Stability
2 – 4°C
Needle Size
2mm GEA OptiFlex injection needles
Needle Pattern Density
Dense needle pattern
Shaker Technology Frequency
50 Hz
Automation
Smart yield measurement system with accurate injection control

Operating Characteristics


Working mechanism
Fresh injecting with optional marination
Integrated steps
Brine mixing to freezing and packaging
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous
Changeover time
Minimal due to in-line process
CIP/SIP
CIP enabled
Cleaning method
CIP / Manual
Energy efficiency
High efficiency with reduced variation

Material Compatibility


Cleanability
High,due to streamlined design to prevent food particle buildup
Corrosive resistance (e.g. acids)
Yes,resistant to brine and marinade chemicals
Biological compatibility
Food-grade materials ensuring food safety
Abrasion resistance
Durable materials suitable for frequent use

Physical Characteristics


Control panel type
PLC interface
Discharge method
Automatic conveyor
Injection needle size
2mm GEA OptiFlex needles
Needle pattern density
Dense pattern
Shaker technology frequency
50 Hz

Custom Options


Injection Needle Customization
2mm GEA OptiFlex Needles
Control Panel Type
Smart Yield Measurement System
Brine Mixing Integration
Yes
Temperature Control
2–4°C Brine Temperature
Shaker Technology Frequency
Unique 50 Hz
