Manual bag-in-box filling solution

Streamline your liquid packaging with a compact, easy-to-operate filling system that simplifies manual operations while ensuring precise measurement and efficient product handling.

Fills and Caps Liquid Bags Manually

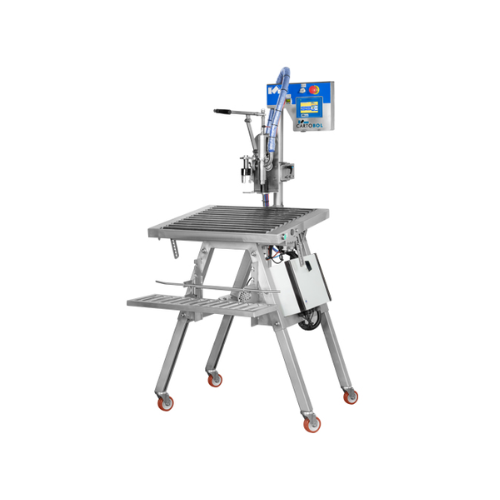

The ECOFILL EASY START ARM, from Cartobol, is a versatile manual bag-in-box filling machine designed for food and beverage producers and liquid packaging companies seeking efficient and customizable liquid handling solutions. Its stainless steel structure offers durability and easy mobility with an adjustable roller table and box support mounted on wheels. A centrifugal pump and electromagnetic flow meter ensure precise filling, while an intuitive touch screen allows for seamless operation. This machine excels in filling diverse consumable liquids, such as juice concentrates, olive oil, and plant-based milks, into bags with precise capacity adjustments. Energy efficiency is achieved by operating solely on electricity without the need for air intake, making it eco-friendly. A professional CIP system facilitates quick cleaning and maintenance, while the advanced purging system ensures no cross-contamination, extending equipment life.

Benefits

  • Enhances operational efficiency with precise electromagnetic flow measurement for accurate liquid volume control.
  • Simplifies manual operations with an ergonomic design, reducing operator fatigue and improving productivity.
  • Promotes sustainability by eliminating air intake, minimizing energy consumption.
  • Facilitates easy mobility and integration into existing production lines with a wheel-mounted, adjustable structure.
  • Ensures hygienic and contamination-free processes with an advanced CIP system and purging capabilities.

General


Applications
Liquid formulations,Bag-in-box packaging,Consumable liquids,Eco-friendly packaging,Liquid storage,Beverage filling
End products
Liquid fertilizers,Olive oil,Wine,Liquid detergents,Edible oils,Cooking sauces,Ready-to-drink beverages,Juice concentrates,Plant-based milks
Steps before
Bag placement,Cap removal,Bag preparation
Steps after
Bag sealing,Box support,Packing
Input ingredients
bags,electricity
Output ingredients
filled bags
Market info
Cartobol is known for manufacturing industrial engineered-to-order (ETO) equipment, specializing in custom solutions tailored to specific client requirements. They have a strong reputation for innovation, quality craftsmanship, and delivering reliable, precise machinery suited for various industrial applications.

Technical Specifications


Automation
Manual with auxiliary arm
Material
Stainless steel
Pump type
Centrifugal pump
Flow meter type
Electromagnetic flow meter
Cleaning method
Professional CIP
Adjustability
Easy capacity and parameter adjustment
Power requirement
Electricity only
Mobility
Wheels for mobility
Table type
Adjustable roller table

Operating Characteristics


Working mechanism
Manual operation with auxiliary arm
Integrated steps
Cap removal,nozzle insertion,filling
Automation level
Manual operation
CIP/SIP
Professional cleaning CIP
Cleaning method
CIP
Energy source
Electricity
Advanced purging system
Yes

Material Compatibility


Cleanability
High
Stainless steel applications
Yes
Corrosive resistance (e.g. acids)
Yes

Product type Characteristics


Bag type
Bag-in-Box
Container type
Pouches,Boxes

Physical Characteristics


Machine footprint
Compact with wheels
Structure material
Stainless steel
Roller table
Adjustable
Box support
Yes
Control panel type
Touch screen
Mobility
Wheeled

Custom Options


Control panel type
Touch screen
Mobility
Wheels for easy movement
Adaptability
Adjustable roller table
Integration Options
Centrifugal pump
Flow Measurement
Electromagnetic flow meter
Software Features
Advanced and intuitive software system
Parameter Adjustment
Easy capacity and parameter adjustment
Structure Material
Stainless steel
