Liquid dosing and assembly platform for pharmaceutical products

Optimize your production line with a seamless solution for precise liquid dosing and assembly, designed to enhance efficiency while ensuring superlative quality for pharmaceutical and diagnostic products.

Integrates Dosing, Filling, and Assembly Operations

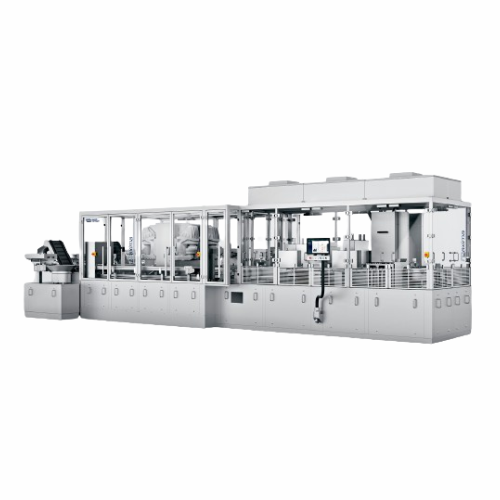

The LOT Oval Motion Machine from Harro Höfliger is designed for the seamless integration of dosing, filling, and assembly processes within pharmaceutical and medical device manufacturing. This modular platform supports complex assembly tasks, providing precision in applications ranging from drug delivery devices and inhalers to eye care products and nasal dispensers. The machine accommodates cleanroom environments, with options for classes D to A, and operates at speeds of up to 60 cycles per minute. Its fully automatic setup allows for thorough inspection capabilities, including leak tightness and flow inspections, ensuring high-quality output. The compact design incorporates barrier technologies for operator protection and product integrity, and supports various welding and hemming techniques using thermal, laser, and ultrasonic methods. With its flexible configuration, the LOT Oval Motion Machine is GMP compliant and offers a customizable approach to meet specific production needs, featuring integrated film handling and labeling systems.

Benefits

  • Enhances productivity with high-speed automation, achieving up to 60 cycles per minute.
  • Ensures product integrity and safety with comprehensive inspection processes, including leak and flow inspections.
  • Adapts to cleanroom environments, maintaining compliance with pharmaceutical GMP standards.
  • Protects both operators and products with integrated barrier technology for safe operations.
  • Customizable modular design allows for tailored assembly solutions to meet specific manufacturing needs.

General


Applications
Inhalers,Nasal dispensers,Medical devices,Vaccines,Liquid formulations,Eye care products,Drug delivery devices,Diagnostic products,Pharmaceuticals
End products
Iv bags,Vaccine suspension applicators,Diagnostic strips,Eye drops,Soft-mist-inhaler (smi),Liquid tubes
Steps before
Component Loading,Parts Handling,Liquid Preparation
Steps after
Quality Control,Final Assembly,Packaging,Capping,Sealing
Input ingredients
separate parts,drug delivery devices,inhalers,vaccine suspension,diagnostic products
Output ingredients
Soft-Mist-Inhaler,eye drops,IV bags,nasal dispensers,diagnostic strips,liquid tubes
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
up to 60 cycles/min
Stations
12-50
Exception
1 to 8 grooves
Clean room design option
Clean room classes D to A
Automation
Fully automatic
Dosing type
Liquid dosing

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Batch/Inline Continuous
Changeover time
Not specified
CIP/SIP
Not specified
Cleaning method
CIP / SIP / manual
Energy efficiency
Not specified

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Device Type
Drug delivery devices / Inhalers
Final Products
Soft-Mist-Inhaler,Eye drops,Nasal dispensers,Liquid tubes

Physical Characteristics


Machine footprint
Compact design
Control panel type
Integrated control panel
Discharge method
Multiple stations with specific discharge setups
Cleanroom Classification
Cleanroom classes D to A
Compact footprint
Ergonomic design with oval motion unit

Custom Options


Compact design
Modular setup
Control system
Fully automatic
Integration possibilities
Multiple process integration
Station modules
12-50 Stations
Clean room options
Classes D to A
Barrier technology
Containment systems
Parts handling
Linear or swivel movement
Dosing system adaptability
Custom project requirements
