Linear tablet and capsule counter
Ensure precise and efficient bottle filling with a cutting-edge counting system that guarantees 100% accuracy for various solid-dose products.
Counts and Fills Tablets and Capsules Precisely

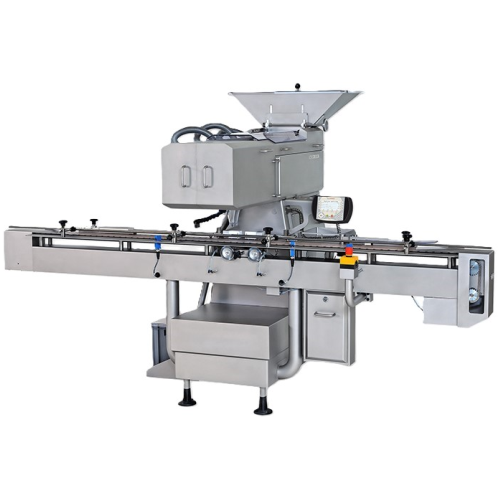

The CF 1220 from Cremer Speciaalmachines B.V. is a highly precise linear tablet and capsule counter integrated with a bottle filling system. Its unique design features three vibratory plates for optimal product separation, paired with an infrared detection system that delivers accuracy for pharmaceutical and nutraceutical applications. Engineered to count and fill a variety of tablet and capsule types, including unusual shapes and broken tablets, it suits operations with output speeds up to 10,000 products per minute and a maximum of 100 bottles per minute. The CF 1220 seamlessly integrates into bottle lines or functions as a standalone unit, featuring a large bulk hopper, fine dosing gate, and fast-acting separation flaps for efficient, continuous, and automated operations. Its GMP-compliant design meets US and European pharma-grade standards, while available customizations enhance dust extraction and operational control. With minimal change parts needed, it ensures efficient cleaning and maintenance.
Benefits
- Ensures 100% counting accuracy, minimizing costly packaging errors.
- Integrates seamlessly into existing production lines for improved workflow efficiency.
- Reduces changeover time with minimal change parts required for various bottle types.
- Enhances operator safety and compliance with GMP and 21 CFR part 11 standards.
- Customizable features such as dust extraction improve operational performance and cleanliness.
- Applications
- Supplements,Vitamins,Plastic bottles,Softgel capsules,Pharmaceutical tablets,Nutraceuticals,Hard capsules,Glass bottles
- End products
- Gelatin capsules,Omega-3 softgel capsules,Vitamin d supplements,Plastic pill bottles,Fish oil softgels,Glass pill bottles,Probiotic capsules,Herbal supplements,Multivitamin tablets,Calcium tablets,Protein supplements,Aspirin tablets
- Steps before
- Purification,Sorting,Drying,Inspection,Compact sizing
- Steps after
- Bottle filling,Packing,Labelling,Sealing,Distribution
- Input ingredients
- tablets,hard capsules,softgel capsules,unusual shaped tablets,broken tablets
- Output ingredients
- bottles of tablets,filled glass bottles,filled plastic bottles
- Market info
- Cremer is known for designing and manufacturing precision counting machines, particularly in the pharmaceutical and food industries. Their expertise lies in innovative, accurate, and reliable counting solutions for tablets, capsules, and confectionery.
- Counting channels
- 12 / 24
- Max. counting speed
- 5,500 / 10,000 products/min
- Max. output
- 55 / 100 bottles/min
- Bottle height
- 40-200 mm
- Bottle diameter
- 20-110 mm / 20-100 mm
- Counting accuracy
- 100%
- Detection system
- Infrared
- Product separation
- Linear vibratory plates
- Filling system
- Vibrating filling nozzle
- Automation level
- PLC
- Changeover time
- Quick change parts
- CIP/SIP
- Manual cleaning recommended
- Cleaning method
- Manual
- Batch vs. continuous operation
- Continuous inline filling
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Channel configuration
- 12 / 24 channels
- Discharge method
- Integrated indexing bottle conveyor
- Control panel type
- Touch-screen HMI
- Vibratory plates
- Linear
- Filling nozzle
- Vibrating
- Nozzle type
- Vibrating filling nozzle
- Size compatibility
- 40-200 mm height,20-110 mm diameter bottles
- Control panel type
- Touch-screen HMI
- Integration possibilities
- Seamless integration in bottle lines
- Additional features
- Central dust extraction manifold,reverse indexing sensor
