Leak testing system for aerosol cans

Ensure the integrity of your aerosol and metal packaging with a high-speed leak testing system that detects even the smallest leaks, enhancing quality control and compliance.

Detects Leaks in Aerosol and Steel Cans

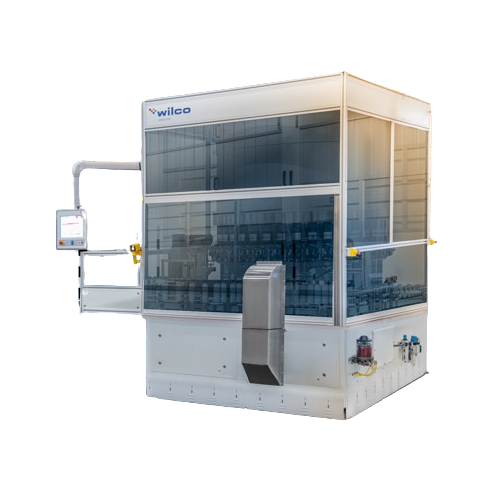

The AERO DPSC from WILCO AG is an inline leak tester specifically designed for aerosol and steel cans, ensuring compliance with industry regulations such as ADR. It utilizes a continuous carousel system that clamps cans in a hanging position to identify potential leaks, detecting leak rates as minute as 3.2 x 10-2 mbar.l.s-1. Commonly applied in the aerosol and food industries, it handles up to 500 cans per minute, making it ideal for high-speed production environments. Its robust design ensures longevity and integrates seamlessly into existing lines with automated format changeovers. The system is non-destructive, serving as an alternative to traditional water bath testing, and is available with software that compensates for fluctuating operating conditions, enhancing its reliability and precision.

Benefits

  • Enhances production efficiency with high-speed testing of up to 500 cans per minute.
  • Ensures product quality and customer safety by detecting even the smallest leaks.
  • Reduces operational costs by eliminating the need for destructive water bath testing.
  • Integrates seamlessly into existing lines, minimizing installation and setup time.
  • Complies with stringent industry standards, supporting regulatory compliance and market access.

General


Applications
Aerosol industry,Food industry,Aerosol cans,Metal packaging,Steel cans
End products
Canned soups,Canned fish,Soda cans,Hair spray cans,Processed canned meat,Juice cans,Paint spray cans,Ready-to-eat meals,Canned pet food,Cooking oil spray cans,Canned vegetables,Deodorant spray cans
Steps before
Filling,Sealing,Can Manufacturing
Steps after
Labeling,Packing,Distribution
Input ingredients
empty aerosol cans,empty steel cans
Output ingredients
leak-tested aerosol cans,leak-tested steel cans
Market info

Technical Specifications


Leak Rate Sensitivity
3.2 x 10⁻² mbar.l.s⁻¹
Test Pressure
High test pressure
Testing Speed
Up to 500 cans per minute
Automation
Automatic software features
Format Changeover Time
Fast format changeover
Compliance
ADR guidelines
Sealing Method
Clamping device

Operating Characteristics


Working Mechanism
Inline leak testing
Inspection System
Robust and sensitive
Automation Level
Automatic software features
Batch vs. Continuous Operation
Continuous inline operation
Changeover Time
Fast format changeover
Test Pressure
High test pressure
Non-Destructive Testing
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Integrated into existing production line
Can size compatibility
Multiple formats
Testing position
"Hanging" position for cans
Control panel type
MAVIS operating system
Changeover time
Fast format changeover

Custom Options


Control panel type
MAVIS operating system / HMI / Touchscreen
Integration into production line
Full integration
Format changeover
Fast format changeover
Non-destructive testing
Yes
