Large portion depositor for food production
Achieve precision and efficiency in depositing large portions with versatile solutions for thick and chunky mixtures, optimizing your production line’s output effortlessly.
Deposits and Portions Large Volumes Precisely

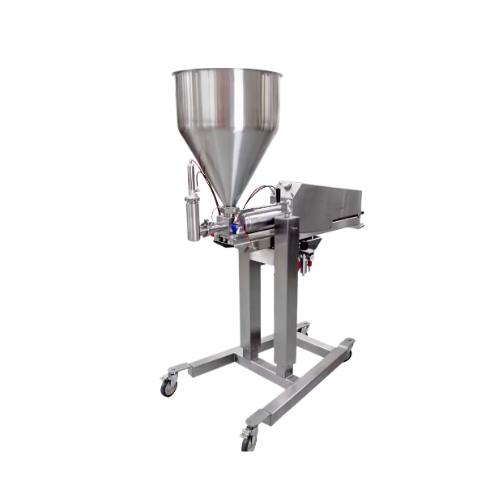

The Pro 4000i Heavy Duty Large Deposit Filler from Unifiller is engineered to transform high-volume production lines with its superior depositing capabilities. Utilizing an adjustable single piston system, this filler effectively handles diverse product types, from chunky soups and batters to viscous pastes and pet foods. With a precise deposit range from 15 oz to 150 oz, it suits applications like sauces, dressings, and pharmaceutical creams. Its 21-gallon conical hopper or 71-gallon low-level hopper ensures continuous operation, while the machine’s stainless steel construction and easy-washdown design simplify maintenance. Integrated seamlessly into existing lines, its air-powered system operates at speeds up to 60 cycles per minute, adapting to both food and non-food industries. Designed for durability, it maintains high sanitation, minimizing moisture-related wear, making it an ideal solution for large-scale, reliable production.
Benefits
- Enhances production efficiency with high-speed operation up to 60 cycles per minute.
- Maintains product integrity with adjustable deposit sizes for precise portioning.
- Simplifies cleaning and reduces contamination risks with an easy washdown design.
- Reduces maintenance time with tool-free operation and quick-connect fittings.
- Integrates seamlessly into existing lines to streamline large-scale production processes.
- Applications
- Sauces,Dough,Potato salad,Pet food,Curry,Pasta sauce,Cosmetics,Pharma,Cake batter,Bbq sauce,Salad dressing,Fish roe
- End products
- Red curry paste,Pizza dough,Liquid medicine,Bolognese sauce,Face cream,Smoky bbq sauce,Creamy potato salad,Seasoned fish roe,Italian salad dressing,Wet dog food,Chunky tomato soup,Cream cake batter
- Steps before
- Ingredient Mixing,Product Preparation,Chunk Formation
- Steps after
- Form,Fill and Seal,Large Tub Portioning,Packaging
- Input ingredients
- chunky tomato soup,Italian salad dressing,kimchi,cake batter,dough,pasta sauce,curry with chunks,BBQ sauce,potato salad,fish roe
- Output ingredients
- large portion deposits,form,fill and seal lines,large tub portioning
- Market info
- Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.
- Speed
- Up to 60 cycles per minute
- Deposit Range
- 15oz - 150oz
- Particle Size
- 1.5" cubes (38mm) +
- Power
- Air
- Hopper Capacity
- 21 Gallon (79 liters)
- Low-Level Frame Capacity
- Up to 71 Gallon (270 liters)
- Washdown Capability
- Easy Washdown
- Cleaning method
- Easy Washdown
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch
- Changeover time
- Quick connect fittings
- Automation
- Quick connect fittings
- Speed Adjustment
- Calibrated speed adjustment dial
- Cleanability
- Easy Washdown
- Moisture resistance
- Reduces damage caused by moisture build-up
- Density/particle size
- 1.5" cubes (38mm) +
- Hopper capacity
- 21 Gallon (79 liters) / Up to 71 Gallon (270 liters) on low-level frame
- Deposit range
- 15oz (445 ml) to 150oz (4440 ml)
- Tool requirements
- No tools required
- Height adjustment
- Precision height adjustment
- Surface covers
- Angled to eliminate pooling
- Particle size handling
- Up to 1.5" cubes (38mm) +
- Control panel type
- User-friendly dial
- Integration possibilities
- Form,fill,and seal lines
- Height adjustment
- Precision height adjustment
- Surface covers
- Angled to prevent pooling
- Quick connect system
- Stainless steel fittings
