Laboratory stirrer for small batch mixing

Achieve consistent mixing and blending in small-scale environments with minimal energy consumption, ensuring precision and flexibility for your R&D and laboratory processes.

Mixes and Homogenizes Viscous Liquid Products

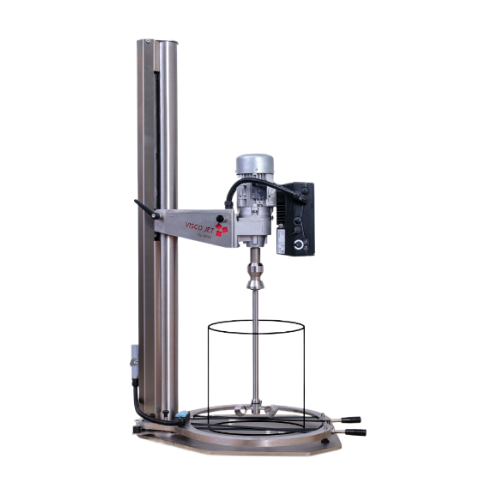

The VISCO JET VJ150 from VISCO JET Rührsysteme GmbH is a versatile laboratory stirrer designed for efficient mixing and homogenizing of viscous liquid products. This compact unit is ideal for R&D and laboratory settings, capable of handling a variety of applications across industries such as cosmetics, pharmaceuticals, and chemicals. It operates with a 0.25 kW motor and features a built-in frequency converter for precise speed control, making it adaptable for different product viscosities and mixing tasks.

The VJ150 supports manual, bench-top operations, and is especially suited for small container processing, handling volumes up to 50 liters. With its adjustable hub height and quick-release coupling, it allows for easy setup and changeovers between experiments, enhancing productivity and reducing downtime. Its stainless steel construction ensures durability and resistance to various chemicals, while the integrated safety switch prevents operation unless the container is securely in place, ensuring safe use.

This stirrer offers energy efficiency through its variable speed control, minimizing power consumption during operations. It is compatible with multiple VISCO JET stirring implements, enabling tailored mixing solutions for desired end-product consistency and quality, such as facial cream emulsions or syrup homogenizations. Compliance with EU safety and electromagnetic compatibility standards ensures reliable and safe operation in laboratory environments.

Benefits

  • Enhances operational flexibility with quick setup and changeovers.
  • Ensures consistent product quality through precise speed control.
  • Increases safety with integrated safety switch in the container clamp.
  • Offers durability and chemical resistance with stainless steel construction.
  • Reduces energy usage with efficient variable-speed motor.

General


Applications
Chemicals,Paints and coatings,Ceramics,Confectionery,Food and beverage,Petrochemicals,Mining,Cosmetics and soaps,Dairy products,Paper production,Pharmaceuticals
End products
Water-based paint,Mineral slurry,Plastic additives,Cough syrup,Paper pulp mixture,Facial creams,Liquid detergent concentrate,Chocolate coating,Cheese spread,Bar soaps,Fruit juices,Glaze for ceramics
Steps before
Preparation,Measurement,Mixing,Ingredient Addition
Steps after
Quality Control,Sampling,Analysis,Filling,Packaging
Input ingredients
niedrig- bis hochviskose Medien,Keramik,Kosmetik,Seifen,Süßigkeiten,Lebensmittel,Getränke,Papierherstellung,Milchprodukte,Farben,Lacke,Chemie,Pharma,Bergbau,Petrochemie
Output ingredients
gerührte Medien,homogenisierte Materialen,verarbeitete Mischungen
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistung
0.25 kW
Spannungsversorgung
230 V / 50 Hz
Hubeinstellung
Manuell und stufenlos
Hubhöhe
400 mm
Höhe bei Hub vollständig ausgefahren
1,290 mm
Höhe bei Hub eingefahren
1,249 mm
Sicherheitsschalter
In der Behälterklemmung integriert
Material Stativ
Edelstahl 1.4301
Material Rühreinheit
Edelstahl 1.4404/1.4571
Lösungen für Rührorgane
Kombinierbar mit allen VISCO JET® Rührorganen
Standard-Anschluss
230 V Stecker

Operating Characteristics


Rührwerksbetrieb Sicherheit
Integrierter Sicherheitsschalter
Höheneinstellung
Manuell und stufenlos
Flexibilität der Rühreinheiten
Schnellwechselkupplung
Antriebsleistung
0,25 kW mit Frequenzumrichter
Automatisierungsgrad
Manuelle Höhenverstellung
Behälterklemmungssicherheit
Integrierter Sicherheitsschalter
Medienkompatibilität
Niedrig bis hochviskose Medien
Maximale Behältergröße
Durchmesser bis 400 mm,Volumen bis 50 L

Material Compatibility


Abrasion resistance
High
Cleanability
High,suitable for CIP
Corrosive resistance (e.g. acids)
Yes,stainless steel 1.4301 / 1.4404 / 1.4571
Density/particle size
Varied,suitable for low to high viscosity media

Physical Characteristics


Machine footprint
Appropriate for lab setting
Tank shape and size
Suited for containers with a diameter up to 400 mm
Feed/discharge method
Manual or quick-change coupling for stirrer units
Height adjustment
Manual,stepless with a range up to 400 mm
Material of construction
Stainless steel 1.4301 for stand,1.4404/1.4571 for stirring unit
Weight compatibility
Containers up to 50 Liters
Height fully extended
1,290 mm
Height fully retracted
1,249 mm

Custom Options


Control panel type
Integrated display with frequency converter
Height adjustment
Manual,stepless
Switching mechanism
Quick release coupling
Drive power
Variable speed with frequency converter
Rührorgane compatibility
Compatible with various VISCO JET® solutions
