Laboratory spray dryer for sub-gram powder samples
Achieve precise control in developing fine chemical and pharmaceutical powders with a versatile spray drying system designed to transition your lab formulations seamlessly to commercial production.
Spray Dries Pharmaceuticals and Chemicals Efficiently

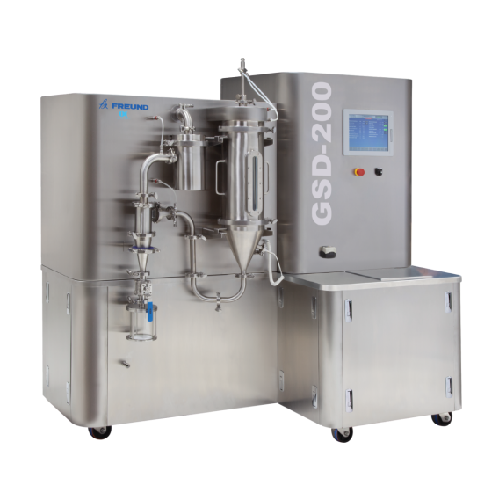

The GSD-200 GENESIS™ from Freund is a flexible, portable spray dryer designed for laboratory and pilot-scale applications in pharmaceuticals and fine chemicals. Its modular design, featuring a drying chamber, atomizing nozzle, cyclone, and exhaust filter, supports both open and closed loop spray drying with nitrogen inerting for solvents. Capable of producing commercial-scale particle properties, it bridges the gap between development and optimization. This unit is ideal for creating tablet coatings, granulated supplements, and enzyme powders. With an evaporation capacity of 1 kg/hr (water-based), it is energy efficient and operates with a reliable VFD motor and proven filter technology, ensuring longer uninterrupted runs. Crafted with 316L stainless steel, it meets CE, ATEX, and other industry standards. The system supports a range of spray nozzles, including a two-fluid nozzle and optional twin jet, and features an internal gas handling system with an electric heater. Additionally, it offers a COMPU™ control system and optional features such as a solvent recovery unit for enhanced operational efficiency.
Benefits
- Facilitates efficient product development and scale-up with lab-scale precision for commercial particle properties.
- Minimizes resource use with reliable long-run operation, reducing process interruptions and maintenance costs.
- Enhances safety and versatility with nitrogen inerting for solvent processing.
- Ensures high recovery rates of valuable materials with advanced recovery configurations for sub-gram samples.
- Complies with strict industry standards ensuring suitability for pharmaceutical and chemical production environments.
- Applications
- Supplements, Vitamins, Fine chemicals, Detergents, Nutraceuticals, Biopharmaceuticals, Enzymes, Coating materials, Minerals, Sweeteners, Pharmaceuticals
- End products
- Dried biopharmaceutical enzymes, Powdered detergents, Crystalline sweeteners, Coating materials dispersions, Granulated nutraceutical supplements, Particle formulations for fine chemicals, Encapsulated vitamins, Tablet coatings for pharmaceuticals, Mineral supplements in powder form, Stabilized enzyme powders
- Steps before
- Formulation Development, Solution Preparation, Purification
- Steps after
- Powder Collection, Packing, Analysis, Scale-up, Process Optimization
- Input ingredients
- feed material, pressurized solution, solvents
- Output ingredients
- sub-gram powder samples, dried particles, commercial scale representative particles
- Market info
- Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.
- Evaporation Capacity
- 1 kg/hr (Based on Water, 210°C inlet / 110°C Outlet)
- Chamber Diameter
- 200mm
- Nozzle Type
- 2-Fluid (standard), Pressure (Optional), Twin Jet (Optional)
- Drying Gas Flow Rate
- 25 kg/hr
- Compressed Air Supply
- 10 m3/hr @6 bar
- Nitrogen Supply
- 10 m3/hr @6 bar
- Electrical Supply
- 230 – 575 VAC, 50 – 60 Hz, 3 Phase
- Weight
- 900 kg
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Abrasion resistance
- Yes
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- 316L stainless steel
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Closed Cycle Operation
- Nitrogen Inerting
- Machine Footprint
- Portable System Mounted on Casters
- Chamber Diameter
- 200 mm
- Drying Chamber with View Windows
- Yes
- Cyclone with Powder Collection Container
- 500 mL
- Material
- 304, 316L Stainless Steel
- Portable system
- Mounted on Casters
- Chamber Diameter
- 200mm
- Standard Configuration
- All-in-one unit
