Laboratory pellet press for testing and formulation
Achieve precise pellet formulation and performance testing with versatile pellet pressing capability, ideal for exploring innovative feed compositions and optimizing pellet quality.
Pelletizes and Tests Various Formulations

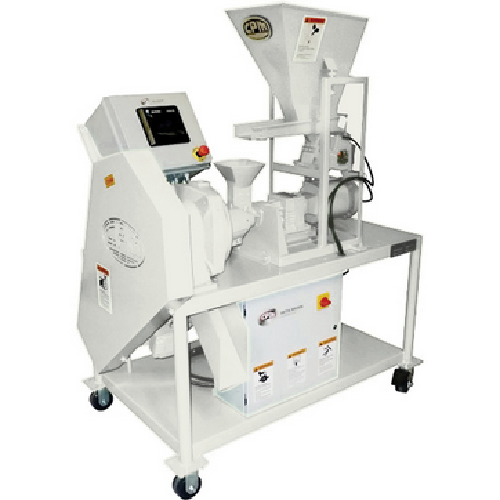

The CL Series Laboratory Pellet Mills from CPM are ideal solutions for research laboratories and feed manufacturers looking to innovate in pellet production. The CL3 and CL5 models deliver precise and controlled pelletizing with a capacity of 30 to 200 pounds per hour, making them suitable for a range of applications from animal feed to biomass pellets. The CL3 features a vibratory feeder with variable speed control, while the CL5 includes a conditioner for steam or liquid addition, enhancing flexibility during testing phases. The equipment is engineered with a segmented die clamp for quick changes, a 3 HP motor for efficient operation, and metal-to-metal seals for durability. Integration is seamless in laboratory settings, while touchscreen controls and a single motor design contribute to operational efficiency. With these capabilities, the CL Series supports product innovation and refinement through easy customization and quick adaptability to changing formula requirements.
Benefits
- Enables rapid testing and optimization of feed formulations, reducing time to market for new products.
- Enhances operational efficiency with quick die changes, minimizing downtime.
- Facilitates a wide range of applications with adjustable steam and liquid conditioning.
- Streamlines laboratory operations with user-friendly touchscreen controls.
- Supports sustainable practices with energy-efficient single motor design.
- Applications
- Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
- End products
- Hemp pellets,Wood pellets,Meat and bone meal,Protein shakes,Livestock pellets,Biofuel pellets,Hop pellets,Fish feed pellets,Pet kibble,Soybean meal
- Steps before
- Preparation,Formulation Mixing,Grinding,Conditioning,Steam Addition
- Steps after
- Cooling,Pellet Analysis,Quality Testing,Packing,Storage
- Input ingredients
- formulas,raw materials,steam,liquid
- Output ingredients
- pellets
- Market info
- CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.
- Motor Power
- 3 HP
- Capacity
- 30–200 lbs/hr
- Feeder Type
- Vibratory feeder
- Feeder Control
- Variable speed
- Discharge Method
- Front discharge
- Automation
- Touchscreen controls
- Die Change
- Segmented die clamps
- Seals Type
- Metal-to-metal
- Efficient Power
- Single motor
- Conditioning
- Available on CL5
- Working Mechanism
- Pelleting
- Integrated Steps
- Conditioning,Feeding
- Batch vs. Continuous Operation
- Batch
- Automation Level
- Touchscreen Controls
- Quicker Die Changes
- Segmented Die Clamps
- Efficiency
- Single Motor Design
- Cleaning Method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Discharge method
- Front discharge
- Control panel type
- Touchscreen
- Control panel type
- Touchscreen controls
- Feeder type
- Vibratory feeder with variable speed control
- Die change mechanism
- Segmented die clamps
- Seal type
- Metal-to-metal seals
- Motor type
- Single motor
- Hopper inclusion
- Yes
- Conditioner option
- Steam or liquid addition
