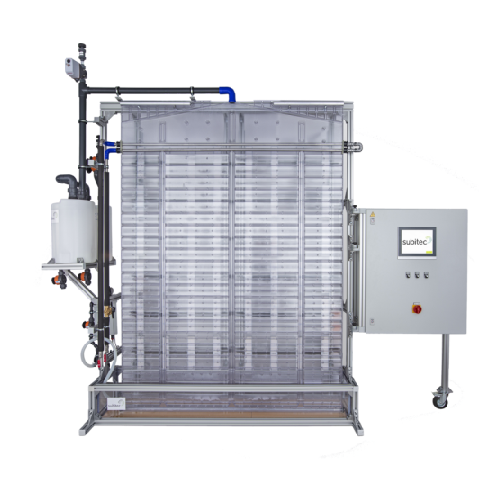

Laboratory microalgae cultivation system

Elevate your lab-scale microalgae production with a system designed for precise cultivation, ensuring optimal growth conditions and contamination-free results. Ideal for research or pilot projects aiming to enhance biomass yield.

Cultivates and Processes Microalgae for Various Applications

The LS6, LS28, LS4x28, and LS180 systems from Subitec are designed for microalgae cultivation using advanced Flat-Panel Airlift Photobioreactor technology. These systems stand out due to their precise control over growth conditions, including light, temperature, and CO2 levels, resulting in optimal microalgal biomass production for industries such as pharmaceuticals, cosmetics, and carbon capture. Capable of handling volumes from 6 to 180 liters, each unit seamlessly integrates with laboratory and pre-scale operations, offering flexibility and scalability. The energy-efficient design minimizes footprint while maximizing photosynthetic surface area, and the hermetically sealed construction prevents contamination, ensuring high product quality. These systems are equipped with integrated LED lighting, automated control features, and comprehensive data storage, making them ideal for research institutions and biotech companies that require reliable and efficient microalgae cultivation solutions.

Benefits

  • Enhances biomass yield through precise environmental control, ensuring high-quality end-products.
  • Minimizes contamination risk with a sealed design, maintaining product integrity.
  • Increases production flexibility and scalability, accommodating a range of output needs.
  • Optimizes energy use with efficient light and mixing systems, lowering operational costs.
  • Integrates easily into existing processes, streamlining workflow and reducing setup time.

General


Applications
Animal feed,Microalgae biomass production,Cosmetics,Carbon capture,Wastewater treatment,Food supplements,Pharmaceuticals
End products
Spirulina powder,Bioplastic materials,Algal biochar,Algal wastewater remediation agents,Algal fish feed,Astaxanthin capsules,Phycocyanin extract,Algal collagen,Biofertilizers,Algal beta carotene,Algal protein concentrate,Algal dha oil,Algal face cream,Omega-3 supplements,Algal animal feed,Co2 absorption products,Chlorella tablets,Microalgae-based skin serum
Steps before
Microalgae Culture Preparation,Inoculation,Seed Culture Development
Steps after
Microalgae Harvesting,Biomass Extraction,Product Formulation
Input ingredients
microalgae culture,carbon dioxide,light,nutrients
Output ingredients
microalgal biomass,oxygen
Market info
Subitec GmbH is known for its expertise in cultivating microalgae using its unique flat-panel airlift (FPA) photobioreactor technology, providing sustainable solutions for biofuel production, bioplastics, and high-value ingredients in various industries.

Technical Specifications


Cultivation volume
6 litres
Cultivation volume
28 litres
Cultivation volume
112 litres
Cultivation volume
180 litres
Photosynthetic surface area
0.6 square metres
Photosynthetic surface area
2.3 square metres
Photosynthetic surface area
9.3 square metres
Photosynthetic surface area
15 square metres
LED dimmable range
80..800 µmol m-2 s-1
LED dimmable range
max. 800 µmol m-2 s-1
LED dimmable range
160..800 µmol m-2 s-1
LED dimmable range
160..800 µmol m-2 s-1
Pressure regulator air
6 litres
Pressure regulator air
28 litres
Pressure regulator air
180 litres
Integrated LED unit
4000 K / 230 V / 50 Hz / 320 W
Integrated LED unit
500 W / 20-100 % 400-780 nm
Integrated LED unit
2000 W / 20-100 % 400-780 nm
Illuminated area
400 x 750 mm
Illuminated area
900 x 1300 mm
Illuminated area
1800 x 2500 mm

Operating Characteristics


Working mechanism
Flat-Panel-Airlift-Photobioreactor
Integrated steps
Lab to industrial scale transition
Aeration control
Aeration membrane
CO2 transfer improvement
Airlift system
Temperature control
Integrated temperature probe
PH control
Integrated pH probe
LED lighting
Dimmable LED unit
Contamination control
Hermetically sealed design
Automation level
Data storage and touchscreen control
Foam management
Foam trap
Scalability
From 6 to 180 litres

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Tank shape
Flat-Panel
Cultivation volume
6 litres / 28 litres / 112 litres / 180 litres
Photosynthetic surface area
0.6 m² / 2.3 m² / 9.3 m² / 15 m²
Discharge method
Hermetically sealed system
Control panel type
Touchscreen
Pressure regulator
Air / CO2

Custom Options


Control Panel Type
Touchscreen
Integrated LED Unit
Dimmable 80..800 µmol m-2s-1
Temperature Control
Included
Data Storage
Integrated
CO2 Supply System
Per Flat-Panel-Airlift-Photobioreactor
