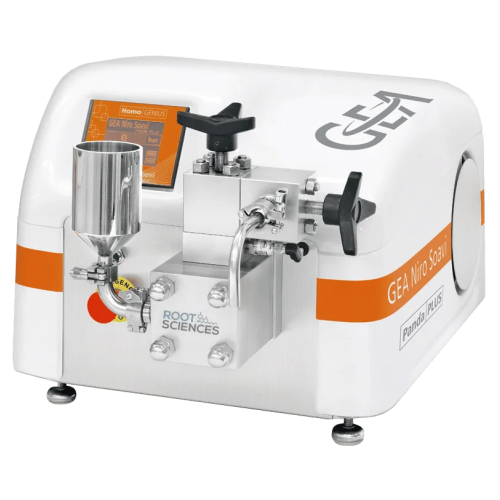

Laboratory homogenizer for cannabis nanoemulsion production

Achieve exceptional bioavailability and stability with high-pressure homogenization, creating water-soluble nanoemulsions ideal for integration into beverages, edibles, and topicals.

Produces Stable Bioavailable Cannabis Nanoemulsions

The PandaPLUS 1000 and PandaPLUS 2000 from Root Sciences are high-pressure nanoemulsification homogenizers, specifically engineered for producers in the cannabis and pharmaceutical sectors seeking consistent and bioavailable emulsions. These units utilize a GEA High Pressure Homogenizer that transforms coarse emulsions into fine, stable nanoemulsions through extreme shearing forces. Suitable for applications ranging from cannabis-infused beverages and topical creams to pharmaceutical-grade emulsions, these homogenizers support continuous bench-top and pilot operations. With capacities handling up to 24 L/h and a pressure range up to 2,000 bar, the PandaPLUS models integrate seamlessly into automated and large-scale production lines. They are equipped with Clean-In-Place (CIP) systems and optional heat exchangers, ensuring efficient cleaning and maintenance, while diverse electrical options enhance integration flexibility. Whether working on cannabis-infused edibles or biotech cultures, the PandaPLUS homogenizers deliver efficient processing and precise emulsification results.

Benefits

  • Enhances bioavailability and stability of cannabis products, ensuring reliable consumer experiences.
  • Streamlines integration into existing production lines with continuous operation capability.
  • Minimizes production costs with energy-efficient high-pressure processing.
  • Facilitates rapid, contamination-free cleaning with a built-in CIP system.
  • Delivers consistent product quality with precise nanoemulsion formulation.

General


Applications
Chemicals,Beverages,Food,Biotechnology,Hemp,Edibles,Topicals,Cannabis,Dairy,Pharmaceuticals
End products
Water-soluble cbd tinctures,Biotech-grade cultures,Cannabis-infused beverages,Pharmaceutical-grade emulsions,Thc gummies,Cbd capsules,Hemp protein powder,Flavored liquid food additives,Cannabis-infused chocolates,Thc-infused topical creams,Chemical emulsifiers,Dairy emulsions,Nanoemulsion sleep aids
Steps before
High Shear Mixing,Coarse Emulsion Creation
Steps after
Clean-In-Place (CIP),Product Packaging,Quality Control
Input ingredients
cannabis oil,water,coarse emulsion
Output ingredients
cannabis nanoemulsion,water-soluble cannabinoid nanoemulsions,clear nanoemulsions,high-load nanoemulsions,flavorless nanoemulsions
Market info
Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.

Technical Specifications


Max Flow Rate
24 L/h,10.8 L/h
Production Rate
20k flavorless,9k flavorless,7.5k clear,40k high-load
Pressure
1,000 bar,2,000 bar
Motor Power
2.2 kW,1.85 kW
Electrical Options
3Φ 200 V,50 Hz
3Φ 220 V,50-60 Hz
3Φ 400 V,50-60 Hz
3Φ 460 V,60 Hz
Feeding Hopper Volume
0.4 L
Minimum Sample Volume
60 mL,30 mL
Dimensions (LxWxH)
810 x 540 x 440 mm
Weight
105 kg

Operating Characteristics


Working Mechanism
High-Pressure Homogenization
Integrated Steps
Coarse Emulsion Creation,High Pressure Processing
CIP Principles
Clean-In-Place (CIP)
Batch vs. Continuous Operation
Batch
Automation Level
PLC-Controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
810 x 540 x 440 mm
Weight
105 kg
Feeding hopper volume
0.4 L
Optional feeding hopper
2 L

Custom Options


Feeding hopper volume
0.4 L or optional 2 L
Heat exchanger for product outlet
Available
High shear mixer package
IKA T-25
Electrical Options
3Φ 200 V,50 Hz / 3Φ 220 V,50-60 Hz / 3Φ 400 V,50-60 Hz / 3Φ 460 V,60 Hz
