Laboratory and production agitator for medium-sized containers

Streamline your mixing and agitation processes with a versatile agitator designed for flexible operations, adapting effortlessly to various container sizes and minimizing energy consumption for manual and batch production tasks.

Mixes and Agitates Liquids and Slurries Efficiently

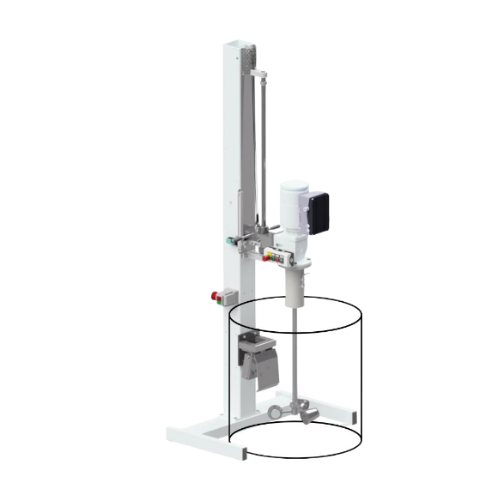

The VISCO JET® VJ400, designed by VISCO JET Rührsysteme GmbH, is an adaptable stand mixer ideal for diverse applications across industries such as ceramics, pharmaceuticals, and food processing. This versatile equipment offers manual, batch, and pilot operations for efficiently mixing liquids and slurries. Its working principle lies in providing precise agitation within containers up to 900 mm in height. The VJ400’s flexibility is enhanced by a range of available drive options, from 1.1 to 1.5 kW, allowing you to tailor the mixing intensity to your specific process needs.

Integrating seamlessly into your production line, the VJ400 features PLC-control with an optional frequency converter for fine-tuning rotor speeds. Designed for safety and ease of use, it includes an integrated work position switch and container recognition system. Constructed with stainless steel components for high corrosion resistance, it is suitable for handling aggressive chemicals and complies with ATEX standards for Zone 1 and Zone 21, ensuring safe operation in explosive environments.

Engineered for easy maintenance, the VJ400 supports quick and hygienic cleaning with its smooth, electropolished surfaces. Additionally, the mixer can be customized with various accessories, such as quick-change couplings and spray-proof lid designs, to cater to your unique production needs.

Benefits

  • Enhances process efficiency with flexible mixing capabilities for diverse container sizes.
  • Improves operational safety through its integrated position switch and automatic container recognition.
  • Offers energy savings with variable-speed motor control reducing overall power consumption.
  • Adapts to hazardous environments with ATEX compliance, ensuring safe use in explosive zones.
  • Facilitates rapid cleaning and maintenance with electropolished surfaces for contamination-free operation.

General


Applications
Süßigkeiten,Bergbau,Seifen,Lebensmittel,Kosmetik,Keramik,Petrochemie,Pharma,Papierherstellung,Getränke,Lacke,Chemie,Milchprodukte,Farben
End products
Sauces,Lubricating oil,Varnish,Acrylic paint,Porcelain tiles,Liquid hand soap,Facial creams,Chocolate bars,Gold ore slurry,Industrial solvents,Yogurt,Prescription pills,Fruit juices,Paper pulp
Steps before
Mixing Preparation,Container Setup,Ingredient Loading
Steps after
Product Transfer,Container Cleaning,Storage
Input ingredients
keramik,kosmetik,seifen,süßigkeiten,lebensmittel,getränke,papier,milchprodukte,farben,lacke,chemie,pharma,bergbau,petrochemie
Output ingredients
verarbeitetes material,gemischtes produkt,gerührte flüssigkeit,hommogene mischung,fertige kosmetikprodukte,lackprodukte,fertige chemikalien,finale produkte aus lebensmitteln,homogenisierte getränke,pharmazeutische produkte,gemischte farben
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistung
1.1 – 1.5 kW
Drehzahleinstellung
Mittels Frequenzumformer
Spannungsversorgung
400 V,Starkstromanschluss
Hubhöhe
500 mm oder 900 mm
Höhe vollständig ausgefahren
2.179 mm (500 mm Hubhöhe) / 2.444 mm (900 mm Hubhöhe)
Höhe eingefahren
2.035 mm (500 mm Hubhöhe) / 2.295 mm (900 mm Hubhöhe)
Zusätzliche Höhe des Stativfuß
40 mm
Material
Stativ
Sicherheitsmerkmale
Arbeitspositionsschalter,Behältererkennung

Operating Characteristics


Height Adjustment
Manual and stepless
Flexibility
500 mm / 900 mm stroke height
ATEX Certification
Zone 1 / 21
Safety Features
Integrated work position switch and container recognition system
Variable Speed Control
Equipped with frequency converter
Mixing Capacity
30L - 200L containers
Driving Power Options
1.1 kW or 1.5 kW
Installation Options
Floor mount or wall mount

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Zone 1,21
CE marking
Yes
2006/42/EU
Machinery Directive
2014/30/EU
Electromagnetic Compatibility
2014/35/EU
Low Voltage Directive
Optional
ATEX directive 2014/34/EU

Physical Characteristics


Machine footprint
Variable with model
Tank height
500 mm or 900 mm
Discharge method
Manual/Automatic
Stirrer material
Stainless Steel 1.4404/1.4571/1.4301
Hub height adjustment
500 mm or 900 mm
Mounting option
Floor or wall mounting
Control panel type
Manual control
Hub height manual adjustment
Handgrip on stand arm
Compact footprint
Yes

Custom Options


Control options
Various control and switch set variants
Drive configuration
1.1 kW or 1.5 kW drive options
Hub height
500 mm or 900 mm
Lid solution
Customized lid solutions available
Container clamping
Optional container clamping mechanism
ATEX variant
Available for Zone 1 or 21
Frequency inverter
Available for speed adjustment
Mounting type
Floor or wall mounting options
Rührorgan compatibility
Compatible with all VISCO JET® Rührorgan solutions
Safety features
Integrated work position switch and container detection
Assembly options
Fast change coupling system
