Lab-scale milling and processing platform

Effortlessly transition from lab-scale research to full production with a versatile milling system that guarantees consistent particle sizes, enabling precise control and product quality across diverse applications.

Facilitates Precise Milling and Screening Operations

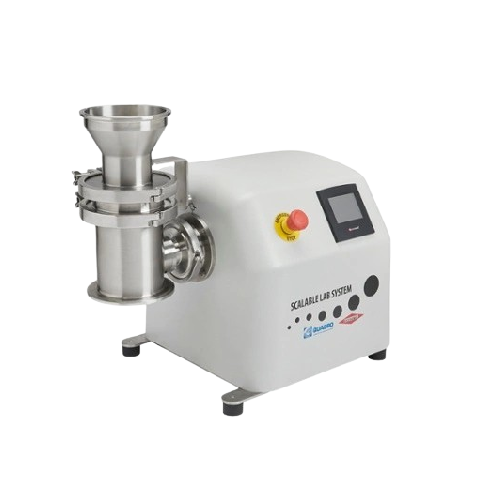

The Scalable Lab System (SLS)™ from Quadro Engineering offers a compact, multi-functional platform for lab-scale milling and screening. This system uniquely integrates conical milling, hammer milling, security screening, fine grinding, and delumping, making it indispensable in pharmaceutical, nutraceutical, food, chemical, and cannabis production. The SLS is designed to ensure consistent particle size distribution, thanks to its adaptable Smart-Detect™ technology, which allows rapid head swaps without setup changes. Supporting a capacity range from 5 grams to 150 kilograms per hour, it enables seamless scaling from R&D to full production. Its ATEX compliance ensures safety in explosive environments, while its stainless steel construction guarantees durability and chemical resistance. Fully compliant with GMP standards, the SLS promises efficient processing with minimal energy consumption, complemented by easy cleaning and maintenance capabilities.

Benefits

  • Ensures precise scaling from lab to production, reducing development time and costs.
  • Increases operational flexibility with interchangeable milling and screening heads.
  • Enhances safety in explosive atmospheres with ATEX compliance.
  • Minimizes energy usage through efficient motor controls.
  • Simplifies maintenance with quick, tool-free head changes.

General


Applications
Food,Chemicals,Nutraceuticals,Pharmaceutical osd,Pharmaceutical apis,Cannabis
End products
Vitamin c tablets,Polymer powders,Instant soup powders,Protein supplements,Ibuprofen granules,Thc distillates
Steps before
Drying,Wet Milling,Pre-Processing,Material Feed Preparation
Steps after
Security Screening,Sterilization,Packaging,Quality Control Testing,Tablet Pressing,Final Product Inspection
Input ingredients
powder,API (Active Pharmaceutical Ingredient),OSD (Oral Solid Dosage) ingredients,nutraceutical ingredients,food ingredients,chemical compounds,cannabis
Output ingredients
fine powder,consistent particle sizes,granulated products,processed APIs,screened materials
Market info
Quadro Engineering is known for its expertise in manufacturing pharmaceutical, food, and chemical processing equipment, particularly in milling, sieving, and deagglomeration solutions. The supplier is renowned for innovation, quality, and reliability in efficient particle size reduction technologies.

Technical Specifications


Capacity
5g to 150+ kg/hr
Capacity
50g to 150+ kg/hr
Capacity
<1 kg to 100 kg/hr
Capacity
<125-2500+ kg/hr
Capacity
5g to 50+ kg/hr
PSD d50
20-300 µm
PSD d50
20-150 µm
PSD d90
60-2000 µm
PSD d90
60-300 µm
MESH SIZE min
150 µm (100 mesh)
MESH SIZE max
6.4 mm (0.25")

Operating Characteristics


Automation level
Smart-Detect™ / PLC
Batch vs. continuous operation
Batch
Changeover time
Seconds with no setup required
CIP/SIP
CIP compatible with fast clean down
Cleaning method
Manual
Energy efficiency
Cost-effective with scalable power
High capacity
Efficient testing protocols
Integrated feed system
Increased containment

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration risk
Yes/No

Physical Characteristics


Compact footprint
Benchtop size
Control panel type
Integrated with Smart-Detect™ technology
Discharge method
Adjustable speed and feed control
Machine footprint
Compact lab system
Feed/discharge method
Interchangeable heads for different processes

Custom Options


Interchangeable Heads
Conical Milling,Hammer Milling,Screening
Smart-Detect™ Technology
Automatic Head Recognition
Screen and Impeller Options
Various Sizes Available
Scalable to Production Scale
Compatible with SDx Series™
Control Integration
Automatic Speed Adjustment
Compact Footprint
Benchtop Size
ATEX Compliance
Certified for Explosive Atmospheres
In-line Design
Spacerless Construction
