Lab mixer for powder formulations

Achieve precise particle mixing and coating with this stand-alone high-shear lab mixer, designed for versatile powder formulation processes, from blending delicate DPI formulations to densifying cosmetic powders.

Mixes, Blends, and Densifies Powder Formulations

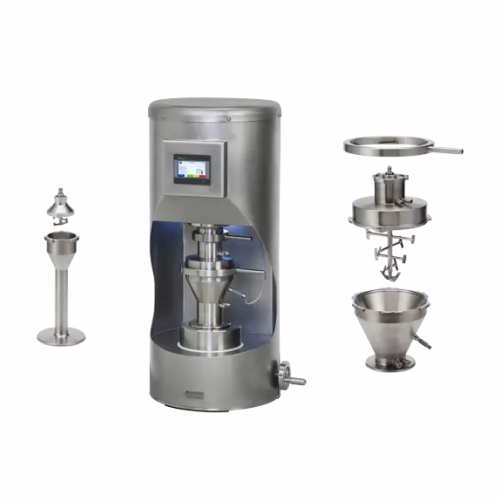

The Mini Cyclomix from Hosokawa Micron is a versatile high shear lab mixer designed for precise powder processing across pharmaceutical, cosmetic, and chemical industries. Utilizing a combined impact and shear mixing principle, the Mini Cyclomix handles a range of processes including blending, coating, and densification. With exchangeable product bowls of 0.1, 1, or 2 liters, it offers flexible batch processing. This mixer excels in creating uniform dispersions and managing particle size, making it ideal for applications like DPI formulations and cosmetic powders. Its design includes jacketed vessels for accurate temperature control and a central bottom discharge valve for complete, contamination-free discharge. Compliant with CIP/SIP for sterile applications, the Mini Cyclomix integrates smoothly into laboratory settings, supporting prototype development and small-scale production.

Benefits

  • Enhances production efficiency by achieving homogeneous mixtures with minimal mechanical energy.
  • Offers precise control with adjustable mixing speed and time for process versatility.
  • Facilitates quick material changeovers with exchangeable product bowls.
  • Ensures contamination-free processing with full discharge and sterile capabilities.
  • Supports diverse applications from R&D to pilot production with scalable design.

General


Applications
Polymers,Chemicals,Detergent powders,Agrochemicals,Cosmetics,Dry powder inhalants (dpi),Toner,Additive manufacturing,Pigments,Catalysts,Pharmaceuticals
End products
Pesticide powders,Inkjet printer toner,Polymer additives,Dpi formulations,Cosmetic foundation powders,Catalytic converter materials,Sunscreen agents,Household detergent granules
Steps before
Drying,Powder formulation,Particle sizing
Steps after
Coating,Packing,Tablet Pressing
Input ingredients
powder particles,pharmaceutical formulations,DPI formulations
Output ingredients
homogeneous blend,coated particles,densified particles,rounded particles
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Mixing capacity
0.1,1 or 2 litres
Temperature control
Jacketed vessels
Discharge method
Central bottom discharge valve
CIP/SIP execution
Possible
Filling rates
30-100% with conical vessel
Shear mixing method
Impact and shear mixing
Automation
Manual / Offline filling and discharging

Operating Characteristics


Working mechanism
Impact and shear mixing
Batch vs. continuous operation
Batch
CIP/SIP
Sterile,CIP/SIP execution possible
Changeover time
Exchangeable product bowls
Filling and discharging
Offline possible
Automation level
Manual / PLC

Material Compatibility


Biological compatibility
Yes
Cleanability
CIP/SIP capable
Abrasion resistance
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
Compact
Product bowl volume
0.1,1,or 2 litres
Discharge method
Central bottom discharge valve
Vessel shape
Conical

Custom Options


Exchangeable product bowls
Volumes 0.1,1,or 2 litres
Temperature control
Jacketed vessels
Discharge method
Central bottom discharge valve
