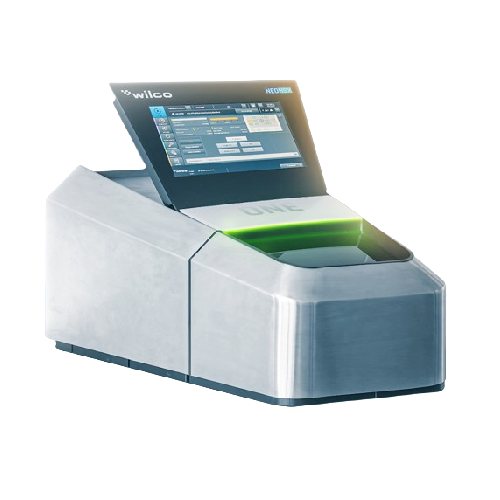

Lab headspace analyzer for small volume parenterals

Enhance your quality control with precise gas concentration measurements in sterile pharmaceuticals, ensuring product integrity through non-destructive headspace analysis about your different vial, syringe, or ampoule packaging forms.

Measures Headspace Gas Concentrations in Sterile Containers

The NEO HSX Series from WILCO AG offers advanced headspace analysis for sterile pharmaceutical containers, utilizing laser absorption spectroscopy to accurately measure oxygen and carbon dioxide levels non-destructively. Key for ensuring container closure integrity, it’s designed for use with vials, syringes, and ampoules in lab-scale operations. What sets the NEO HSX apart is its precision, achieving up to 50% lower standard deviation with its fourth-generation laser technology. The system supports both manual and robot-assisted inspections, offering flexibility in sample handling. Ideal for pharmaceutical manufacturers, it integrates seamlessly into R&D and quality control processes while ensuring compliance with ISO Class 7 environments and 21 CFR Part 11 standards. The intuitive MAVIS operation system with customizable widgets enhances user interaction, and the system features a guided suitability test to secure operator-independent results.

Benefits

  • Enhances quality assurance with precise, non-destructive headspace analysis.
  • Minimizes operator error through intuitive guidance and automated processes.
  • Boosts productivity by facilitating easy method transfer to high-speed production.
  • Ensures regulatory compliance with 21 CFR Part 11 and ISO Class 7 standards.
  • Offers flexible sample handling to accommodate diverse pharmaceutical packaging.

General


Applications
Bfs bottles,Syringes,Iv bags,Bfs cards,Vials,Ampoules,Sterile pharmaceuticals,Small volume parenterals,Large volume parenterals
End products
Insulin vials,Vaccines,Sterile ampoules,Monoclonal antibodies,Injectable antibiotics,Pre-filled syringes,Ophthalmic solutions,Infusion bags,Saline solution iv bags,Contrast media
Steps before
Sample Preparation,Container Filling,Package Sealing
Steps after
Quality Control,Data Analysis,Final Product Packaging
Input ingredients
small volume parenterals,large volume parenterals,BFS cards,BFS bottles,IV bags,vials,ampoules,syringes,aerosol cans,steel cans,pharmaceutical packaging
Output ingredients
inspected vials,inspected syringes,inspected ampoules,inspected BFS cards,inspected BFS bottles,inspected IV bags,leak-tested aerosol cans,leak-tested steel cans
Market info

Technical Specifications


Measurement Accuracy
Up to 50% higher precision
Automation
Intuitive MAVIS operation system
Measurement Types
Non-destructive O2 and CO2 laser absorption spectroscopy
Sample Types
Vials 1 - 100 ml,ampoules 1 - 20 ml,syringes 0.5 - 10 ml
Standard Deviation
50% lower compared to previous generation
Laser Heads
4th generation
NEO HSX DUO with two lasers,NEO HSX ONE with one laser
Operator Guidance
Support by LED status bar and guided system
Environment Compatibility
ISO Class 7 environments
Data Compliance
21 CFR part 11 compliance
Connectivity
OPC UA server connectivity
Sample Holders
Exchangeable with position monitoring
Operations Mode
GMP testing and development mode
Power Backup
Integrated UPS for prevention of data loss

Operating Characteristics


Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Batch vs. continuous operation
Batch / Inline Continuous
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


GMP Compliance
Yes
21 CFR Part 11
Compliant
ISO Class 7
Certified
USP 1207
Compliant
ASTM F2338
Compliant

Physical Characteristics


Machine footprint
Compact
Sample holder type
Exchangeable,position monitored
Control panel type
MAVIS operation system,12.1" color display
Shield for environmental protection
Available
Size range of containers
Vials

Custom Options


Control panel type
MAVIS operation system
Exchangeable sample holders
Plug,Play
Laserhead Options
Single or Dual (O2 and CO2)
Interface Customization
Widgets-based
Position Monitoring System
Available
Customizable Interface
Yes,via widgets
Sample Holder Type
Exchangeable
