Integrated packaging system for valve and Ffs bags

Streamline your packaging operations with a versatile system designed to handle a range of products, from cement to pasty substances, ensuring precise filling and sealing while maintaining a dust-free environment.

Packs and Seals Diverse Products Efficiently

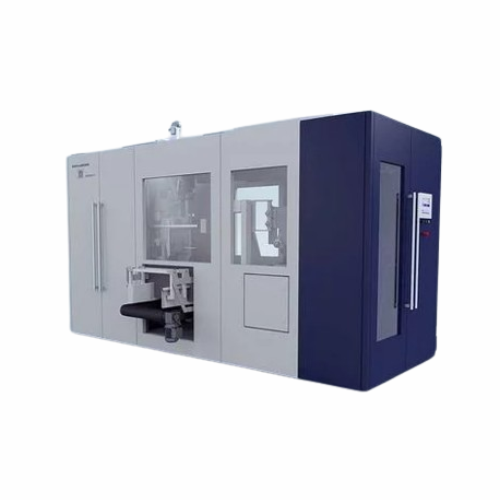

The INTEGRA® series from Haver & Boecker is a fully automated packaging solution tailored for diverse industrial needs. Designed for high-efficiency packing of powders, granules, and liquids, it utilizes a modular system with valve bag and tubular film options. The INTEGRA® integrates seamlessly into production lines, offering up to 1,200 bags per hour capacity, ensuring precise filling with advanced SEAL technology. Each unit is encased in a dust-tight housing, featuring automated bag handling and sealing, supported by SIEMENS TIA portal control for streamlined operations. With options for remote diagnostics and monitoring, it supports operational continuity and efficiency. Available in durable materials, it’s engineered for corrosion resistance, making it ideal for cement, chemical, and building material industries, ensuring compliance with industry standards and facilitating easy maintenance with optional engineering support.

Benefits

  • Boosts productivity with a throughput of up to 1,200 bags per hour.
  • Enhances operational flexibility with configurable valve and tubular film modules.
  • Ensures precise product handling and sealing with advanced SEAL technology.
  • Minimizes environmental impact with a dust-tight, enclosed system.
  • Facilitates remote monitoring and diagnostics for reduced maintenance costs.

General


Applications
Cement,Flour-type products,Building materials,Pasty products,Chemical products,Liquid products,Minerals,Granular products,Powder products
End products
Detergent powder,Baking flour,Washing powder,Cornstarch,Tomato paste,Portland cement,Tile adhesive,Wall plaster,Motor oil,Fertilizer granules
Steps before
Material Handling,Product Mixing,Product Pre-processing
Steps after
Bag Sealing,Quality Inspection,Transport and Storage
Input ingredients
cement,building materials,chemical products,powder,flour-type products,granular products,liquid products,pasty products
Output ingredients
valve bags,FFS open-mouth bags,5 kg valve bag,film bags
Market info
Haver & Boecker is renowned for its expertise in manufacturing advanced industrial ETO equipment, specializing in material handling, packing, and screening technology for industries like mining, construction, and chemicals, known for innovation and quality.

Technical Specifications


Automation
Plug,Play,Fully Automated
Bag Type
Valve Bags / FFS Open-mouth Bags
Capacity
300–1200 bags/hour (5-40 bags/min)
Filling Spouts
1 to 4 Spouts
Enclosure
Dust-Enclosed Housing
SEAL Technology
Securely Closed Valve
Filling Method
Turbine or Air Pressure
Control Technology
Siemens TIA Portal Control,MEC 4.0
Expansion Options
Full Digital Equipment for Monitoring,Remote,and Diagnostics
Filling Accuracy
Optimized De-Aeration with Vibrating or Vacuum Rods
Valve Sealing
SEAL Upgrade Available

Operating Characteristics


Working Mechanism
Plug,Play integration
Integrated Steps
Filling,Sealing,Packaging
Automation Level
Fully automated
Changeover Time
Minimal
Batch vs. Continuous Operation
Batch
Energy Efficiency
Optimized for reduced consumption
Control System
MEC® 4.0 with Siemens TIA portal
Monitoring and Diagnostics
QUAT²RO® System Intelligence
Flexibility in Bag Type
Valve bags and tubular film
Cleaning Method
Dust-tight enclosed housing
Air Incorporation Control
Intelligent ventilation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Type of products
Building materials,minerals,chemicals

Physical Characteristics


Machine footprint
Compact housing
Number of filling spouts
1 to 4
Bag type compatibility
Valve bags / Open-mouth bags
Material of construction
Paper,woven PP,or PE
Enclosure type
Dust-tight housing

Custom Options


Control panel type
MEC® 4.0 operating display
Integration possibilities
Plug,Play
Filling module
T-module (turbine) / L-module (air)
Bag type
Valve / Tubular film
Filling spouts
1 to 4 spouts
Optional upgrades
SEAL technology
Automatic saddle height adjustment
Yes
QUAT²RO® monitoring
Available
QUAT²RO® remote service
Available
QUAT²RO® analytics
Available
