Injection stretch-blow molding system for Pet containers

For manufacturers aiming to produce versatile, high-quality PET containers efficiently, this system offers rapid changeovers and low energy consumption, ensuring smooth integration into production lines while maintaining strict design specifications.

Produces PET Containers in Single-Stage Operation

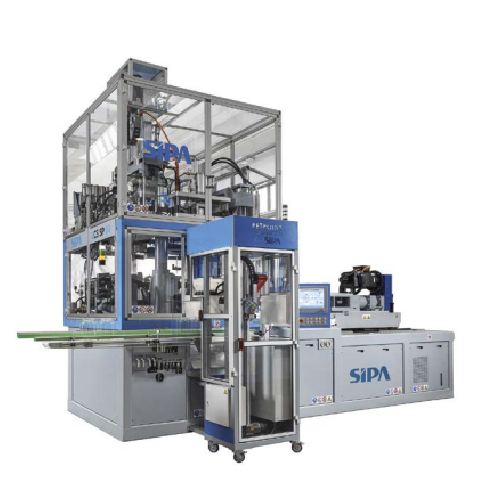

The ECS SP series from SIPA, including the ECS SP 80 and ECS SP 25, are single-stage injection stretch-blow molding machines designed for the efficient production of specialized PET containers. These models facilitate quick changeovers between product configurations, making them ideal for manufacturers in pharmaceuticals, personal care, and food industries. The machines utilize a hybrid system combining servo-electric drives and hydraulics, optimizing energy consumption and reducing carbon footprint. With capabilities to produce containers as small as 20 mL, they cater to diverse end-products like travel-size shampoo bottles and liquid medicine vials. The compact layout and clean production environment make them suitable for food and pharma applications, and they are fully integrable into continuous, high-speed production lines. The ECS SP systems accept molds from major competitors, enhancing flexibility and compatibility.

Benefits

  • Optimizes energy efficiency with hybrid drives, reducing operational costs.
  • Enhances production flexibility with quick mold changeovers, minimizing downtime.
  • Accommodates a wide range of container designs, increasing versatility and market adaptability.
  • Maintains a clean production environment, ideal for food and pharmaceutical applications.
  • Integrates legacy molds from competitors, improving cost-effectiveness and resource utilization.

General


Applications
Personal care,Home care,Food,Detergents,Miniature spirits,Cosmetics,Motor oil,Pharmaceuticals
End products
Miniature whiskey bottles,Synthetic motor oil containers,Liquid medicine vials,Household spray cleaner bottles,Travel-size shampoo bottles,Hotel amenity lotion bottles,Detergent pods containers,Condiment squeeze bottles
Steps before
Material Dehumidification,Material Melting
Steps after
Bottle Orientation,Packing
Input ingredients
PET,rPET,regrind PET,Polystyrene (PS),TritanTM,dehumidified material,melted material
Output ingredients
containers,bottles,cosmetic containers,personal care containers,food containers,pharmaceutical containers,miniature spirits containers,wide mouth jars,oval containers,asymmetrical containers,small size containers,long neck containers,light barrier containers,gas barrier containers
Market info

Technical Specifications


Maximum Container Volume
12.5 L
Minimum Container Volume
20 mL
Mold Changeover Time
4 to 5 hours
Injection Clamping Force
Adjustable Hydraulic Pressure
Power Consumption
20 kWh
Hydraulic Oil Tank Capacity
220 L
Max Output
7200 B/HOUR
Neck Diameter
Maximum 130 mm
Container Type
PET
Cycle Time
Optimized based on Preform Length
Automation
Servo-Electric Drives
Servo Motor Energy Recovery
Yes
Energy Efficiency
High

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
4 to 5 hours
Energy efficiency
High energy efficiency due to hybrid configuration (servo electric drives and hydraulics)
Automation level
Servo-electric and hydraulic
Compact layout
Extremely compact
Mold changeovers
Quick
Legacy molds compatibility
Accepts molds from competitors
Preform handling
Neck handling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Type of Container
PET bottles / Jars
Product Application
Cosmetics / Personal care / Pharmaceuticals

Physical Characteristics


Compact footprint
Extremely compact lay-out
Discharge method
Independent bottle discharge on operator’s side
Control panel type
Control panel with adjustable hydraulic pressure
Machine footprint
High energy efficiency hybrid configuration
Mold compatibility
Accept legacy molds from other ISBM system suppliers
Mold changeover time
4 to 5 hours for a complete changeover

Custom Options


Control panel type
Flexible/customized control panel
Mold compatibility
Accepts legacy molds
Quick changeover capability
4 to 5 hours full changeover
Servo-electric and hydraulic configuration
Hybrid configuration
Neck and shoulder design flexibility
Specialized for unique designs
