Industrial under vacuum homogenizer

Optimize your batch production with an under-vacuum homogenizer that ensures precise mixing and homogenization of complex formulations, crucial for achieving consistent product quality in nutraceuticals, cosmetics, and pharmaceuticals.

Mixes and Homogenizes Under Vacuum Conditions

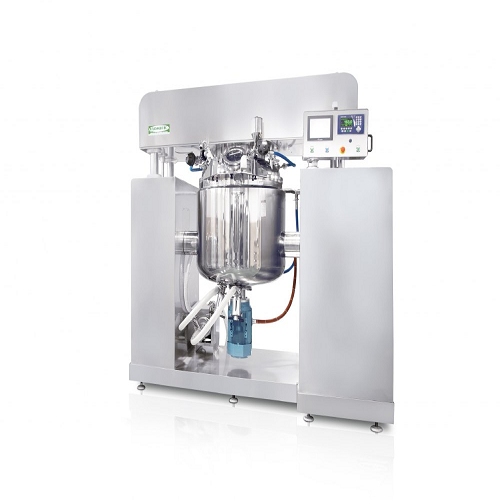

The Axomix 1500 – 6000 from Axomatic is an industrial under-vacuum homogenizer tailored for cosmetic, pharmaceutical, food, and chemical manufacturers. It features contra-rotating slow mixing with Teflon scrapers and a homogenizing turbine reaching speeds up to 3,000 rpm to ensure uniform emulsions and viscosities. Designed for applications like dietary supplements, medicinal creams, and perfume formulations, it integrates seamlessly into batch processing lines, using a fixed vessel with central bottom valves for vacuum material intake and discharge. Optional hydraulic lifting and advanced Cleaning-In-Place (CIP) systems facilitate maintenance and operational efficiency. The equipment consumes minimal energy with its 0.50 kW mixing motor and 3 kW turbine motor. For compliance, it aligns with industry standards necessary for GMP and FDA benchmarks. This homogenizer can be customized with options such as heating by steam and printing of production data, ensuring a tailored fit for your specific production needs.

Benefits

  • Enhances product consistency with precision vacuum homogenization.
  • Streamlines batch processing, reducing production time and costs.
  • Maintains high energy efficiency with optimized motor controls.
  • Ensures compliance with pharmaceutical and cosmetic industry standards.
  • Facilitates easy cleaning and reduced maintenance downtime with CIP systems.

General


Applications
Personal care products,Fine chemicals,Nutraceuticals,Cosmetics,Essential oils,Emulsions,Lotions,Creams,Pharmaceuticals
End products
Facial moisturizers,Perfume formulations,Body lotions,Medicinal creams,Hair conditioners,Emulsifying agents,Aromatherapy oils,Anti-aging creams,Herbal extracts,Pharmaceutical ointments,Dietary supplements
Steps before
Ingredient Preparation,Material Handling,Pre-Mixing
Steps after
Quality Inspection,Packaging,Data Recording
Input ingredients
raw materials,undervacuum raw material,essences
Output ingredients
finished product
Market info
Axomatic, part of the Marchesini Group, is known for manufacturing high-quality automated machinery for packaging, particularly in the cosmetic, pharmaceutical, and food industries, with a reputation for innovation and customization in engineered-to-order equipment.

Technical Specifications


Mixing motor power
0.50 Kw
Turbine motor power
3 Kw
Vacuum pump power
0.75 Kw
Heating elements power
6 Kw
Homogenizing turbine speed
up to 3,000 rpm
Hydraulic lifting of the cover
Optional
Cleaning system
Spray balls
Heating method
Steam
Control panel type
T,S color

Operating Characteristics


Contra-rotating mixing
Slow mixing with teflon scrapers
Homogenizing turbine speed
Up to 3,000 rpm
Automation level
Controlled via T,S color control panel
Cover lifting method
Hydraulic lifting (optional)
Vacuum processing
Central bottom valves for vacuum raw material intake or product discharge
Material inspection
Inspection window with light
Cleaning method
Cleaning by spray balls
Heating method
Steam

Physical Characteristics


Mixing method
Contra-rotating
Scraper material
Teflon
Homogenizing speed
Up to 3,000 rpm
Vessel type
Fixed
Cover lifting method
Hydraulic (Optional)
Inspection window
With light
Sampling port
Central bottom valves

Custom Options


Control panel type
Color T,S display
Hydraulic lifting
Optional
Cleaning system
Spray balls
Printing of production data
Available
