Industrial melting unit for chocolate and powders

Enhance your production efficiency by seamlessly melting and homogenizing a variety of products, from chocolate and fats to powders and waxes, with this versatile industrial unit, ensuring optimal heat transfer for consistent results in both batch and continuous operations.

Melts and Homogenizes Chocolate, Fats, and Powders

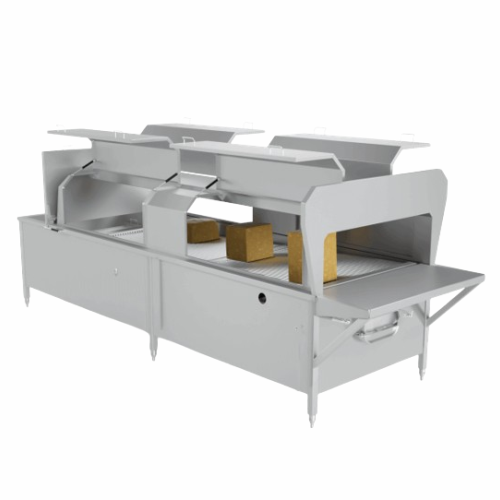

Gpi’s Stainless Steel Industrial Melting Unit is engineered for the precise melting and homogenizing of chocolate, fats, and powders across food, chocolate, and cosmetics industries. Its unique melting grid design enhances the heat transfer surface, allowing higher grid temperatures without product damage. This feature ensures effective melting processes for end-products like chocolate bars, cocoa butter, and vegan butter. The unit can process from 100 kg to 6000 kg per hour in batch, continuous, or inline operations, with models ranging from the MU50 to MU350 to suit various production scales. Equipped with manual or CIP cleaning options, it integrates seamlessly into existing production lines, with automated control panels and optional agitators for homogeneous product consistency. Constructed from durable stainless steel (available in 304 or 316L), it offers corrosion resistance and reliability for rigorous industrial use. Additionally, Gpi provides customization options and engineering support to tailor the unit for specific production needs, ensuring compliance with industry standards and optimizing operational efficiency.

Benefits

  • Enhances production efficiency by processing up to 6000 kg per hour.
  • Prevents product degradation with a unique grid design that allows higher temperature operation.
  • Streamlines cleaning and reduces downtime with CIP capability.
  • Offers flexibility and cost savings through easy integration and customization for specific production needs.
  • Ensures durability and longevity with stainless steel construction suitable for corrosive environments.

General


Applications
Fats,Sugars,Waxes,Peanut butter,Butter,Margarine,Chocolate,Powders
End products
Cocoa butter,Powdered milk,Icing sugar,Vegan butter,Peanut spread,Clarified butter,Beeswax candles,Chocolate bars
Steps before
Grinding,Conveying,Ingredient Weighing,Pre-heating
Steps after
Storage,Blending,Emulsification,Packaging
Input ingredients
chocolate,fats,powders,blocks of fat,margarine,butter,pellets,sugars,peanut butter,waxes
Output ingredients
melted chocolate,melted fats,melted powders,melted margarine,melted butter,melted peanut butter,melted waxes
Market info
GPI De Gouwe is known for manufacturing bespoke stainless steel tanks and processing equipment, specializing in the food, chemical, and pharmaceutical industries, with a reputation for delivering high-quality, custom-engineered solutions.

Technical Specifications


Melting Capacity
100-6000 kg/h
Melting Surface Area
0.5–15 m²
Automation
Manual / Automatic
Cleaning Method
CIP / Manual
Material
Stainless Steel (304,316L)

Operating Characteristics


Melting capacity
100–6000 kg/h
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Automation level
Manual / PLC Control
Heat transfer efficiency
High due to unique melting grid
Customization capability
Customizable options available

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel 304,316L
Cleanability
CIP (Clean in Place) capable
Biological compatibility
Food grade materials
Density/particle size
Various particle sizes

Physical Characteristics


Machine footprint
Varies based on model,0.5m² to 15m²
Melting surface area
0.5m² to 15m²
Material of construction
Stainless steel (304,316L)
Control panel type
Integrated
Discharge method
Manual or automatic valves
CIP capability
Manual or CIP cleaning
Heating method
Melding grid with large heat transfer surface
Customization options
Agitator,load cells,folding lids,extra heating plates
Melting capacity
100kg/h to 6000kg/h

Custom Options


Control panel type
Integrated control panel
Cleaning options
Manual or CIP cleaning
Valve type
Manual or automatic valves
Load cell integration
Possible
Additional heating plates
Extra heating plates available
Material type
Different types of stainless steel (304,316L)
Lid type
Different types of folding lids
