Industrial low temperature freeze dryer for high sugar or acid content products
For processing challenging high sugar or acid content products, achieve efficient moisture removal and sublimation while maintaining product integrity, ensuring your production line handles delicate materials with precision and reliability.

Freeze-Dries High Sugar and Acid Content Products

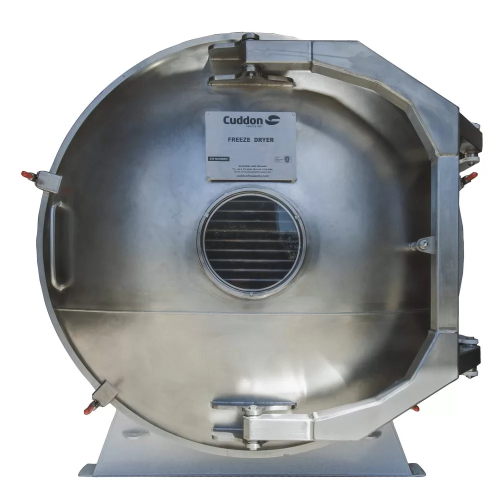

The FD1200LT Freeze Dryer from Cuddon Freeze Dry is designed specifically for freeze-drying products with high sugar and acid content. It operates using an ice coil set at extremely low temperatures, controlled by R507 refrigerant, to effectively manage the sublimation process. Ideal for industries like food processing and archiving, it produces end-products such as fruit preserves, cannabis extracts, and dehydrated documents. Featuring a substantial shelf capacity of 113.7 m² across 19 shelves, it can sublimate up to 1200 kg of ice within 24 hours. The system is PLC-controlled for precise operations and integrates easily into existing production lines. It offers significant energy efficiency, with an estimated energy consumption of 1.7 kWh/kg, optimized by the Temper 55 heating/cooling medium. Built to meet various global regulatory requirements, the FD1200LT is equipped with food-grade anodized aluminum product trays, available for high capacity batch operations across different product types, including solids and liquids. For customization and enhanced support, the plant equipment is provided on a separate skid, facilitating easier installation and maintenance.
Benefits
- Ensures precise moisture removal in challenging high sugar and acid content applications.
- Increases energy efficiency, using only 1.7 kWh/kg, lowering operational costs.
- Facilitates integration with existing production lines through modular plant skid design.
- Supports diverse industries with a versatile design for food, pharmaceutical, and archival products.
- Operates under strict compliance standards, ensuring global regulatory alignment.
- Applications
- Food,High acid content products,High sugar content products,Documents,Cannabis,Dairy products
- End products
- Cannabis oil,Paper archives,Dehydrated legal documents,Jams,Cheese powder,Milk powder,Fruit preserves,Tomato paste,Cannabis extracts,Fruit juices
- Steps before
- Product Preparation,Loading,Pre-Freezing
- Steps after
- Moisture Analysis,Unloading,Packing
- Input ingredients
- high sugar content products,high acid content products,wet product,1200 kg wet product
- Output ingredients
- dry product,240 kg dry product
- Market info
- Cuddon Freeze Dry is known for manufacturing high-quality freeze-drying equipment. The company specializes in engineered-to-order solutions, offering expertise in designing and building customized systems for diverse industrial applications.
- Shelf capacity
- 113.7 m² on 19 shelves
- Performance ice test
- 1200 kg ice sublimated in sub 24 hrs
- Average yield of dry product per cycle
- 240 kg based on 1200 kg wet product @ 80% moisture
- Potential heat energy recovery
- 110 kW
- Peak power requirement
- 180 kW,50 or 60 Hz
- Estimated Energy consumption
- 1.7 kWh / kg
- Estimated Typical operational power consumption
- 84 kW
- Ice condenser capacity
- 1200 kg
- Ice condenser temperature
- -55°C
- Shelf temperature range
- -35°C to 70°C
- Shelf spacing
- 35 mm
- Product tray material
- Food grade anodised aluminium
- Number of product trays
- 224 per cycle (2 sets supplied)
- Heating / cooling medium
- Temper 55
- Number of doors on product chamber
- 2 (one on each end)
- Dimensions (Chamber Footprint)
- 5.12m (L) x 2.80m (W) x 2.58m (H)
- Dimensions (Plant skid footprint)
- 5.22m (L) x 2.00m (W) x 2.35m (H)
- Weight
- 18,200 kg
- Product trays size
- 1025mm x 495mm x 20mm
- Automation level
- PLC-controlled
- Batch vs. continuous operation
- Batch
- Energy efficiency
- 1.7 kWh/kg
- Cooling medium
- Temper 55
- Defrost system
- Manual/Automatic
- Cleaning method
- Manual
- Cleanability
- High due to smooth surfaces
- Corrosive resistance (e.g. acids)
- High due to food-grade anodised aluminium
- Biological compatibility
- Suitable for food products
- Density/particle size
- Accommodates various densities
- FDA Materials
- Food grade anodised aluminium
- Machine footprint
- Chamber
- Plant skid footprint
- 5.22m (L) x 2.00m (W) x 2.35m (H)
- Weight
- 18,200 kg
- Product trays size
- 1025mm x 495mm x 20mm
- Number of product trays
- 224 per cycle (2 sets supplied)
- Shelf capacity
- 113.7m2 on 19 shelves
- Number of doors on product chamber
- 2 (one on each end)
- Cooling medium
- R507 refrigerant
- Plant equipment configuration
- Plant on separate skid
- Control panel type
- Customizable (not specified)
