Industrial jetstream mixer for homogeneous mixing

Achieve consistent product quality with precise micro and macro mixing by integrating an industrial jetstream mixer into your process. This innovative solution ensures complete mass transfer and suspension of heavy sediments without air ingress, optimizing your production line for continuous operations.

Mixes, Homogenizes, and Suspends Liquid Products

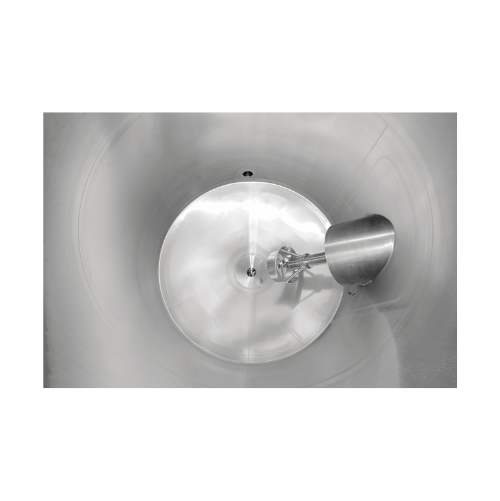

The YSTRAL Jetstream Mixer is engineered for high-performance mixing and suspension tasks across various industries such as chemicals, pharmaceuticals, and cosmetics. Utilizing the rotor-stator principle, it ensures effective micro and macro mixing without air ingress, evenly distributing contents with a vertical flow that prevents vortex formation. Capable of mixing adhesive, emulsion, syrup, and paint formulations, the Jetstream Mixer transforms up to 90% of energy into fluid motion, optimizing efficiency. It offers flexible installation options, including top or lateral tank entry and lifting frame operation. Built with stainless steel components for corrosion resistance, this mixer suits demanding environments, with options for explosion-resistant designs and certifications, tailored to meet industry-specific safety standards.

Benefits

  • Ensures complete mixing and suspension for uniform product quality.
  • Converts up to 90% of energy into efficient fluid motion to lower operational costs.
  • Eliminates air ingress, preventing contamination and maintaining product integrity.
  • Suitable for open containers, enhancing flexibility and reducing securement needs.
  • Provides robust operation in versatile environments with corrosion-resistant materials.

General


Applications
Chemicals,Food,Household products,Cosmetics,Coatings and inks,Paints,Pharmaceuticals
End products
Emulsion paint,Cough syrup,Adhesives,Chocolate sauce,Emulsions,Shampoo,Syrups,Nail polish
Steps before
Powder handling,Liquid handling,Emulsification
Steps after
Sterilization,Packing,Coating
Input ingredients
Output ingredients
Market info
Ystral is known for its expertise in mixing, dispersing, and powder wetting technologies, providing high-quality engineered-to-order equipment solutions for industries such as chemicals, pharmaceuticals, and food, renowned for innovation, reliability, and efficiency in process optimization.

Technical Specifications


Power
0.5 – 55 kW
Voltage
230 / 400 V,50 / 60 Hz,custom voltages
Speed
750 / 1,500 min-1,1,500 / 3,000 min-1,stepless up to 3,600 min-1 with frequency converter
Seal Type
Lip seal,mechanical seal single or double
Explosion-resistant design
Yes
Material of Construction
Stainless steel 1.4404 (AISI 316 L),special material
Bearing Flange Material
Aluminium (lacquered),stainless steel 1.4404 (AISI 316 L)

Operating Characteristics


Working mechanism
Rotor-stator principle
Micro and macro mixing
Effective
Air integration control
No air ingress
Vertical mixing
Complete mass transfer
Energy efficiency
Up to 90% conversion to vertical flow
Installation options
Above,lateral,or lifting frame
Sediment suspension
Targeted currents
Protection of rotating parts
Protected against unintended access
Container requirement
No need for securing open containers

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Mixing type
Micro-mixing / Macro-mixing
Container compatibility
Various sizes,tank levels
Container type
Open / Closed
Mixing profile
Optimum
Mixing installation
Tank-top / Lateral / Lifting frame
Homogeneity requirement
Complete and homogeneous
Sediment suspension
Heavy sediments
Vortex formation
None
Air ingress control
None
Product yield
High

Physical Characteristics


Discharge method
Vertical mixing flow
Compact footprint
Yes
Rotor-stator principle
Effective micro and macro mixing
Vortex formation control
No vortex formation

Custom Options


Explosion-resistant design
Available
Custom voltages
230 / 400 V,50 / 60 Hz
Seal type
Lip seal,mechanical seal single or double
Material for diving part
Stainless steel 1.4404 (AISI 316 L),special material
Bearing flange material
Aluminium (lacquered),stainless steel 1.4404 (AISI 316 L)
Speed control
Stepless with frequency converter
