Industrial freezer for ice cream production
Achieve consistent ice cream quality with precision freezing and texture control, minimizing waste while ensuring smooth operation through advanced start-up and freeze-up protection features.
Freezes and Controls Texture of Ice Cream

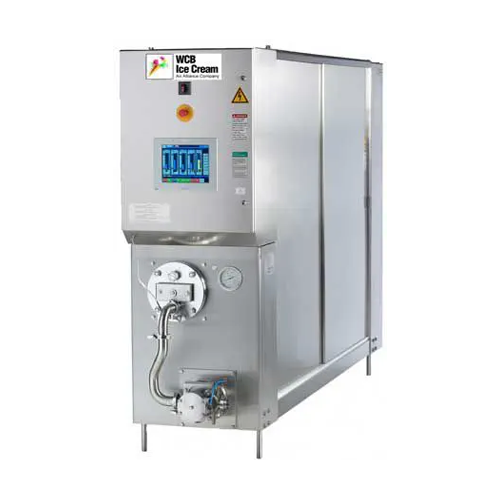

The WS Series from Gram Equipment offers a highly reliable solution for continuous ice cream production, designed to meet 3A sanitary and quality standards. This equipment stands out with its ability to deliver consistent texture and low deviation levels, making it ideal for ice cream bars, cones, tubs, gelato, sorbet, frozen yogurt, and soft serve ice cream. With a capacity range of 100 to 3,200 liters per hour, it ensures efficient throughput in demanding processing environments.
Key features include a smart start system and multi-language HMI for minimal start-up rework, and an air-purge function for quick cylinder draining, reducing downtime. The WS Series integrates seamlessly with existing production lines and minimizes waste with precise process control and freeze-up protection. Operating at low RPMs, it conserves energy while maintaining production quality.
Constructed from robust materials, it is compatible with CO2 refrigeration systems and offers reduced maintenance due to its efficient pump, knife, and dasher design. Easy access for inspection and service, combined with options for RFID-based access control, ensure user-friendly and secure operation. The WS Series also supports future-proof customization and engineering support to meet specific production requirements.
Benefits
- Enhances product consistency with a low deviation rate of less than 0.6%.
- Lowers operational costs by reducing maintenance time by up to 30%.
- Minimizes waste through a smart start system, cutting rework by up to 40%.
- Conserves energy with low RPM operation suitable for CO2 refrigeration.
- Simplifies maintenance with quick, secure access and user-friendly interface.
- Applications
- Frozen desserts,Ice cream
- End products
- Gelato,Ice cream tubs,Soft serve ice cream,Ice cream cones,Ice cream bars,Frozen yogurt,Sorbet
- Steps before
- Ingredient mixing,Pre-chilling,Homogenization
- Steps after
- Ice cream packing,Storage,Distribution
- Input ingredients
- ice cream mix,cream extension,ingredients for ice cream
- Output ingredients
- smooth ice cream,creamy ice cream texture,ice cream with optimum texture and mouthfeel
- Market info
- Gram Equipment is known for manufacturing innovative industrial ETO equipment for the ice cream industry, offering advanced technology solutions and a strong reputation for high-quality, reliable machinery tailored to customer needs.
- Capacity
- 100–3,200 l/h
- Start-up volume
- Less than 12 L
- Deviation level
- Less than 0.6%
- Operation RPM
- Low RPM
- Automation
- Smart Start software
- Refrigeration readiness
- Ready for CO2 refrigeration
- Viscosity control
- Analog injection valve
- Air incorporation control
- Yes
- Automation level
- Smart-Start with multi-language HMI
- Batch vs. continuous operation
- Continuous
- Changeover time
- Quick start-up (<12 L rework)
- CIP/SIP
- 3A Sanitary Standards compliant
- Cleaning method
- Air-Purge for quick cylinder draining
- Energy efficiency
- Low RPM operation saves energy
- Cleanability
- 3A Sanitary Standards
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact design
- Capacity range
- 100-3,200 l/h
- Model range
- Wide and unmatched
- Control panel type
- Multi-language HMI
- Control panel type
- Multi-language HMI
- Integration options
- Smart Start with ingredient feeders
- Operation control
- Smart start software
- Access control
- RFID tag for different access levels
