In-process weighing system for capsules and tablets

Ensure precise dosing and consistent quality with a format-free system that reliably weighs and inspects every capsule and tablet in your production line.

Weighs and Inspects Capsules and Tablets

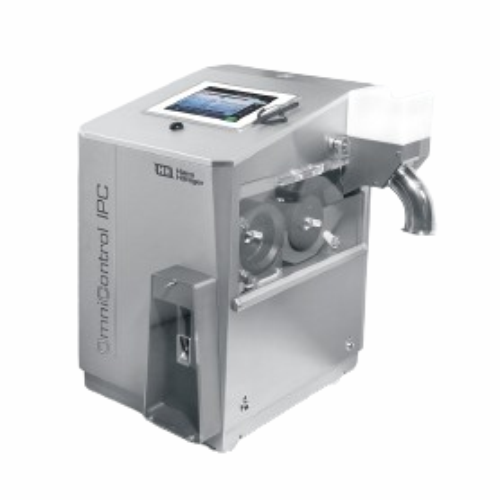

The OmniControl IPC from Harro Höfliger is a format-free, in-process weighing system designed specifically for pharmaceutical manufacturers. This system stands out for its ability to perform accurate random inspections of capsules and tablets using the patented rotary star principle, ensuring precise weight determination with minimal maintenance. Capable of handling up to 20 cycles per minute, it addresses the need for continuous, automatic weight monitoring in the production of hard gelatin capsules, soft gel capsules, effervescent tablets, and more. The system’s advanced weighing cell facilitates the sorting of compliant and non-compliant products, enhancing product uniformity and regulatory compliance. Featuring integrated automation with peripheral connectivity via standard interfaces, it seamlessly fits into high-speed production lines and supports a feedback loop for automatic fill weight regulation. The OmniControl IPC complies with the highest pharmaceutical industry standards and offers gentle product handling through its vacuum suction wheel and pocket wheel design.

Benefits

  • Enhances process reliability with format-free weighing and inspection.
  • Reduces maintenance needs with a low-maintenance design.
  • Increases production efficiency by eliminating setup times.
  • Ensures consistent product quality through automatic weight regulation.
  • Facilitates seamless integration with existing production systems via standard network interfaces.

General


Applications
Pharmaceutical capsules,Pharmaceutical tablets,Coated pills,Customized products,Tablets,Capsules
End products
Personalized medication doses,Film-coated pills,Modified-release tablets,Chewable tablets,Custom nutraceutical supplements,Sustained-release capsules,Soft gel capsules,Enteric-coated tablets,Effervescent tablets,Hard gelatin capsules
Steps before
Capsule filling,Tablet coating,Product assembly
Steps after
Quality control,Packaging,Product assembly
Input ingredients
capsules,tablets,coated pills,customized products
Output ingredients
100% weighed capsules,100% weighed tablets,100% weighed coated pills,100% weighed customized products
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
max. 20 cycles/min
Measuring range
0 - 2,000 mg
Measuring accuracy
± 2 mg at 3 Sigma

Operating Characteristics


Working mechanism
Rotary star principle
Automation level
Automatic trend regulation
Feedback loop integration
Automatic fill weight regulation
Changeover time
No setup times
Cleaning method
Gentle product handling

Material Compatibility


Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact footprint
Discharge method
Vacuum suction wheel and pocket wheel
Control panel type
Operator-friendly interface
Feed method
Automatic rotary star principle
Handling capability
Capsules,tablets,coated pills

Custom Options


Control Panel Type
Touchscreen HMI
Integration Possibilities
MES,ActiveDirectory,OPC
Feedback Loop
Automatic trend regulation
Peripheral Network Compatibility
Customer-specific IT network integration
