In-line mixer for liquid-liquid and solid-liquid processes
Optimize your mixing operations with an efficient solution that seamlessly integrates into your production line, ensuring precise emulsification and consistent dispersions for high-quality end products.

Mixes, Disperses, and Emulsifies Liquids and Solids

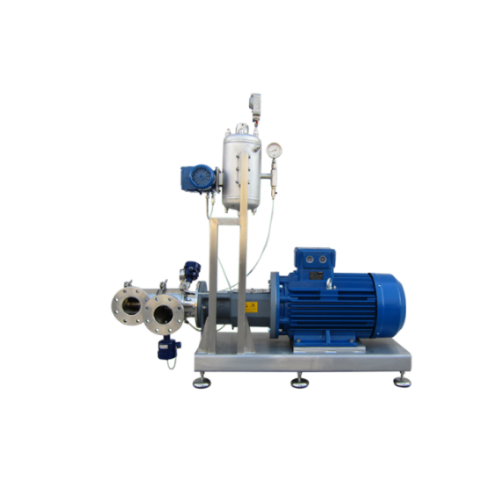

The LIVAK in-line mixer from Vak Kimsa offers a versatile solution for your industrial mixing needs, combining efficiency and precision. This equipment is designed to expertly address the challenges of mixing and emulsifying both liquid-liquid and solid-liquid formulations, making it ideal for use across chemical, cosmetics, food, and pharmaceutical industries. It operates using a sophisticated mixing mechanism, capable of handling varied product viscosities and concentrations up to 80%, and providing a flow rate of up to 90,000 liters per hour, making it suitable for both batch and continuous processing.
With pressurization and lubrication circuits for mechanical seals and ATEX certification for use in explosive atmospheres, the LIVAK is engineered for demanding operational environments. Integration into existing systems is seamless due to its capability for recirculation on one or several tanks, and it boosts efficiency without the need for significant modifications. Available in both industrial and sanitary finishes, and designed according to EHEDG standards, this mixer adapts to both clean and controlled environments, effectively reducing energy consumption through efficient motor control. Compatible with a range of materials, such as stainless steel options for corrosion resistance, the LIVAK mixer offers easy maintenance with its integrated cleaning protocols and customizable engineering support, ensuring it meets the specific needs of your production line.
Benefits
- Enhances mixing consistency and product quality with efficient emulsification and dispersion capabilities.
- Boosts existing production capacities without extensive modifications through recirculation integration.
- Ensures safe operation in explosive environments with ATEX-certified design.
- Reduces energy costs via optimized motor control, improving overall operational efficiency.
- Adapts to diverse industrial needs with customizable configurations and robust material options.
- Applications
- Biotechnology,Liquid formulations,Fine chemicals,Detergents,Food industry,Cosmetics,Biopharmaceuticals,Pharmaceuticals
- End products
- Biologics,Fermentation broths,Chemical additives,Beverage emulsions,Facial creams,Liquid soap formulations,Tablets,Laundry detergents
- Steps before
- Drying,Grinding,Purification
- Steps after
- Emulsification,Packing,Sterilization
- Input ingredients
- liquid components,powdered solids,crystalline solids,granulated solids
- Output ingredients
- air-free emulsions,small drop size,high stability emulsions
- Market info
- Vak Kimsa is known for manufacturing high-quality, engineered-to-order industrial equipment, specializing in dosing and pumping solutions for various sectors, including food and chemical industries. They are reputed for their innovation, customization, and reliability.
- Solids Concentration
- ≤ 80%
- Product Viscosity
- High-Medium-Low
- Mixing Flow Rate
- ≤ 90,000 l/h
- LIVAK Power (kW)
- 0.55 ÷ 55
- Liquid Connection (DN)
- 15 ÷ 150
- Maximum Mixing Flow (l/h)
- 500 ÷ 90,000
- Dimensions (H x L x F in mm)
- 250 x 400 x 380 ÷ 800 x 2200 x 680
- Pressurization and Lubrication Circuit
- Included
- ATEX Certification
- Directive 2014/34/EU
- Continuous Dosing
- Yes
- Working Mechanism
- In-line Mixing
- Integrated Steps
- Liquid-Liquid and Solid-Liquid Mixing
- Batch vs. Inline Flow
- Batch or Inline Continuous
- Pressurization and Lubrication Circuit
- For Mechanical Seal
- Automation Level
- Manual / PLC
- Recirculation
- On One or Several Tanks
- CIP/SIP
- CIP Supported
- Component Addition
- Solid Addition to Tank
- Emulsifier
- Produces Air-free Emulsions
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- High Viscosity Tolerance
- High-Medium-Low
- Compatibility with Solids
- Powdered,crystalline or granulated solids
- Mixing type
- Liquid-liquid / Solid-liquid
- Use in Industries
- Chemical / Cosmetic / Biotechnology
- ATEX certification
- Directive 2014/34/EU
- Machine Footprint
- Various dimensions based on type (e.g.,LIVAK 00,LIVAK 01)
- Tank Shape
- Cylindrical
- Feed Method
- Inline addition of liquids and solids
- Discharge Method
- Recirculation on the tank
- Compact Footprint
- Designed for inline mixing
- Control panel type
- Electrical cabinet
- Certification
- ATEX certified
- Finish Type
- Industrial / Sanitary Finish
- Installation Mode
- Recirculation over the tank
- Integration possibilities
- Continuous operation,existing system enhancement
