Hygienic powder filling system for low throughput

Ideal for compact production facilities, this filling system efficiently handles low-capacity powder bagging, ensuring minimal contamination and reduced operating costs with its automated, enclosed design.

Fills and Seals Powder Bags Efficiently

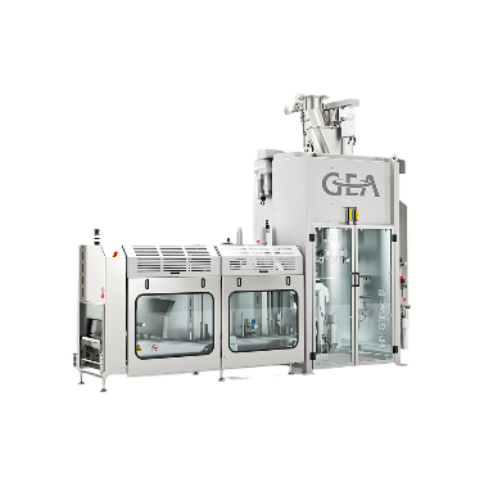

The HYGiPac R1 from GEA is a compact, limited intervention powder bag filler designed to meet the needs of food, pharmaceutical, and chemical powder processing facilities. This advanced system minimizes space requirements while ensuring product safety through fully automated bag handling and sealing processes. With a throughput capacity of up to 3 metric tonnes per hour, it expertly manages operations ranging from filling to bag sealing. Using bottom-up filling technology, the HYGiPac R1 reduces product contamination risk and eliminates the need for manual intervention by securely managing bags throughout the process. This PLC-controlled system allows for recipe-based adjustments, adapting quickly to varying product types and bag sizes. Constructed from durable stainless steel, it offers reliability and ease of maintenance, while supporting integration with existing line equipment, such as automatic bag depalletizing and palletizing systems. The HYGiPac R1 complies with industry standards for hygiene and efficiency, making it an ideal choice for manufacturers focused on maintaining high safety and quality standards.

Benefits

  • Optimizes plant floor space with its compact design, lowering facility overhead.
  • Enhances product safety by preventing contamination through fully automated, enclosed operations.
  • Decreases labor costs by eliminating manual handling with automated bag management.
  • Increases operational efficiency with quick adjustments tailored to specific powders and bag sizes.
  • Minimizes maintenance costs due to durable stainless-steel construction.

General


Applications
Nutraceutical powders,Chemical powders,Food powders,Dairy powders,Pharmaceutical powders
End products
Baking mixes,Infant formula,Instant soup powders,Vitamin supplements,Milk powder,Whey protein concentrate,Protein powder,Cleaning agents,Detergent powders,Pharmaceutical excipients,Dietary supplements
Steps before
Drying,Purification,Grinding
Steps after
Sealing,Palletizing,Packing
Input ingredients
powder
Output ingredients
filled bags,sealed bags
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
3 metric tonnes/hr
Filling Method
Bottom up filling technology
Automation
Automated machine adjustment via recipe system
Bag Control
Bag top positively held during entire filling and closing process
Enclosed filling area
Fully enclosed to prevent dust migration
Material
Stainless steel
Space requirement
Reduced footprint
Bag type
Stack loaded onto infeed conveyor
De-couple system
Transfer to heat sealer eliminating need for bag top leveling
Modified atmosphere capable
Yes
Automatic Bag Handling
Yes

Operating Characteristics


Working Mechanism
Automatic bag handling,filling,and closing
Integrated Steps
Automatic feeding,filling,sealing,and palletizing
Batch vs. Continuous Operation
Batch
Automation Level
Automated with recipe system
Limited Intervention Design
Operator exclusion,reduced risk of contamination
Compact Footprint
Space-saving design
Space Utilization
Reduced building size requirements
Product Safety
Fully enclosed to prevent contamination
Operator Safety
Automatic operation to eliminate manual handling
Enclosed Filling Area
Dust migration control
Bag Handling Control
Total control of bag during operation
Automated Adjustments
Machine adjustment via recipe system

Material Compatibility


Cleanability
Stainless steel design
Corrosive resistance (e.g. acids)
High resistance due to stainless steel
Biological compatibility
Enclosed design to prevent contamination
Abrasion resistance
Stainless steel components
Density/particle size
Suitable for various powder densities and sizes

Physical Characteristics


Machine footprint
Compact
Construction material
Stainless steel
Shape
Enclosed design
Feed method
Automatic infeed conveyor
Discharge method
Automatic bag transfer
Size
Limited space requirement
Footprint
Reduced
Bag control
Positive hold during process

Custom Options


Compact design
Reduced space requirement
Integration possibilities
Automated machine adjustment via recipe system
Bag type control
Bag top positively held during filling and closing
Automation augmentation
Provision for Automatic Bag De-palletizing System
Operator exclusion features
Automatic bag handling and filling
Bag decoupling system
Transfer of the bag to the heat sealer
