Hygienic pipeline product recovery system

Efficiently recover valuable residuals from pipelines while streamlining your cleaning-in-place processes with this advanced product recovery system, ideal for managing viscous media and high-value formulations.

Recovers and Cleans Pipelines Efficiently

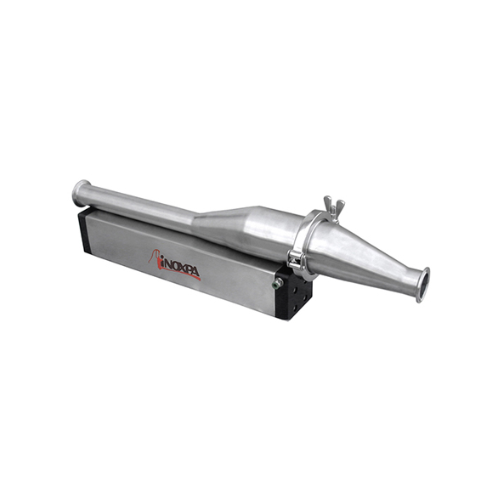

The SteriPig Product Recovery System from INOXPA is designed to revolutionize the recovery and cleaning processes in your pipeline operations. By employing a hygienic PIG—and propelled by compressed air—the system ensures maximum retrieval of residual high-value products, such as pharmaceutical gels and cosmetic creams, minimizing waste and optimizing pipeline cleanliness.

This system is especially beneficial for viscous media, effectively recovering and preparing pipelines for CIP without introducing contaminants. Its ability to handle complex media like ointments and emulsions is notable, positioning it as indispensable for pharmaceutical, cosmetic, and even food and beverage industries.

With connections ranging from 1 ½” to 3″ and a hygienic design in accordance with EHEDG specifications, SteriPig offers wide adaptability for various pipeline requirements. Featuring automatic butterfly valves and a control panel for automation, it seamlessly integrates into existing production lines, ensuring continuous, high-speed operations while promoting efficient use of resources.

Constructed from durable materials like AISI 316L and AISI 304 stainless steel, the SteriPig system is available in a range of materials to suit diverse process needs, including options with EPDM and Viton spheres. It adheres to stringent FDA standards, ensuring complete safety and efficiency in sensitive applications.

Furthermore, the system supports customization with various connection types and gasket materials, providing tailored solutions to meet specific operational demands. Designed for minimal maintenance through integrated CIP capabilities, the SteriPig system reduces downtime and enhances the productivity of your production environment.

Benefits

  • Minimizes product loss by effectively recovering high-value viscous media from pipelines.
  • Reduces cleaning time and resource use with integrated CIP, enhancing operational efficiency.
  • Customizable material options ensure compatibility with various product types and regulatory standards.
  • Seamless integration into existing processes supports continuous, high-speed operations.
  • Enhances environmental compliance by reducing waste sent to sewage treatment plants.

General


Applications
Gels,Cosmetics,Viscous media,Ointments,Emulsions,Creams,Pharmaceuticals
End products
Moisturizing creams,Topical analgesic creams,Industrial lotions,Cosmetic emulsions,Hair styling gels,Medicinal ointments,Pharmaceutical gels,Anti-aging creams
Steps before
Emulsification,Mixing,Blending
Steps after
CIP (Clean-In-Place),Sterilization
Input ingredients
viscous media,gels,creams,ointments,emulsions,pharmaceutical products,cosmetic products
Output ingredients
recovered product,pipeline-ready for CIP process,reduced sewage discharge
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Material in Contact
AISI 316L
Other Metal Parts
AISI 304
PIG Material
Silicone
Gasket Material
EPDM according to FDA 177.2600
Surface Finish
Ra ≤ 0.5 µm
Size Range
1 ½" (DN 40) to 3" (DN 80)
Automation
Various levels of automation
Pass Through Bends
1.5D
Connections
Clamp OD (standard),options
Spheres Material
EPDM and Viton®
Gaskets Options
Silicone,PTFE,Viton®
Compressed Air Usage
Propellant

Operating Characteristics


Working Mechanism
Magnetically positioned PIG sphere
Flow Process
Batch / Inline
Cleaning Method
CIP (Clean-in-Place)
Automation Level
Manual / PLC / SCADA
Changeover Time
Rapid switching
Viscous Media Handling
Gels,creams,ointments
Energy and Water Efficiency
Reduced fluid to sewage treatment
CIP/SIP Capabilities
Yes,integrated with system

Product type Characteristics


Product types
Gels,creams,ointments,emulsions

Physical Characteristics


PIG size range
1 ½" (DN 40) to 3" (DN 80)
Material of PIG
Silicone
Metal parts material
AISI 316L (contact),AISI 304 (other)
Gasket material
EPDM according to FDA 177.2600
Internal surface finish
Ra ≤ 0,5 µm
Connection types
Clamp OD (standard),DIN,RJT,SMS
Valve type
Butterfly valves,KH three-way valves

Custom Options


Size Range
From 1 ½" (DN 40) to 3" (DN 80)
Sphere Material
Silicone,EPDM,Viton®
Gasket Material
EPDM,Silicone,PTFE,Viton®
Internal Surface Finish
Ra ≤ 0,5 µm
Connections
DIN,RJT,SMS,Clamp OD
Automation Level
Various levels of automation
