Hydrocolloid powder dispersion unit

Achieve seamless dispersion of hydrocolloid powders in liquids, eliminating common issues like lumping and inconsistent texture with an advanced mixing solution that enhances product stability and quality.

Disperses and Blends Hydrocolloids into Solutions

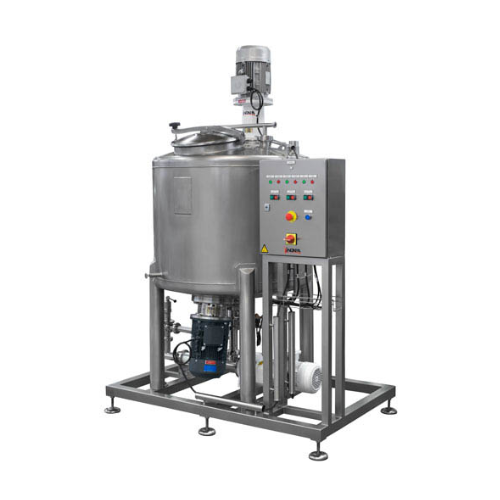

The Mixing Unit CMC from INOXPA is engineered to address the challenges of fast and uniform dispersion of hydrocolloid powders into liquids. Designed with a skid-mounted layout, the system utilizes a rotor-stator mixer and cowles-type agitator to ensure efficient shearing and mixing. It is ideal for creating smooth and stable textures in food products such as cream-based soups and sauces, as well as cosmetics like lotions and shampoos.

This unit handles viscosities up to 5000 cP, with customization available for more viscous solutions, making it versatile for various hydrocolloid applications, including CMC gels and xanthan gum thickeners. Equipped with a heating jacket option for high powder percentages, it aids in viscosity control. Constructed from AISI 316L stainless steel with EPDM gaskets, it is well-suited for hygienic operations, featuring Clean-in-Place (CIP) systems and safety sensors.

Automation is seamlessly integrated with an electrical control panel, and options for further customization include anchor-type agitators and skid-mounted discharge pumps. The mixing unit is designed for energy efficiency, ensuring effective dispersion while maintaining low operational costs.

Benefits

  • Enhances product quality with uniform dispersion, ensuring consistent texture and stability.
  • Decreases production time through high-speed mixing, improving operational efficiency.
  • Lowers maintenance demands with integrated Clean-in-Place (CIP) systems, reducing downtime.
  • Optimizes energy use via customizable mixing configurations, minimizing operating costs.
  • Adapts to various production needs with flexible design options and material compatibility.

General


Applications
Shampoos,Hydrocolloids,Cosmetics,Food products,Lotions,Stabilizers,Creams,Thickeners
End products
Guar gum sauces,Face creams,Cream-based soups,Pectin jellies,Carboxymethylcellulose (cmc) gels,Stabilizing agents for beverages,Anti-dandruff shampoos,Xanthan gum thickeners,Volumizing shampoos,Body lotions
Steps before
Ingredient Weighing,Powder Grinding,Dry Blending,Material Inspection
Steps after
Product Homogenization,Cooling,Pasteurization,Quality Testing
Input ingredients
carboxymethylcellulose (CMC),flours,carbopol,pectin,guar gum,xanthan gum,water,hydrocolloid powders
Output ingredients
colloidal solution,homogeneous mixture,thickened products,stabilized formulations,suspended solutions
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Viscosity
up to 5000 cP
Material of Construction
AISI 316L / AISI 304L
Agitator Type
Vertical agitator with cowles propeller
Shear Mixer
High-shear rotor-stator mixer
Tank Type
Vertical unit with heating jacket (optional)
Pressure Safety
Pressure-vacuum valve for tank protection
Cleaning Method
CIP diffuser balls
Level Control
Maximum and minimum level probe
Heating System
Optional hot water system with electric resistance
Gasket Material
EPDM
Automation
Electrical control panel
Pump Options
Skid-mounted discharge pump

Operating Characteristics


Working mechanism
Rotor-stator mixer
Integrated steps
High-shear mixing
CIP/SIP
CIP diffuser balls
Batch vs. continuous operation
Batch
Hot water usage
Optional heating jacket
Viscosity handling
Up to 5000 cP
Automation level
Manual control panel
Powder circulation
Cowles-type agitator
Safety features
Pressure-vacuum valve

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank Shape
Vertical
Tank Material
AISI 316L Stainless Steel
Agitator Type
Cowles propeller
High-Shear Mixer
bottom of the tank
Manhole
Powder adding and inspection with safety sensors

Custom Options


Control panel type
Electrical control panel
Agitator type
Cowles-type / Anchor-type
Tank type
Jacketed and insulated tank
Pump type
Product discharge pump / Skid-mounted discharge pump
Heating option
Hot water generating system
Agitation element
Customizable according to client’s requirements
