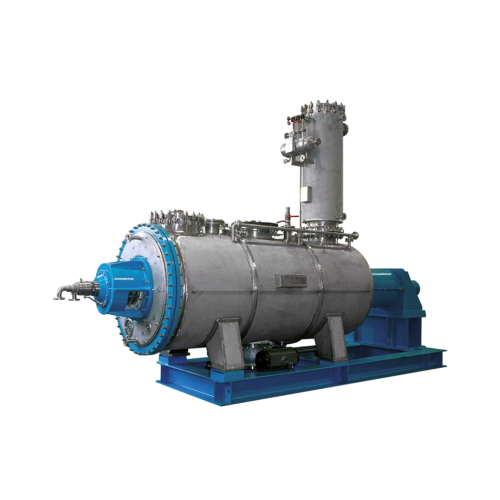

Horizontal vacuum paddle dryer for bulk production facilities

Achieve precise moisture control in powders with a versatile machine designed to handle mixing, reacting, and drying operations, ensuring uniform results in high-capacity batch processes.

Mixes, Reacts, Precipitates, and Dries Industrial Materials

The COMBER Termomix® Series TM 1000 – TM 40000 from the HEINKEL Group offers a robust solution for high-capacity industrial applications requiring precise batch processing. This horizontal vacuum paddle dryer/reactor excels in mixing, reacting, precipitating, and drying, thanks to its innovative design that incorporates an agitator supported on both ends. This configuration ensures efficient mixing characteristics, augmented by externally interchangeable stuffing boxes or mechanical seals. With a substantial heating area, the Termomix® facilitates outstanding heat transfer across vessel walls, ends, and agitator components, making it ideal for producing active pharmaceutical ingredients, specialty chemicals, and food additives. The equipment supports applications where maintaining chemical integrity and energy efficiency is crucial, available in materials like stainless steels and nickel-based alloys for corrosion resistance. Designed to operate at temperatures between -10 to 150°C and pressures from full vacuum to 6.5 psig, it meets rigorous safety and compliance standards, including PED and ASME certifications. Integration with existing production lines is smooth, courtesy of its PLC-controlled system featuring a user-friendly HMI and DCS interface. Customizable options and extensive engineering support ensure the Termomix® adapts to your production needs, while features like CIP systems streamline maintenance and cleaning.

Benefits

  • Optimizes processing efficiency by integrating mixing, reacting, precipitating, and drying in a single unit.
  • Enhances product quality and uniformity with precision-controlled heating and agitation.
  • Minimizes operational costs with energy-efficient heating and reduced maintenance downtime.
  • Ensures compliance with industry standards, making it suitable for pharmaceutical and chemical manufacturing.
  • Increases operational versatility with adaptable material options for various corrosive environments.

General


Applications
Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
End products
Active pharmaceutical ingredients,Specialty chemicals,Food additives,Coating agents for surfaces,Powdered metal alloys,Flavor compounds
Steps before
Mixing,Reaction,Precipitation
Steps after
Vacuuming,Sampling,Heating and Cooling,Dust Filtering
Input ingredients
bulk production materials,industrial chemicals,pharmaceutical ingredients,fine chemicals,food product ingredients,metal processing materials,surface coating materials
Output ingredients
dried pharmaceutical substances,dried chemicals,processed fine chemicals,dried food products,recycled metal materials,coated surfaces
Market info
Heinkel (Comber) is renowned for manufacturing industrial engineered-to-order equipment, specializing in filtration, centrifugal, and mixing solutions. They are recognized for their precision engineering, quality, and ability to tailor solutions for pharmaceutical and chemical industries.

Technical Specifications


Usable volume
1,000 – 40,000 liters
Design temperature
-10 to 150°C (14 to 302°F) or per requirements
Design pressure
-1 to +0.45 barg (FV to 6.5 psig) or per requirements
Heated areas
All product wetted components,including agitator shaft arms and blades
Sealing materials
PTFE gaskets,O-Rings in FFKM or FEP encapsulated
Control system
Control cabinet with PLC,HMI with touch screen,MCC,interface for DCS
Heating area
Large heating area for excellent heat transfer

Operating Characteristics


Automation Level
PLC / HMI with touch screen
Batch vs. Continuous Operation
Batch
Heating Efficiency
Large heating area for excellent heat transfer
Mixing Characteristics
Agitator supported on both ends
Pressure Management
-1 to +0.45 barg

Material Compatibility


Corrosive resistance (e.g. acids)
Nickel based alloys,Stainless steels
Cleanability
Stainless steels
Sealing materials
PTFE gaskets,O-Rings in FFKM or FEP encapsulated


EU-Type Examination Certificate
INERIS 2014/34/EU Directive
UL Approval
Class 1,Division 1 or 2,Groups C,D environment
Pressure Equipment Directive (PED)
2014/68/EU
ASME Pressure Vessel Code
Section VIII,U-Stamp

Physical Characteristics


Machine footprint
Depends on model size (TM 1000 - TM 40000)
Tank shape
Horizontal
Discharge method
Top/side mounted port with sight glass
Machine size
1000 – 40,000 liters usable volume
Material of construction
Stainless steel,Nickel alloys,Titanium

Custom Options


Control panel type
PLC,HMI with touch screen
Heating area
Large,includes vessel walls,ends,and agitator
Agitator type
Supported on both ends,with interchangeable stuffing boxes or mechanical seals
Material options
Stainless steel,Hastelloy C 22,Alloy 59,Titanium
Sealing materials
PTFE gaskets,O-Rings in FFKM or FEP encapsulated
